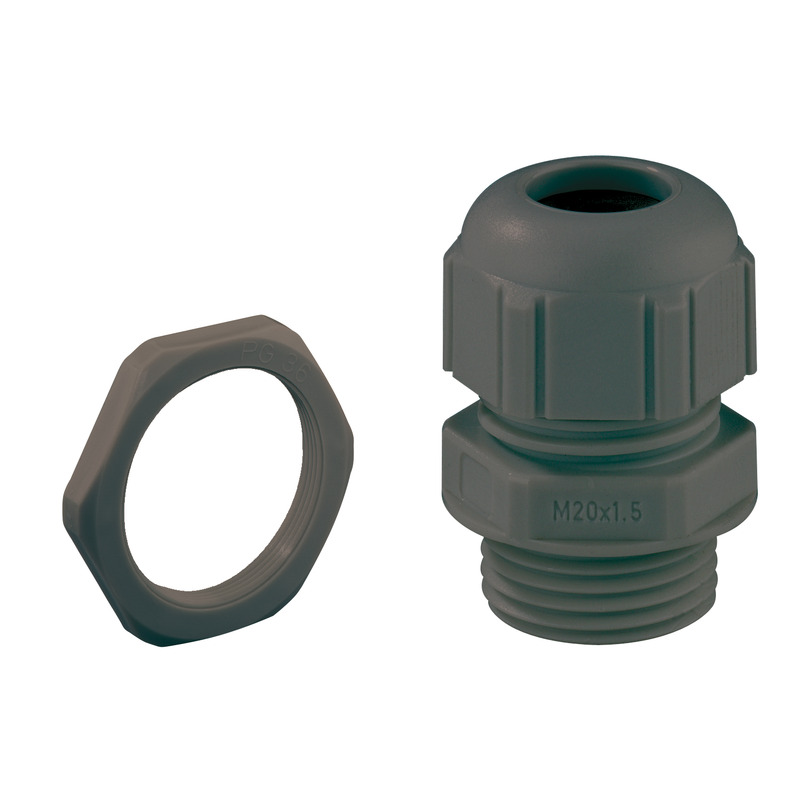

Cable gland
Productnumber: 22702001 | Dimensions: 26,5 x 26,5 x 36 mm
Cable gland, IP68/IP69*, with strain relief, polyamide, M_ x 1.5 mm, with locknut, black
(*IP69 in conjunction with GEOS series empty enclosures and cabinets and Abox Pro series connection boxes)
Sealing range 6 - 12 mm, Thread length 9 mm
| Type of protection | IP68IP69 |
|---|
| Accessory colour | deep black |
|---|
| Width | 26.5 mm |
|---|---|
| Length | 26.5 mm |
| Height | 36 mm |
| Nominal size | M20 |
| Weight | 0.012 kg |
| UV-resistant | yes |
|---|---|
| Halogen free | yes |
| Flammability class according with UL94 | V2 |
| Glow-wire flammability according to EN 60695-2-11 | 850 °C |
| for sealing range min | 6 mm |
|---|---|
| for sealing range max | 12 mm |
| Installation location | unprotected outdoor areas |
|---|
| EAN | 4013902932542 |
|---|---|
| Packing Unit Code | C62 |
| ETIM Class | EC000441 |
| Custom tariff number | 39269097 |
| Accessory material | Polyamide |
|---|
| CAD-Data | Download 3D-CAD-Data |
|---|
