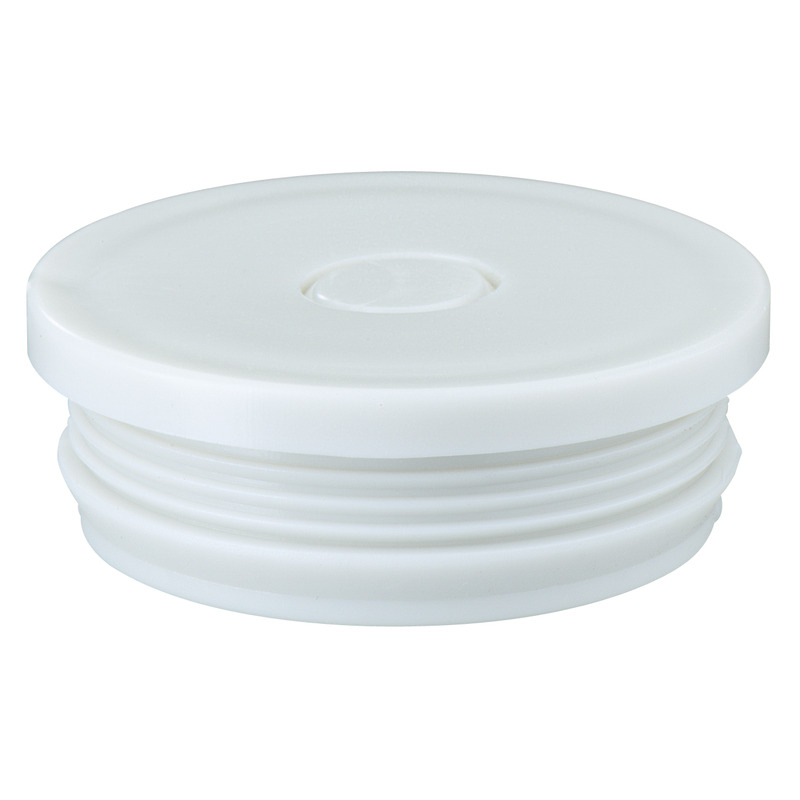

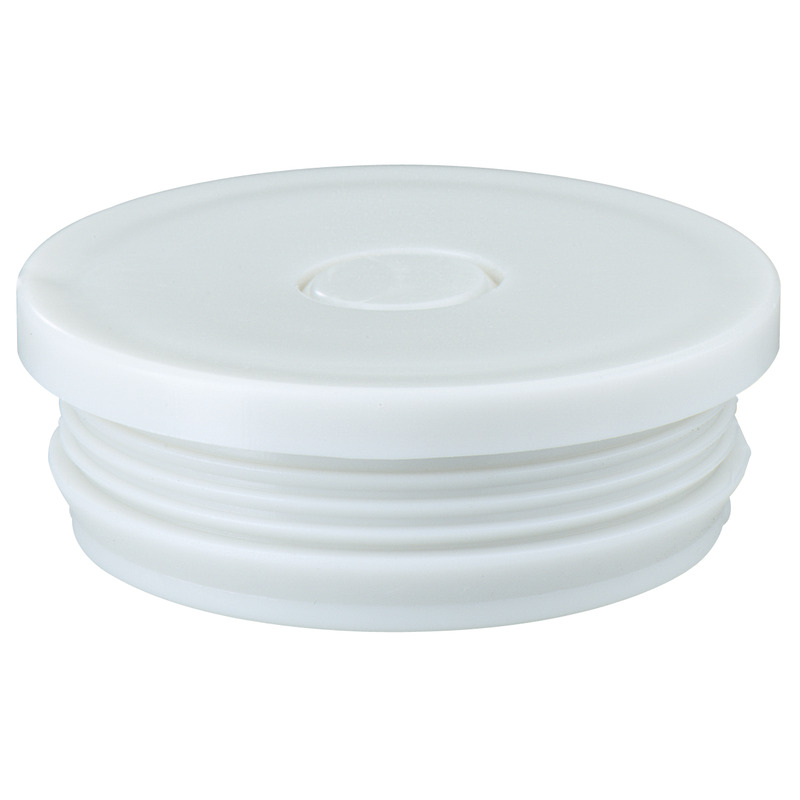

Sealing plugs
Productnumber: 23142501 | Dimensions: 29,5 x 29,5 x 14,1 mm
Sealing plugs, IP55, with closed sealing membrane, thermoplastic elastomer (TPE), for wall thickness 1.5 - 4.0 mm, for sealing of metric enclosure apertures that are not required, grey
Sealing range 9 - 16 mm
| Type of protection | IP55 |
|---|
| Accessory colour | light grey |
|---|
| Width | 29.5 mm |
|---|---|
| Length | 29.5 mm |
| Height | 14.1 mm |
| Weight | 0.0021 kg |
| Halogen free | yes |
|---|
| for sealing range min | 9 mm |
|---|---|
| for sealing range max | 16 mm |
| Installation location | Indoors |
|---|
| EAN | 4013902852178 |
|---|---|
| Packing Unit Code | C62 |
| ETIM Class | EC000451 |
| Custom tariff number | 39269097 |
| CAD-Data | Download 3D-CAD-Data |
|---|
