Befestigungsset KTB 1 (89600901) Spelsberg – general accessories: Spelsberg
new

Fastening parts kit

KTB 1

Productnumber: 89600901 | Dimensions: 17 x 30 x 14 mm

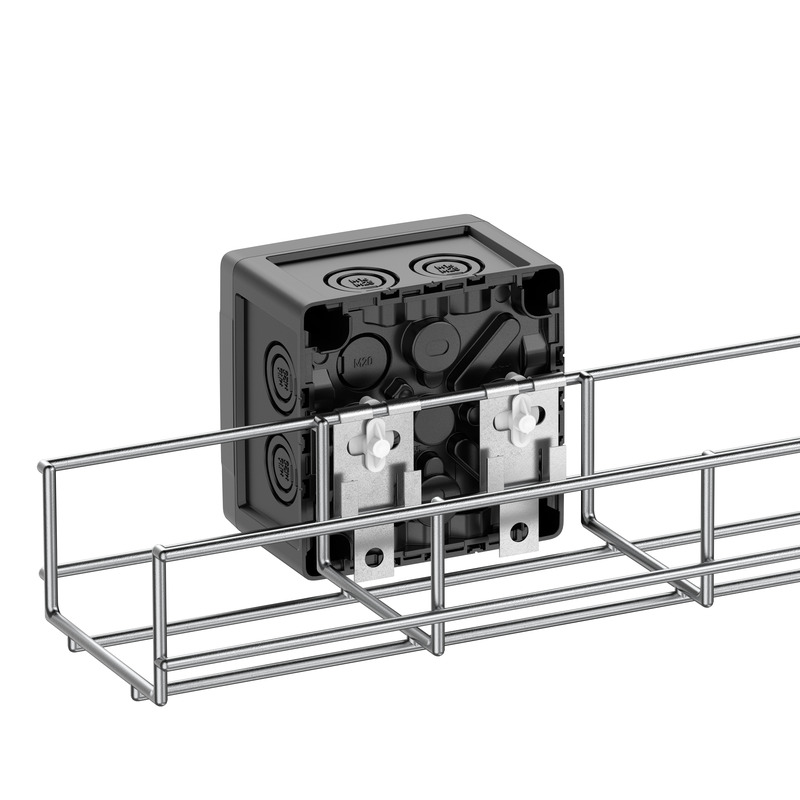

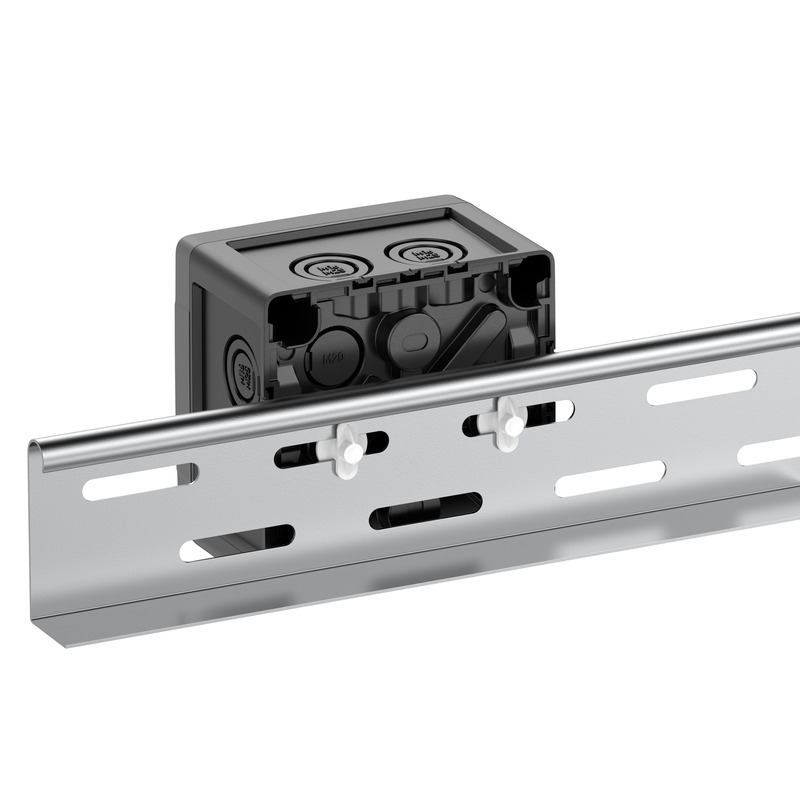

Fixing element for mounting of enclosures on cable tray systems with elongated hole width of 7 mm and mesh cable trays with Schnabl GTH 9001 mounts. With pan head screw 4 x 12, material PA6 grey, Set = 10 pieces

Dimensions

Width 17 mm
Length 30 mm
Height 14 mm
Weight 0.028 kg

mechanical properties

Load capacity 3 kg
Torque 1 Nm

Sales Information

EAN 4013902686537
Packing Unit Code C62
ETIM Class EC002498
Custom tariff number 39269097

Download Data Sheet

Download Data Sheet

Installation instructions

Assembly instruction DE/EN pdf (751 KB)

Dimensioned drawing

Dimensional drawing dxf (830 KB)
Dimensional drawing pdf (185 KB)
Dimensional drawing dwg (199 KB)

Certificate

CE Declaration DE/EN/FR pdf (135 KB)
CE Declaration DE/EN/PL pdf (138 KB)
UKCA Declaration EN pdf (165 KB)

CAD-Data

CAD-Data Download 3D-CAD-Data
