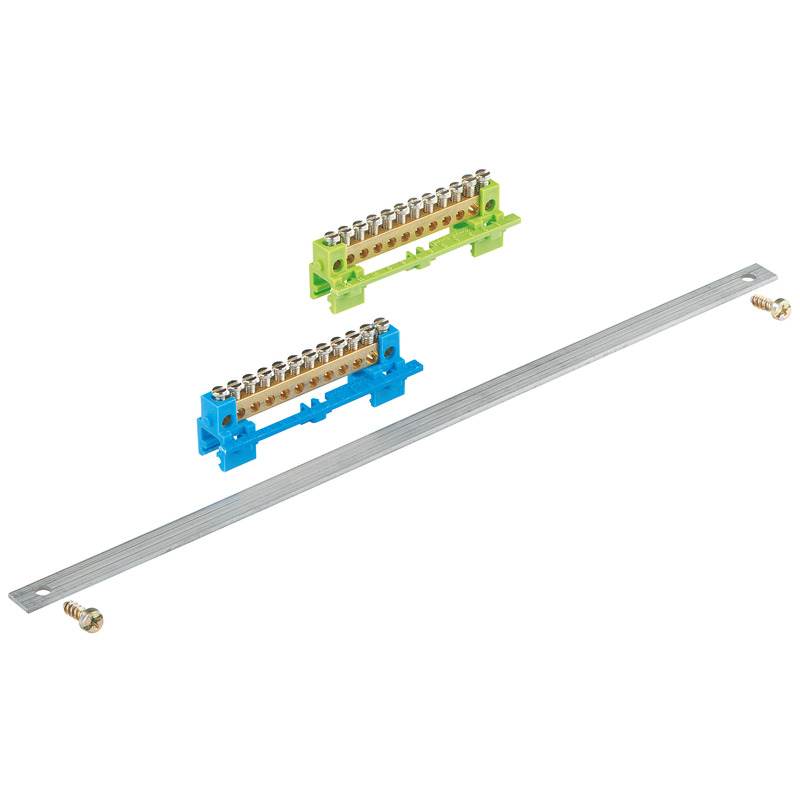

PE/N terminal for installation in GTA distribution boards as additional terminals or for replacement
2 x 12-pole, 6/16 mm², for GTA 580
PE/N terminal
PNS 124
Productnumber: 07412401 | Dimensions: 20 x 340 x 33,5 mm
electrical characteristics
| Rated operating voltage AC | 400 V |
|---|---|
| Rated current | 76 A |
| Number of poles | 2 |
| shockproof | No |
| Connection 1: Connection type | Screws |
| Connection 1: Clamping points per pole | 12 |
| Connection 1: Suitable for Cu conductors | 1 |
| Connection 1: Connectable conductor cross-section, single-wire (min) | 6 mm² |
| Connection 1: Connectable conductor cross-section, single-wire (max) | 16 mm² |
| Connection 2: Connection type | Screws |
| Connection 2: Connectable conductor cross-section, single-wire (min) | 1.5 mm² |
| Connection 2: Connectable conductor cross-section, single-wire (max) | 6 mm² |
Dimensions
| Width | 20 mm |
|---|---|
| Length | 340 mm |
| Height | 33.5 mm |
| Weight | 0.136 kg |
Material characteristics
| Glow-wire flammability according to EN 60695-2-11 | 960 °C |
|---|
mechanical properties
| Connection 1: Tightening moment | 1.4 Nm |
|---|
Sales Information
| EAN | 4013902051434 |
|---|---|
| Packing Unit Code | C62 |
| ETIM Class | EC001284 |
| Custom tariff number | 85369010 |
Material
| Insulating body material | Thermoplastic |
|---|
