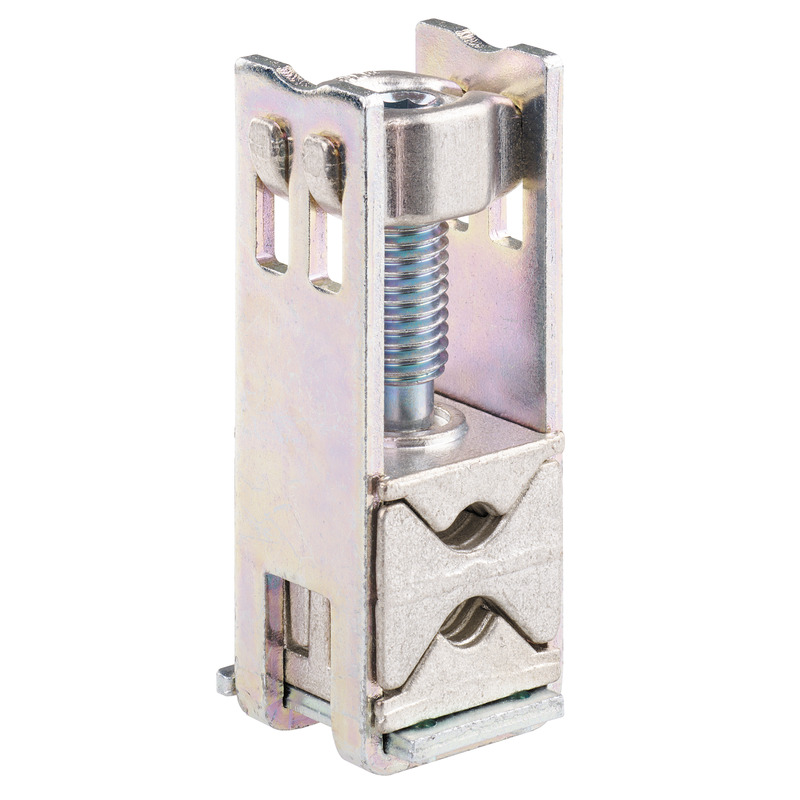

Sammelschienenklemmen SKL 092 (07509201) Accessories: Spelsberg

Busbar terminal

SKL 092

Productnumber: 07509201 | Dimensions: 30 x 36 x 106 mm

Busbar terminal, for rails 12 x 5 mm / 12 x 10 mm, for aluminium and copper conductors

for AL/CU conductors 1x (25-50)re, 1x (25-150)rm, 1x (50-150)se, 1x (35-150)sm, 2x (25-50)re, 2x (25-70)rm, 2x (50-70)se, 2x (35-70)sm

electrical characteristics

Max. conductor cross section 185 mm²
Number of poles 1
shockproof No
Connection 1: Connection type Screws
Connection 1: Clamping points per pole 1
Connection 1: Suitable for Cu conductors 1
Connection 1: Suitable for Al conductors 1
Connection 1: Connectable conductor cross-section, single-wire (min) 25 mm²
Connection 1: Connectable conductor cross-section, single-wire (max) 185 mm²
Connection 1: Connectable conductor cross-section, stranded (min) 25 mm²
Connection 1:Connectable conductor cross-section, stranded (max) 185 mm²

Dimensions

Width 30 mm
Length 36 mm
Height 106 mm
Weight 0.3238 kg

mechanical properties

Connection 1: Tightening moment 40 Nm

Sales Information

EAN 4013902897360
Packing Unit Code C62
ETIM Class EC000001
Custom tariff number 85369010

Download Data Sheet

Download Data Sheet

Certificate

UKCA Declaration EN pdf (48 KB)
CE Declaration DE/EN/FR pdf (217 KB)

Tender text

Similar products

Busbar terminal SKL 015

  • Dimensions : 25 x 30 x 83 mm
  • Productnumber: 07501501

for AL/CU conductors 1x (16-50)re, 1x (16-150)rm, 1x (50-150)se, 1x...



Busbar terminal, for rails 12 x 5 mm / 12 x 10 mm, for aluminium and copper conductors

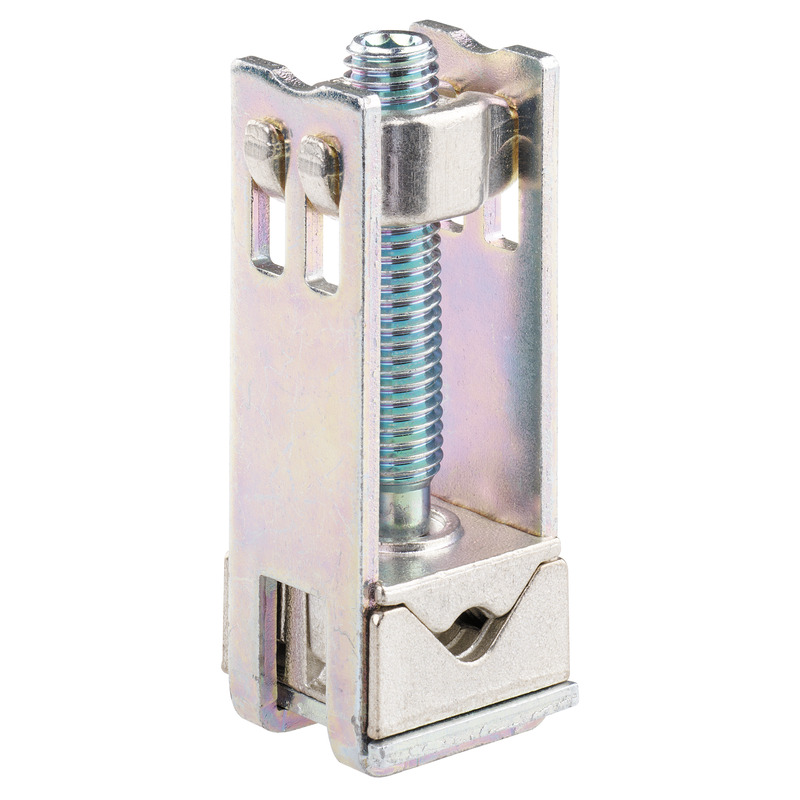

Busbar terminal SKL 024

  • Dimensions : 32 x 30 x 115 mm
  • Productnumber: 07502401

for AL/CU conductors 1x (35-50)re, 1x (35-240)rm, 1x (50-185)se, 1x...



Busbar terminal, for rails 12 x 5 mm / 12 x 10 mm, for aluminium and copper conductors

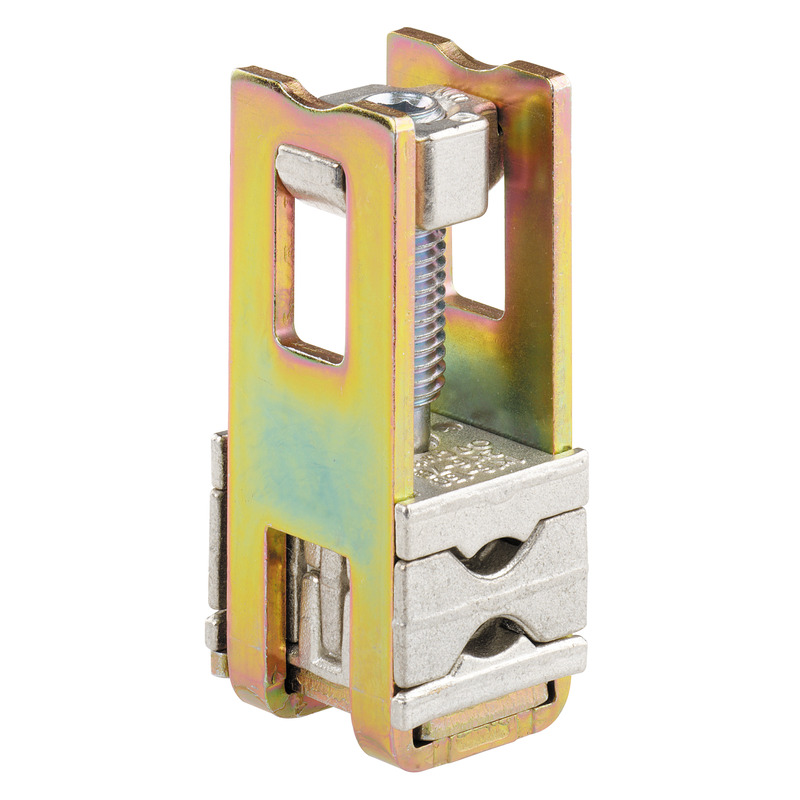

Busbar terminal SKL 052

  • Dimensions : 31 x 25 x 65 mm
  • Productnumber: 07505201

for AL/CU conductors 1x (16-50)re, 1x (16-95)rm, 1x (50-95)se, 1x...



Busbar terminal, for rails 12 x 5 mm / 12 x 10 mm, for aluminium and copper conductors
