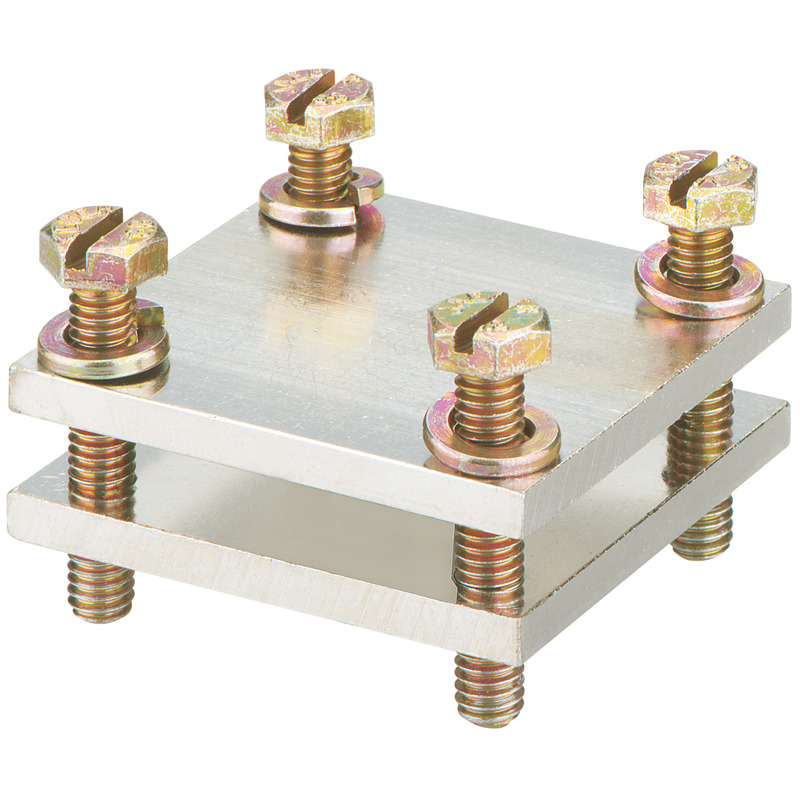

Busbar terminal, for large connection cross-sections, for copper rails 20 x 5 mm to 30 x 10 mm
Connection for flat copper, Terminal room 30 x 30 mm x 5 - 20 mm
Busbar terminal
SKL 333
Productnumber: 07533301 | Dimensions: 55 x 55 x 45 mm
electrical characteristics
| Number of poles | 1 |
|---|---|
| shockproof | No |
| Connection 1: Connection type | Screws |
| Connection 1: Clamping points per pole | 1 |
| Connection 1: Suitable for Cu conductors | 1 |
| Connection 1: Suitable for Al conductors | 1 |
Dimensions
| Width | 55 mm |
|---|---|
| Length | 55 mm |
| Height | 45 mm |
| Weight | 0.258 kg |
mechanical properties
| Connection 1: Tightening moment | 36 Nm |
|---|
Sales Information
| EAN | 4013902051991 |
|---|---|
| Packing Unit Code | C62 |
| ETIM Class | EC000001 |
| Custom tariff number | 85369010 |
