Bus bar terminals for copper rails 12/20/25/30 x 5 mm
Connection for Cu 16-120 mm², Flat copper 250 A

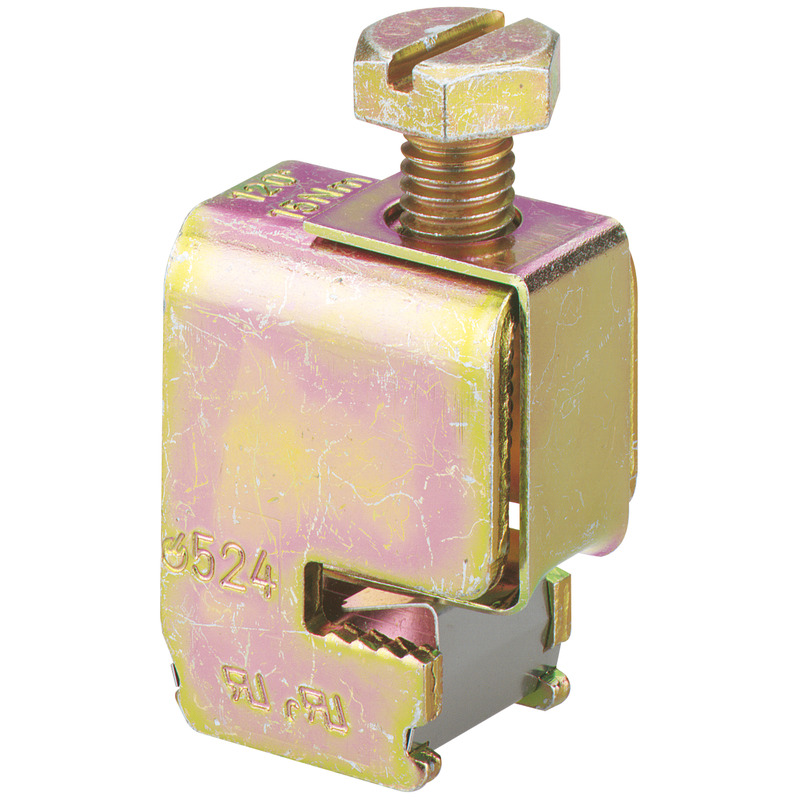

Busbar terminal
SKL 512
Productnumber: 07551201 | Dimensions: 23 x 29 x 46 mm
electrical characteristics
| Max. conductor cross section | 120 mm² |
|---|---|
| Rated current | 440 A |
| Number of poles | 1 |
| shockproof | No |
| Connection 1: Connection type | Screws |
| Connection 1: Clamping points per pole | 1 |
| Connection 1: Suitable for Cu conductors | 1 |
| Connection 1: Suitable for Al conductors | 0 |
| Connection 1: Connectable conductor cross-section, single-wire (min) | 16 mm² |
| Connection 1: Connectable conductor cross-section, single-wire (max) | 120 mm² |
| Connection 1: Connectable conductor cross-section, stranded (min) | 16 mm² |
| Connection 1:Connectable conductor cross-section, stranded (max) | 120 mm² |
Dimensions
| Width | 23 mm |
|---|---|
| Length | 29 mm |
| Height | 46 mm |
| Weight | 0.089 kg |
mechanical properties
| Connection 1: Tightening moment | 20 Nm |
|---|
Sales Information
| EAN | 4013902051939 |
|---|---|
| Packing Unit Code | C62 |
| ETIM Class | EC000001 |
| Custom tariff number | 85369010 |
