Padlock kit

VSG

Productnumber: 19010001 | Dimensions: 100 x 80 x 25 mm

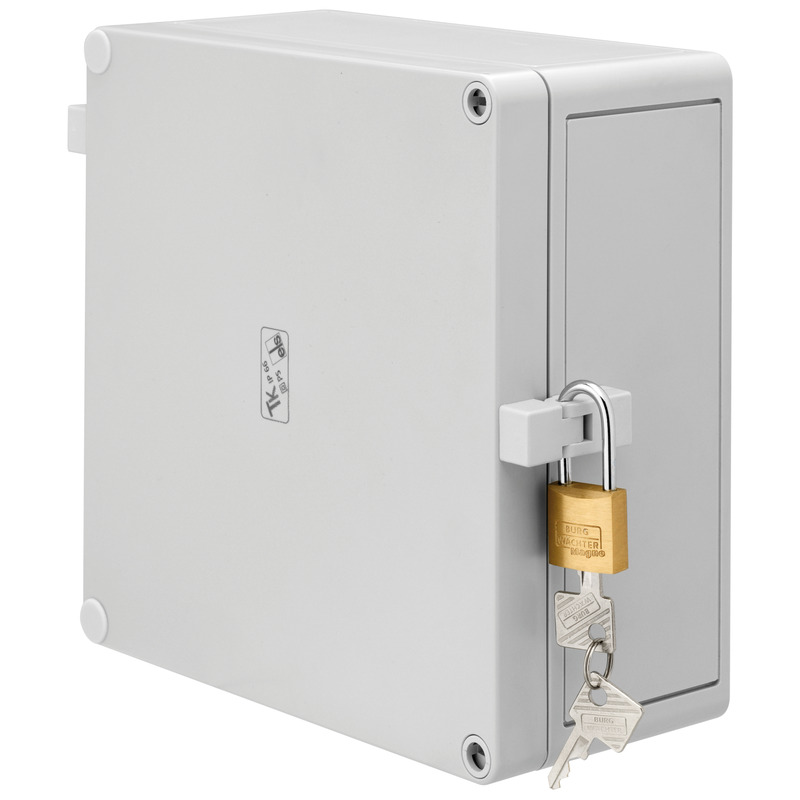

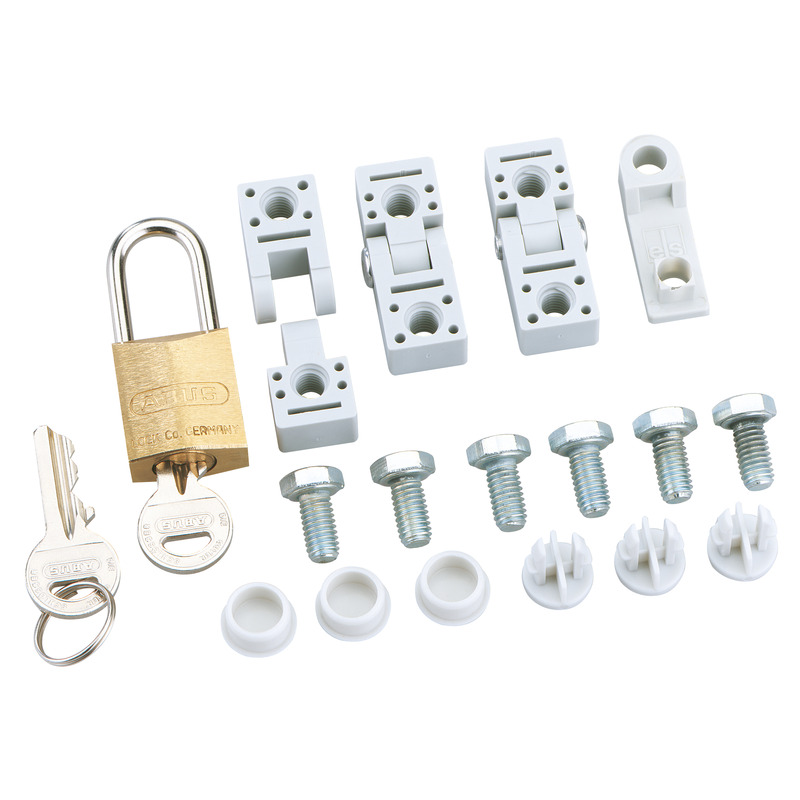

Padlock kit for upgrading the enclosure cover to lockable hinged door, incl. padlock, 2 hinges, fixing screws, cover plugs and drilling template

from TK PS/PC 1811 onwards and AKL/AKi 1

Dimensions

Width 100 mm
Length 80 mm
Height 25 mm
Weight 0.09 kg

mechanical properties

Type of accessory other

Ambient conditions

Installation location protected outdoor areas

Sales Information

EAN 4013902152872
Packing Unit Code C62
ETIM Class EC002287
Custom tariff number 83011000

Download Data Sheet

Download Data Sheet

Installation instructions

Assembly instruction DE/EN/FR/ES pdf (74 KB)

Tender text
