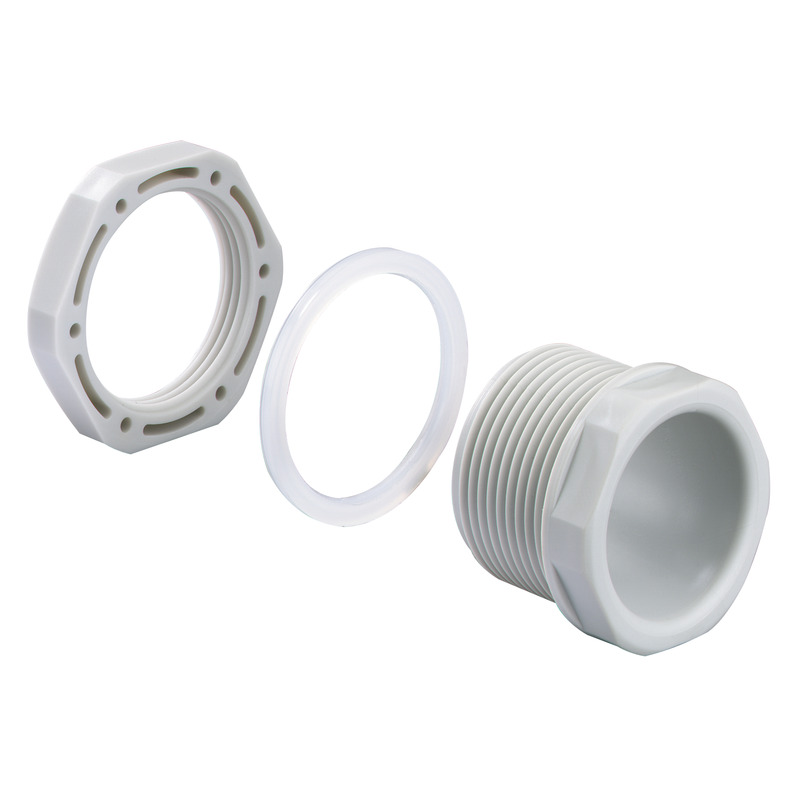

Combination set for connecting enclosures with metric entries, polystyrene, grey, complete with locknut and partition seal
Thread length 19 mm
Combi set
KS M25
Productnumber: 19202501 | Dimensions: 36 x 32 x 27 mm
electrical characteristics
| Type of protection | IP66 |
|---|
Colours
| Accessory colour | light grey |
|---|
Dimensions
| Width | 36 mm |
|---|---|
| Length | 32 mm |
| Height | 27 mm |
| Weight | 0.01 kg |
Material characteristics
| UV-resistant | no |
|---|---|
| Halogen free | yes |
mechanical properties
| Type of accessory | other |
|---|
Sales Information
| EAN | 4013902855476 |
|---|---|
| Packing Unit Code | C62 |
| ETIM Class | EC000451 |
| Custom tariff number | 39269097 |
Material
| Accessory material | Polyamide, glass-fibre reinforced |
|---|
CAD-Data
| CAD-Data | Download 3D-CAD-Data |
|---|
