Main cable junction terminal with cross-sectional area 1x25 mm² per pole and 2 outlets 16 mm²per pole, 1 x 25 mm² per pole and 2 outlets 16 mm² per pole, 4 outputs 16A mm² on fourth pole
4-pole - 25/16², 6x PE/N
This product is outdated.
expires on 31.12.2024

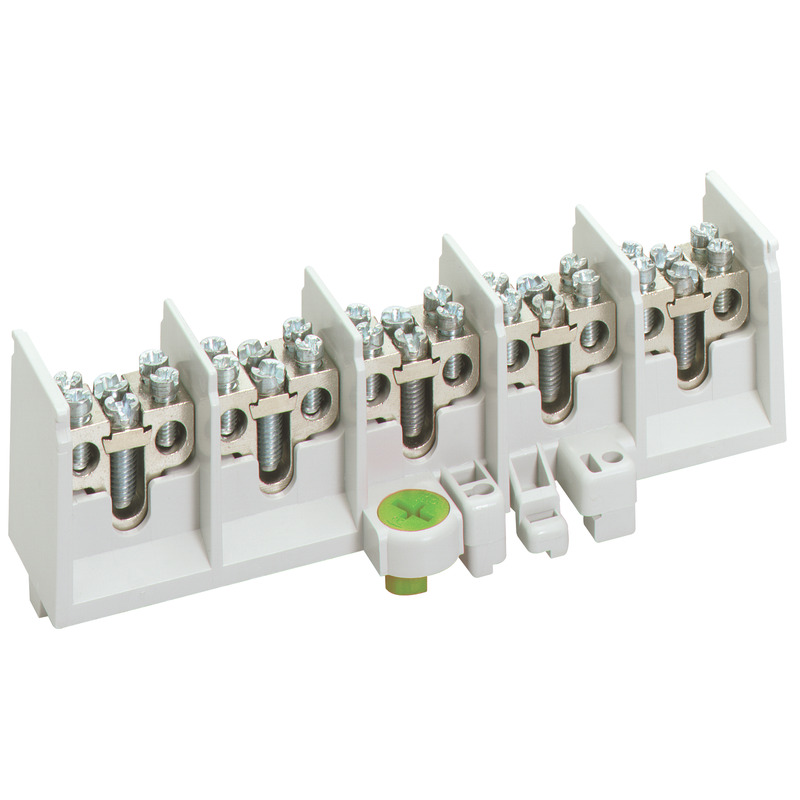

Main cable junction terminal
HA 25-46
Productnumber: 69142601
electrical characteristics
| Rated operating voltage AC | 400 V |
|---|---|
| Number of poles | 4 |
| Connection 1: Connection type | Screws |
| Connection 1: Suitable for Cu conductors | 1 |
| Connection 1: Connectable conductor cross-section, fine-wire with ferrule (min) | 2.5 mm² |
| Connection 1: Connectable conductor cross-section, fine-wire with ferrule (max) | 16 mm² |
| Connection 1: Connectable conductor cross-section, single-wire (min) | 1.5 mm² |
| Connection 1: Connectable conductor cross-section, single-wire (max) | 25 mm² |
| Connection 1: Connectable conductor cross-section, stranded (min) | 1.5 mm² |
| Connection 1:Connectable conductor cross-section, stranded (max) | 25 mm² |
| Connection 2: Connection type | Screws |
| Connection 2: Suitable for Cu conductors | 1 |
| Connection 2: Connectable conductor cross-section, fine-wire with ferrule (min) | 1.5 mm² |
| Connection 2: Connectable conductor cross-section, fine-wire with ferrule (max) | 10 mm² |
| Connection 2: Connectable conductor cross-section, single-wire (min) | 1.5 mm² |
| Connection 2: Connectable conductor cross-section, single-wire (max) | 16 mm² |
| Connection 2: Connectable conductor cross-section, stranded (min) | 1.5 mm² |
| Connection 2: Connectable conductor cross-section, stranded (max) | 16 mm² |
Dimensions
| Weight | 0.2743 kg |
|---|
Material characteristics
| Flammability class according with UL94 | V0 |
|---|---|
| Glow-wire flammability according to EN 60695-2-11 | 960 °C |
mechanical properties
| Connection 1: Tightening moment | 2.5 Nm |
|---|---|
| Connection 2: Tightening torque | 2.5 Nm |
Sales Information
| EAN | 4013902675753 |
|---|---|
| Packing Unit Code | PK |
| ETIM Class | EC000275 |
| Custom tariff number | 85369010 |
Material
| Insulating body material | Thermoplastic |
|---|
