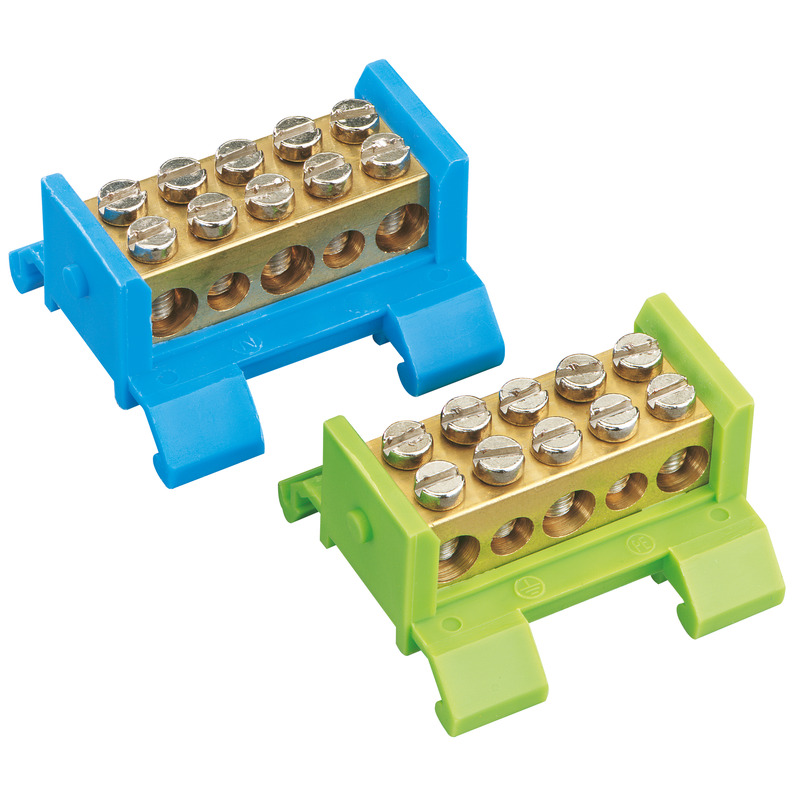

PE/N terminal block for mounting onto 35 mm standard rail, e.g. in meter housings
N terminal (blue) 3 x 25 mm², 2 x 16 mm²
Terminal block
KLS N 35
Productnumber: 79090501 | Dimensions: 48 x 42 x 25 mm
electrical characteristics
| Rated operating voltage AC | 690 V |
|---|---|
| Number of poles | 1 |
| shockproof | No |
| Connection 1: Connection type | Screws |
| Connection 1: Clamping points per pole | 5 |
| Connection 1: Suitable for Cu conductors | 1 |
| Connection 1: Connectable conductor cross-section, single-wire (min) | 2.5 mm² |
| Connection 1: Connectable conductor cross-section, single-wire (max) | 25 mm² |
| Connection 2: Connection type | Screws |
| Connection 2: Suitable for Cu conductors | 1 |
| Connection 2: Connectable conductor cross-section, single-wire (min) | 1 mm² |
| Connection 2: Connectable conductor cross-section, single-wire (max) | 16 mm² |
Dimensions
| Width | 48 mm |
|---|---|
| Length | 42 mm |
| Height | 25 mm |
| Weight | 0.058 kg |
Material characteristics
| Glow-wire flammability according to EN 60695-2-11 | 960 °C |
|---|
mechanical properties
| Connection 2: Tightening torque | 2.5 Nm |
|---|
Sales Information
| EAN | 4013902080816 |
|---|---|
| Packing Unit Code | C62 |
| ETIM Class | EC001284 |
| Custom tariff number | 85369010 |
Material
| Insulating body material | Thermoplastic |
|---|
Certificates
| Test mark | VDE (DIN 60998-1/-2-1 (VDE 0613-1/-2-1)) |
|---|
