Buchsenklemme KB NH 00 (07672001) Busbar housing with operating equipment: Spelsberg
This product is outdated. expires on 31.12.2024

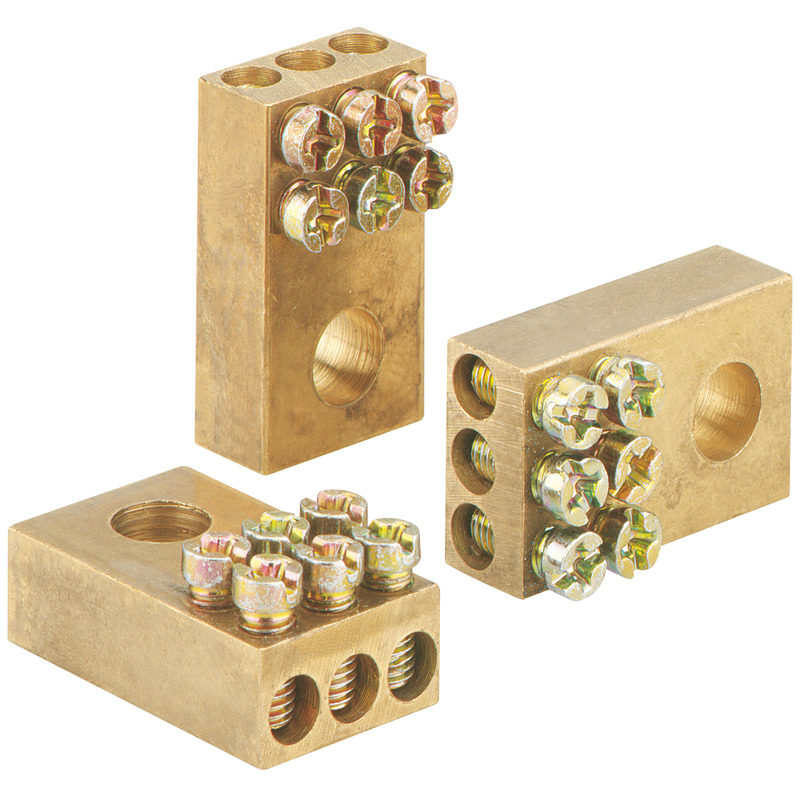

Tunnel terminal

KB NH 00

Productnumber: 07672001 | Dimensions: 22 x 40 x 18 mm

Tunnel terminal for NH 00 fuse switch disconnector for connecting 3 x 1.5-16 mm²

Set = 3 pcs.

electrical characteristics

shockproof No
Connection 1: Connection type Screws
Connection 1: Clamping points per pole 1
Connection 1: Suitable for Cu conductors 1
Connection 1: Suitable for Al conductors 0
Connection 1: Connectable conductor cross-section, fine-wire with ferrule (min) 2.5 mm²
Connection 1: Connectable conductor cross-section, fine-wire with ferrule (max) 16 mm²
Connection 1: Connectable conductor cross-section, single-wire (min) 2.5 mm²
Connection 1: Connectable conductor cross-section, single-wire (max) 25 mm²
Connection 1: Connectable conductor cross-section, stranded (min) 2.5 mm²
Connection 1:Connectable conductor cross-section, stranded (max) 25 mm²
Connection 2: Connection type Screws
Connection 2: Suitable for Cu conductors 1
Connection 2: Suitable for Al conductors 0
Connection 2: Connectable conductor cross-section, fine-wire with ferrule (min) 2.5 mm²
Connection 2: Connectable conductor cross-section, fine-wire with ferrule (max) 10 mm²
Connection 2: Connectable conductor cross-section, single-wire (min) 2.5 mm²
Connection 2: Connectable conductor cross-section, single-wire (max) 16 mm²
Connection 2: Connectable conductor cross-section, stranded (min) 2.5 mm²
Connection 2: Connectable conductor cross-section, stranded (max) 16 mm²

Dimensions

Width 22 mm
Length 40 mm
Height 18 mm
Weight 0.189 kg

mechanical properties

Connection 1: Tightening moment 2 Nm

Sales Information

EAN 4013902858941
Packing Unit Code C62
ETIM Class EC002498
Custom tariff number 85369010
