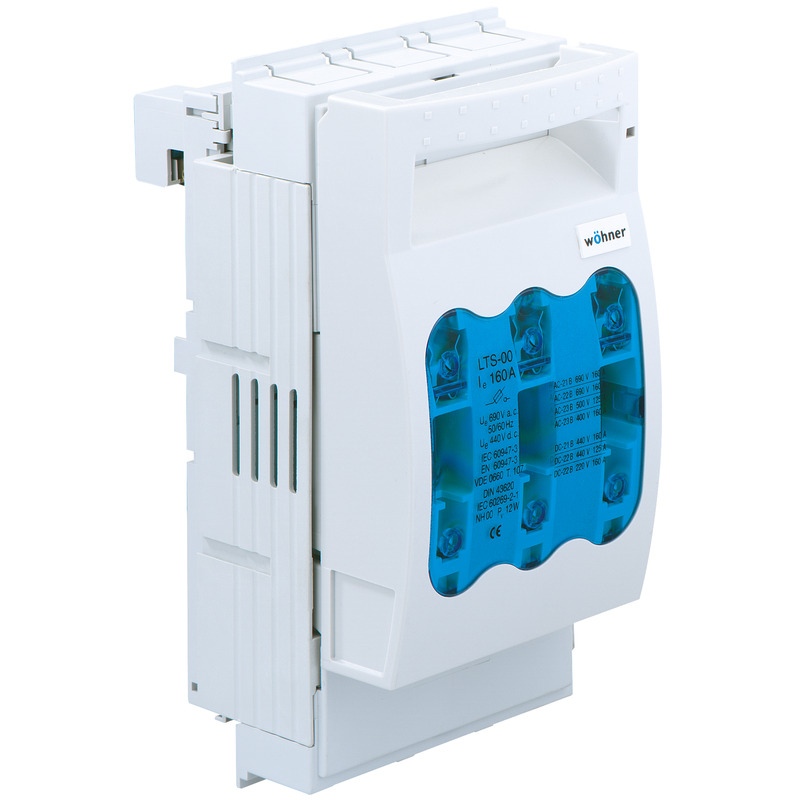

NH fuse switch disconnector, for 60 mm busbar system, Copper rails 12/20/30 x 10 mm
Construction size NH 00, 160 A, Universal output
GST bus-mounting isolator
Productnumber: 07960001 | Dimensions: 106 x 97 x 200 mm
NH fuse switch disconnector, for 60 mm busbar system, Copper rails 12/20/30 x 10 mm
Construction size NH 00, 160 A, Universal output
Rated operating voltage AC | - V |
---|---|
Type of protection | not specified |
Rated current | 160 A |
Width | 106 mm |
---|---|
Length | 97 mm |
Height | 200 mm |
Weight | 1.179 kg |
UV-resistant | yes |
---|---|
Halogen free | yes |
EAN | 4013902859153 |
---|---|
Packing Unit Code | C62 |
ETIM Class | EC001040 |
Custom tariff number | 85361090 |
