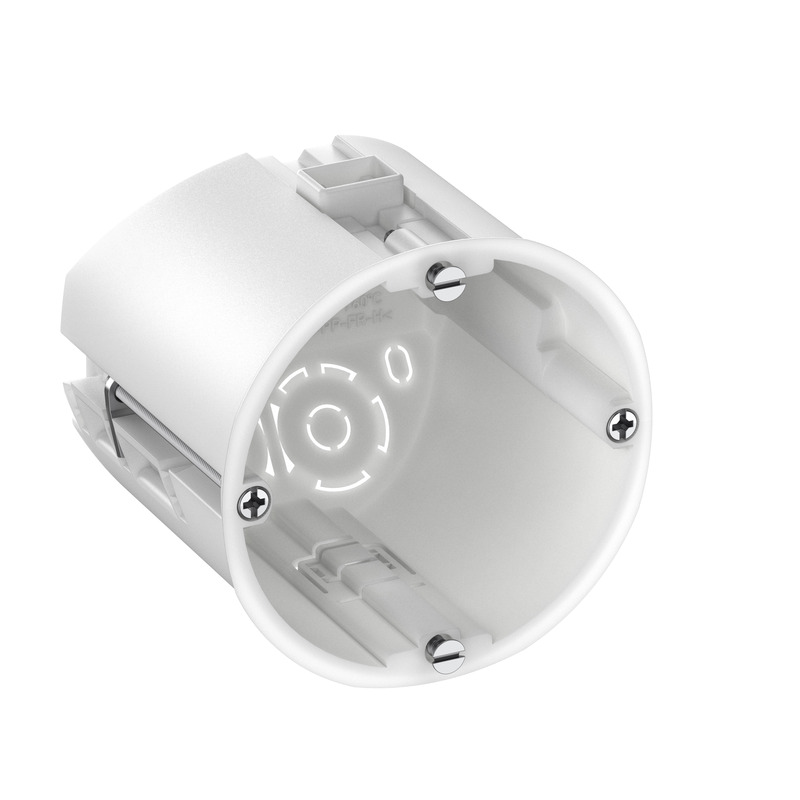

Branch socket
Productnumber: 92026501 | Dimensions: 68 x 68 x 65 mm

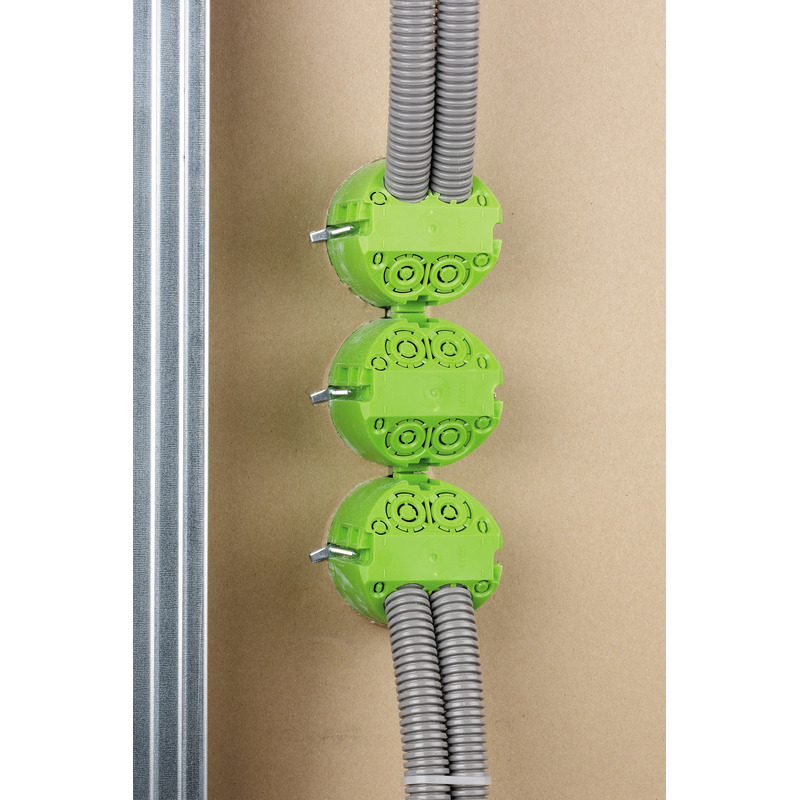

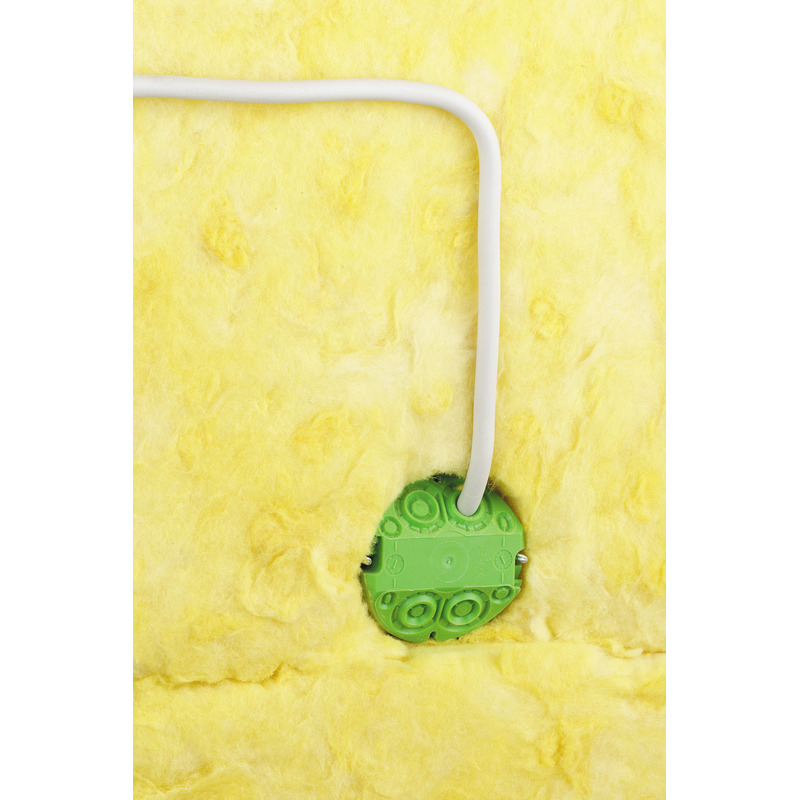

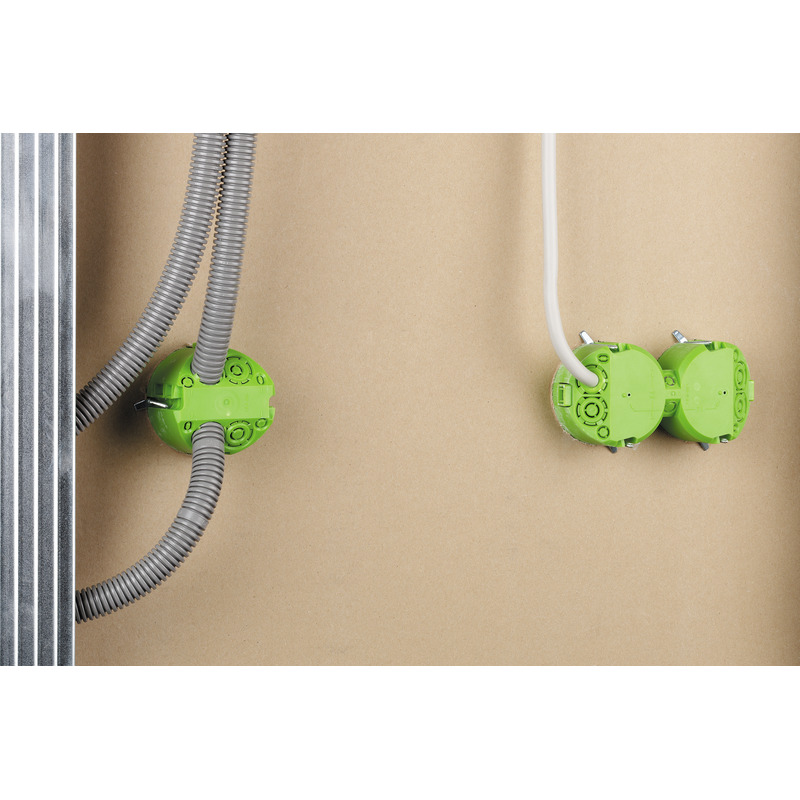

Cavity wall equipment junction box, flame-retardant and halogen-free, with enlarged terminal compartment, universal box for panel thicknesses 1- 40 mm, with punching tool, 60 mm equipment screw spacing, halogen-free
drilled hole Ø 68 mm, 65 mm deep, with coated, patented combi bridges
| Rated insulation voltage AC | 400 V |
|---|---|
| Type of protection | IP30 |
| UL Type Rating | not specified |
| Base unit colour | white |
|---|
| Width | 68 mm |
|---|---|
| Length | 68 mm |
| Height | 65 mm |
| Inner height | 63 mm |
| Weight | 0.0263 kg |
| Halogen free | yes |
|---|---|
| Flammability class according with UL94 | HB |
| Glow-wire flammability according to EN 60695-2-11 | 960 °C |
| max. relative humidity 25°C | - % |
|---|---|
| max. relative humidity 40°C | 50 % |
| Min. ambient temperature | -25 °C |
| Max. ambient temperature | 40 °C |
| 24h ambient temperature | 35 °C |
| Installation location | Indoors |
| EAN | 4013902170852 |
|---|---|
| Packing Unit Code | C62 |
| ETIM Class | EC002601 |
| Custom tariff number | 39269097 |
| Base unit material | Plastic |
|---|---|
| Cover material | Polypropylene |
| Test mark | VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)) |
|---|
