U 120 GRO-3-CR U 120 GRO-3-CR

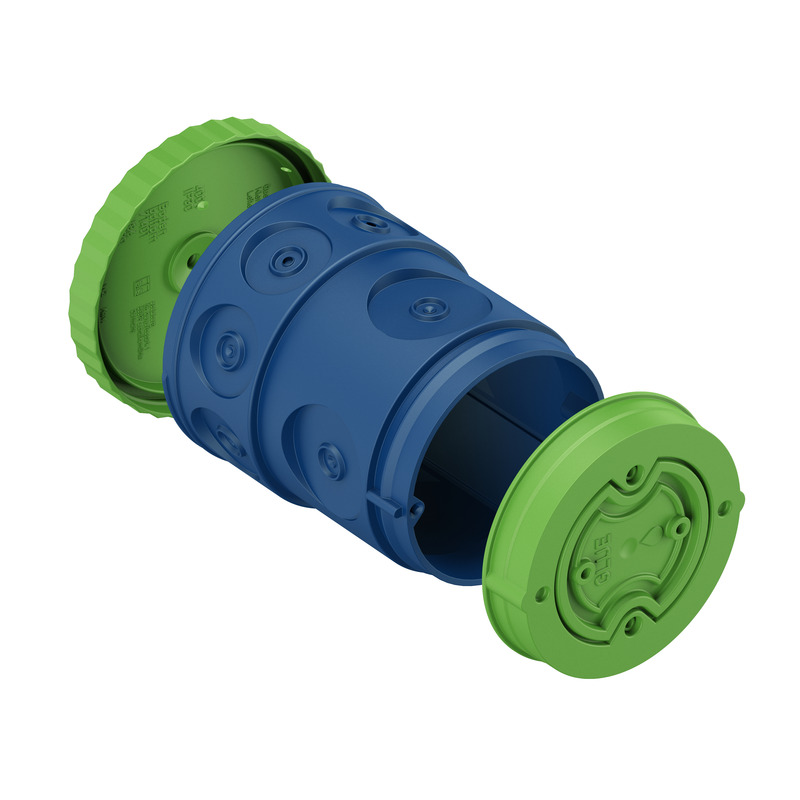

Large conduit box

U 120 GRO-3-CR

Productnumber: 97371501 | Dimensions: 83,5 x 83,5 x 123 mm

Large conduit box , for ceiling slab thickness up to 7.5 cm, with M5 threaded bushing (load capacity 10 kg) to hold ceiling hook, lamp output halogen max. 6.5 W, lamp output LED max. 3 W, protection class IP30, Halogen free

3-part, closed front part for UK-specific lamp mounting kit "ceilling-rose", Nail and adhexive mounting; Note: We strongly recommend use of the ES CR (97416001) screw, since this meets the particular requirements for fastening in the screw boss of this product and has also been tested in this combination.

electrical characteristics

Rated operating voltage AC 400 V
Type of protection IP30
Suitable for Concrete construction
UL Type Rating not specified

Colours

Base unit colour green
Cover colour other

Dimensions

Width 83.5 mm
Length 83.5 mm
Height 123 mm
Inner height 120.5 mm
Weight 0.081 kg

Material characteristics

Halogen free yes
Glow-wire flammability according to EN 60695-2-11 650 °C

mechanical properties

Type of fastening Concrete construction

Ambient conditions

max. relative humidity 25°C - %
max. relative humidity 40°C 50 %
Min. ambient temperature -25 °C
Max. ambient temperature 40 °C
24h ambient temperature 35 °C

Sales Information

EAN 4013902686582
Packing Unit Code C62
ETIM Class EC002601
Custom tariff number 39269097

Material

Base unit material Polypropylene
Cover material Polypropylene

Download Data Sheet

Download Data Sheet

Dimensioned drawing

Dimensional drawing dwg (611 KB)
Dimensional drawing dxf (3 MB)
Dimensional drawing pdf (720 KB)

Certificate

UKCA Declaration EN pdf (166 KB)

Accessories

new Installation screw - ES-CR

Installation screw ES-CR

  • Dimensions : 3,2 x 20 x 3,2 mm
  • Productnumber: 97416001

Mounting screw, 3,2 x 20 mm, special screw in combination with U 120...



Equipment mounting screw for British Standard
