Branch socket
Productnumber: 98476601 | Dimensions: 71 x 71 x 67,5 mm

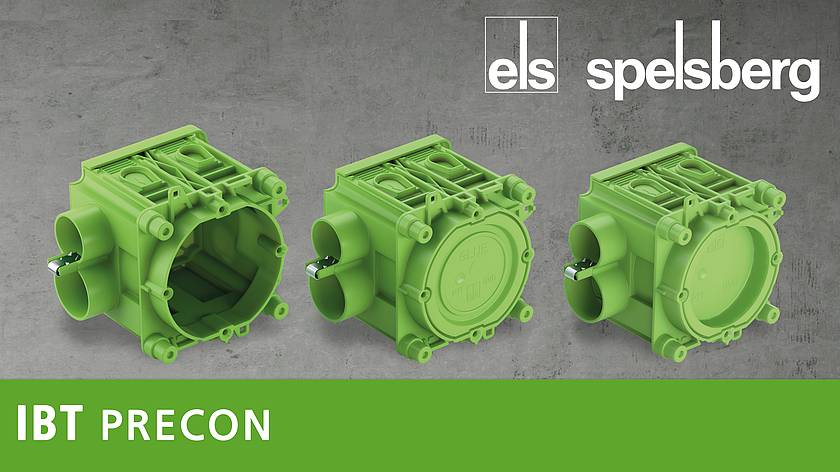

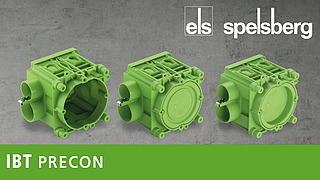

Equipment junction box for horizontal factory finishing, 1-part, diameter 60 mm, with enlarged terminal compartment, 4 screw bosses with 60 mm screw spacing, combinable, with claw fasteners, combinable in normal 71 mm spacing, also suitable for opposing formwork, VDE certified in accordance to DIN EN 60670 (VDE 0606)
adhesive fixing, conduit adapter and additional conduit adapter with Easy-Cut-Membran, sealing range M16 - M25, support spar compatible
| Rated insulation voltage AC | 400 V |
|---|---|
| Protection class | II |
| Type of protection | IP30 |
| Suitable for | Concrete construction |
| UL Type Rating | not specified |
| Base unit colour | green |
|---|---|
| Cover colour | green |
| Width | 71 mm |
|---|---|
| Length | 71 mm |
| Height | 67.5 mm |
| Diameter | 60 mm |
| Weight | 0.0554 kg |
| Halogen free | yes |
|---|---|
| Flammability class according with UL94 | HB |
| Glow-wire flammability according to EN 60695-2-11 | 650 °C |
| Type of fastening | adhesive fixing |
|---|
| EAN | 4013902634125 |
|---|---|
| Packing Unit Code | C62 |
| ETIM Class | EC002601 |
| Custom tariff number | 39269097 |
| Base unit material | Polypropylene |
|---|---|
| Cover material | Polypropylene |
| Test mark | VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)) |
|---|
