P 71 GRO-O

P 71 GRO-O

P 71 GRO-O

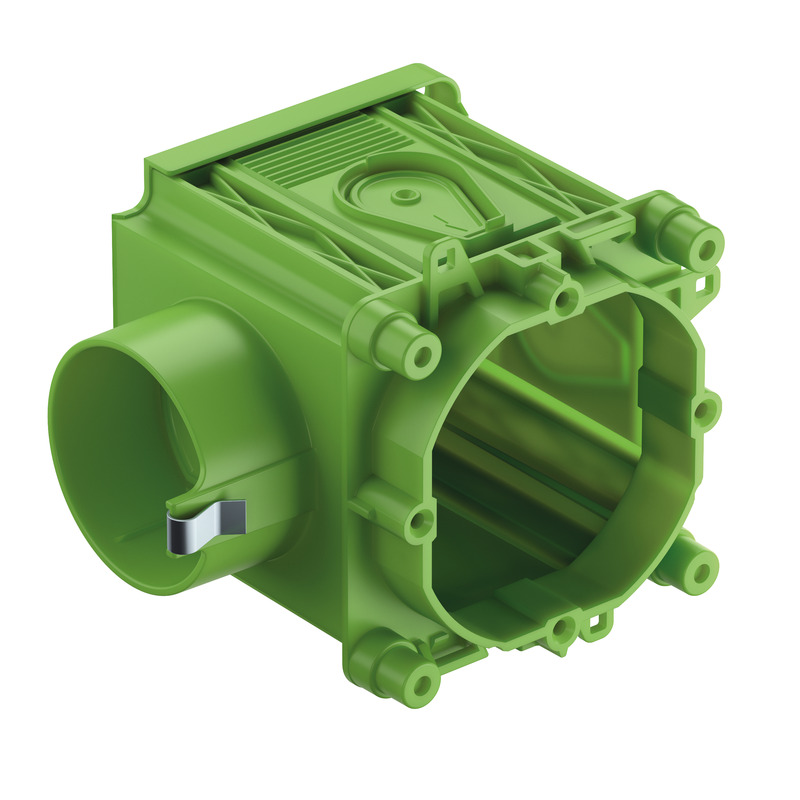

Large conduit box

P 71 GRO-O

Productnumber: 98497501 | Dimensions: 71 x 71 x 76,5 mm

Large conduit box , especially for horizontal factory finishing, 1-part, diameter 60 mm Ø, 4 screw bosses with a 60 mm screw spacing, combinable, suitable for opposing formwork, combinable with a standard spacing of 71 mm, protection class IP30, rated insulation voltage: 400V AC, certified by VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)), Halogen free

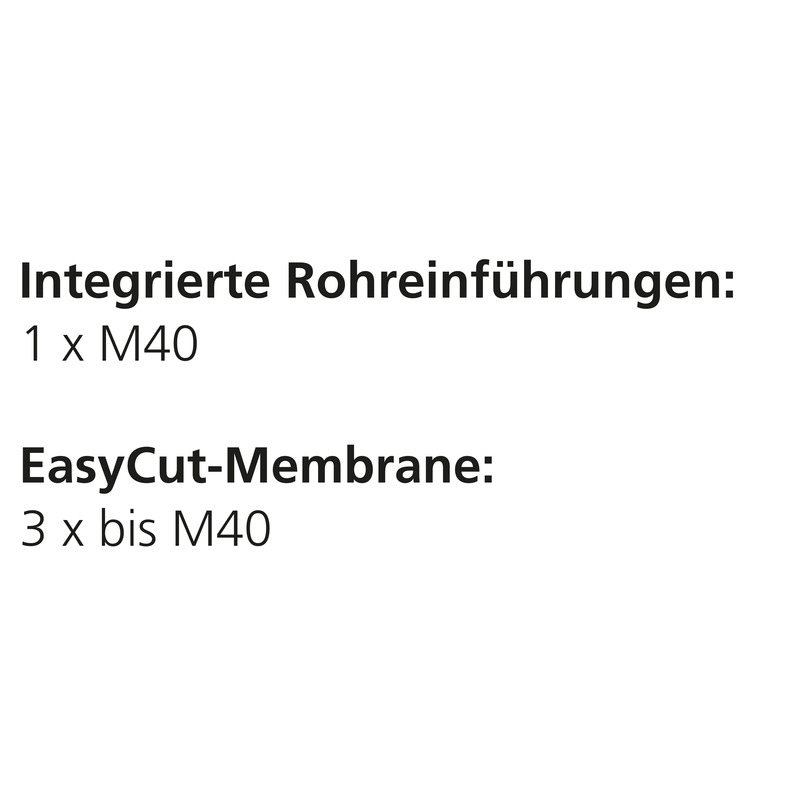

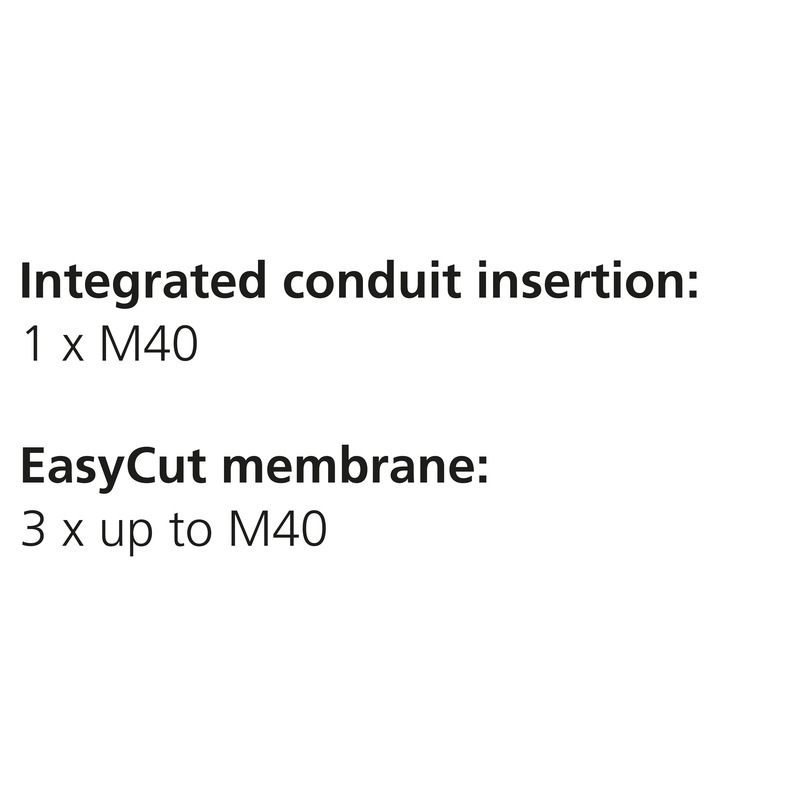

with enlarged terminal compartment, open front section for special magnetic clamp HM P 71 (98498001), magnet installation, conduit adapter and additional conduit adapter with Easy-Cut-Membran, sealing range M32 - M40, support spar compatible

electrical characteristics

Rated insulation voltage AC	400 V
Type of protection	IP30
Suitable for	Concrete construction
UL Type Rating	not specified

Dimensions

Width	71 mm
Length	71 mm
Height	76.5 mm
Inner height	72.9 mm
Weight	0.054 kg

Material characteristics

Halogen free	yes
Flammability class according with UL94	HB
Glow-wire flammability according to EN 60695-2-11	650 °C

mechanical properties

Type of fastening	magnet installation

Ambient conditions

max. relative humidity 40°C	50 %
Min. ambient temperature	-25 °C
Max. ambient temperature	40 °C
24h ambient temperature	35 °C

Sales Information

EAN	4013902597567
Packing Unit Code	C62
ETIM Class	EC002601
Custom tariff number	39269097

Material

Base unit material	Plastic
Cover material	Polypropylene

Certificates

Test mark	VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22))

Download Data Sheet

Download Data Sheet

Installation instructions

Assembly instruction EN	pdf (914 KB)
Assembly instruction NL	pdf (913 KB)
Assembly instruction DE	pdf (913 KB)
Assembly instruction ES	pdf (914 KB)
Assembly instruction FR	pdf (914 KB)

Dimensioned drawing

Dimensional drawing	pdf (386 KB)
Dimensional drawing	dxf (4 MB)
Dimensional drawing	dwg (759 KB)
Dimensional drawing	jpg (1 MB)

Certificate

VDE Certificate (DIN EN 60670) DE/EN	pdf (627 KB)
UKCA Declaration EN	pdf (49 KB)
CE Declaration DE/EN/PL	pdf (74 KB)
CE Declaration DE/EN/FR	pdf (62 KB)

Accessories

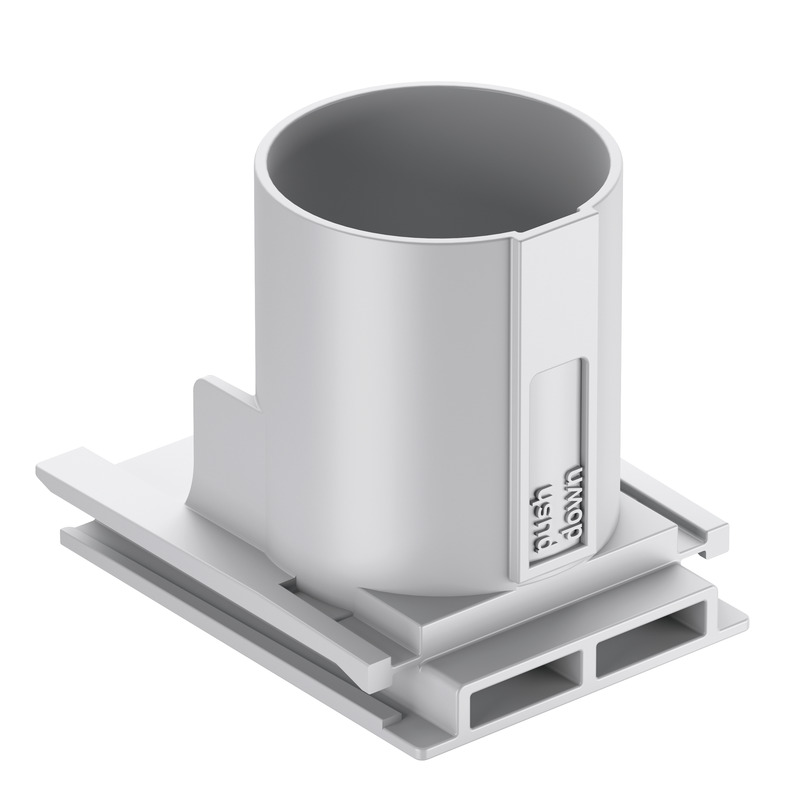

Conduit adapter - RA 32

Conduit adapter RA 32

Dimensions : 60,7 x 48,8 x 45,5 mm
Productnumber: 98403201

M32 conduit adapter, integrated conduit stoppers and strain relief for...

Conduit adapter, for receiving conduits without tools, integrated conduit stoppers and strain relief...

Watchlist

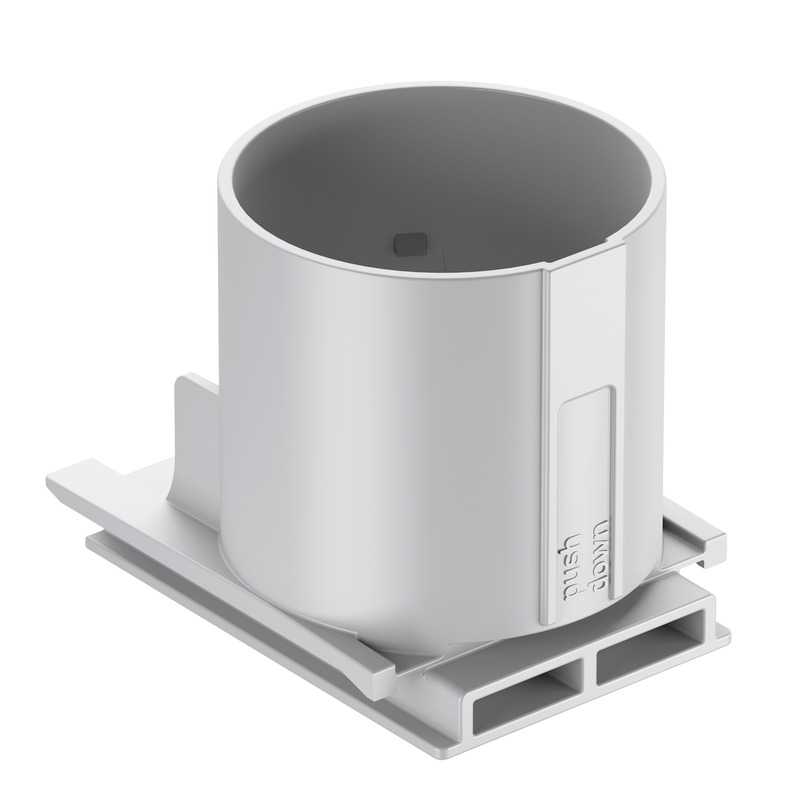

Conduit adapter - RA 40

Conduit adapter RA 40

Dimensions : 60,7 x 48,8 x 45,5 mm
Productnumber: 98404001

M40 conduit adapter, integrated conduit stoppers and strain relief for...

Conduit adapter, for receiving conduits without tools, integrated conduit stoppers and strain relief...

Watchlist

CAD-Data

CAD-Data	Download 3D-CAD-Data

BIM-Data

BIM-Data	Download 3D-BIM-Data

Tender text

Log in to mySpelsberg to download tender texts. mySpelsberg Login

Similar products

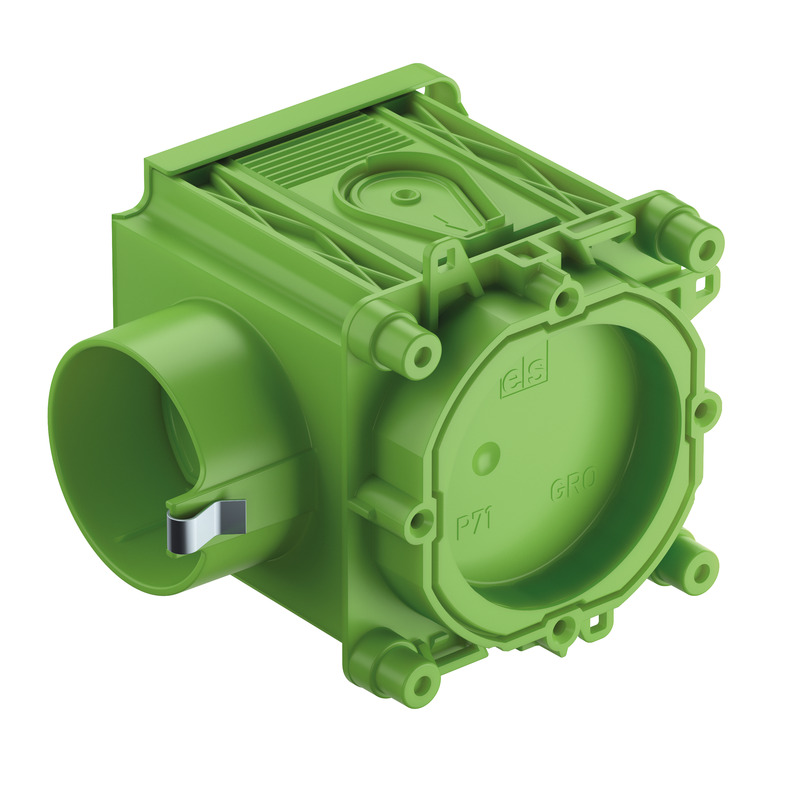

Large conduit box - P 71 GRO

Large conduit box P 71 GRO

Dimensions : 71 x 71 x 76,5 mm
Productnumber: 98407501

with enlarged terminal compartment, for 50mm HM-UNI magnetic clamp...

Large conduit box , especially for horizontal factory finishing, 1-part, diameter 60 mm Ø, 4 screw...

Watchlist

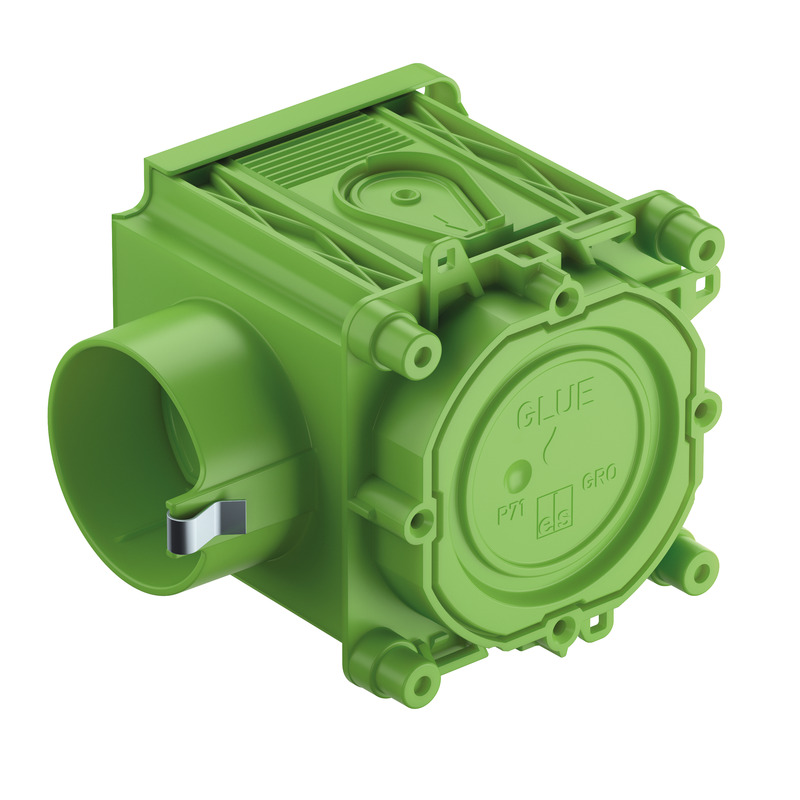

Large conduit box - P 71 GRO-K
