Dome box

U 71 KUD-M5

Productnumber: 97124801 | Dimensions: 71 x 71 x 91 mm

Dome box, can also be used as a sealing box, 2 screw bosses with 60 mm screw spacing, combinable with normal 71 mm spacing, fully insulated cable transition, suitable for all types of formwork and opposing formwork, protection class IP30, rated insulation voltage: 400V AC, Halogen free, Number of 45° insertions: 4

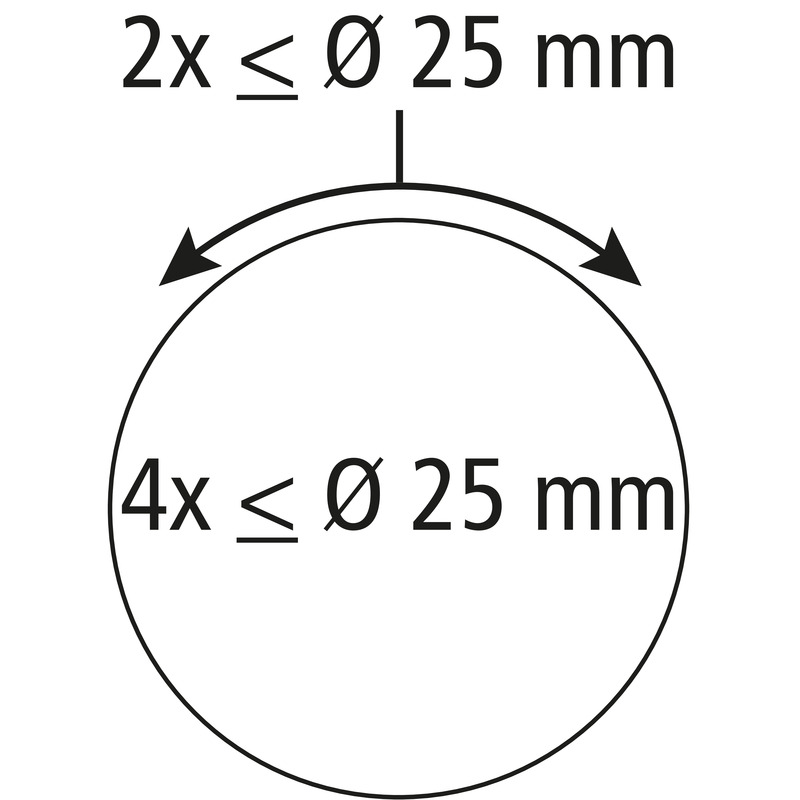

2-part, membrane for perforation, sealing range M16 - M25

electrical characteristics

Rated insulation voltage AC	400 V
Type of protection	IP30
Suitable for	Concrete construction
UL Type Rating	not specified

Colours

Cover colour	other

Dimensions

Width	71 mm
Length	71 mm
Height	91 mm
Weight	0.045 kg

Material characteristics

Halogen free	yes
Flammability class according with UL94	HB
Glow-wire flammability according to EN 60695-2-11	650 °C

Ambient conditions

max. relative humidity 25°C	- %
max. relative humidity 40°C	50 %
Min. ambient temperature	-25 °C
Max. ambient temperature	40 °C
24h ambient temperature	35 °C

Sales Information

EAN	4013902877058
Packing Unit Code	C62
ETIM Class	EC002601
Custom tariff number	39269097

Material

Base unit material	Polypropylene
Cover material	Polypropylene

Download Data Sheet

Download Data Sheet

Dimensioned drawing

Dimensional drawing	pdf (159 KB)
Dimensional drawing	dxf (3 MB)
Dimensional drawing	dwg (569 KB)
Dimensional drawing	jpg (1 MB)

Certificate

CE Declaration DE/EN/FR	pdf (63 KB)
UKCA Declaration EN	pdf (50 KB)
CE Declaration DE/EN/PL	pdf (75 KB)
