Branch socket
Productnumber: 97136501 | Dimensions: 71 x 71 x 68 mm
Branch socket, in component factories also, 4 screw bosses with 60 mm screw spacing, combinable with normal 71 mm spacing, fully insulated cable transition, suitable for all types of formwork and opposing formwork, protection class IP30, rated insulation voltage: 400V AC, certified by VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)), Halogen free

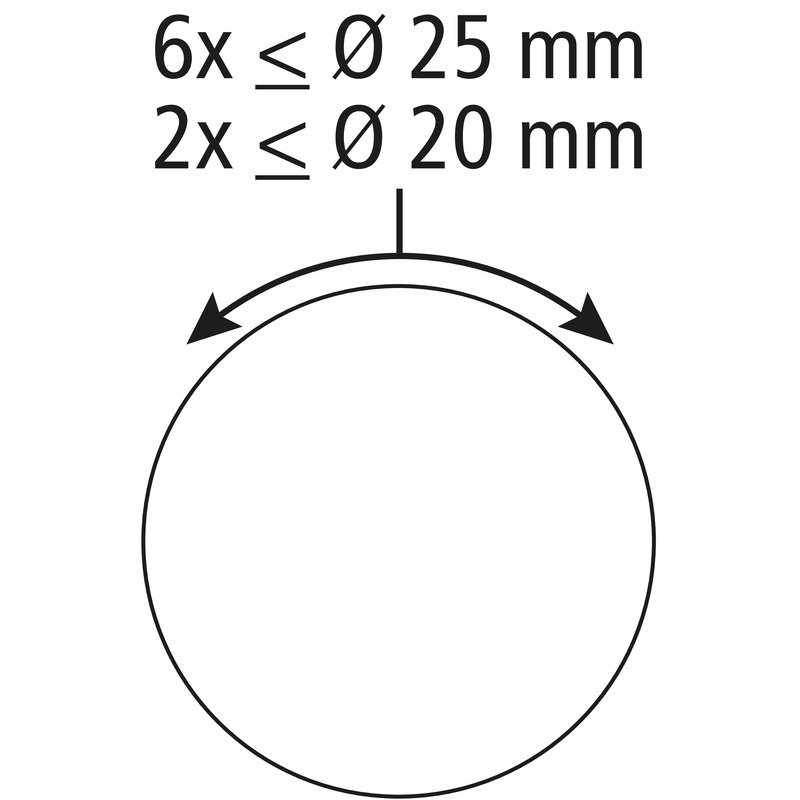

3-part, magnet and nail installation, membrane for perforation, sealing range M16 - M25, support spar compatible
| Rated insulation voltage AC | 400 V |
|---|---|
| Type of protection | IP30 |
| Suitable for | Concrete construction |
| UL Type Rating | not specified |
| Cover colour | other |
|---|
| Width | 71 mm |
|---|---|
| Length | 71 mm |
| Height | 68 mm |
| Weight | 0.03 kg |
| Halogen free | yes |
|---|---|
| Flammability class according with UL94 | HB |
| Glow-wire flammability according to EN 60695-2-11 | 650 °C |
| Type of fastening | magnet and nail installation |
|---|
| max. relative humidity 25°C | - % |
|---|---|
| max. relative humidity 40°C | 50 % |
| Min. ambient temperature | -25 °C |
| Max. ambient temperature | 40 °C |
| 24h ambient temperature | 35 °C |
| EAN | 4013902877041 |
|---|---|
| Packing Unit Code | C62 |
| ETIM Class | EC002601 |
| Custom tariff number | 39269097 |
| Base unit material | Polypropylene |
|---|---|
| Cover material | Polypropylene |
| Test mark | VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)) |
|---|
