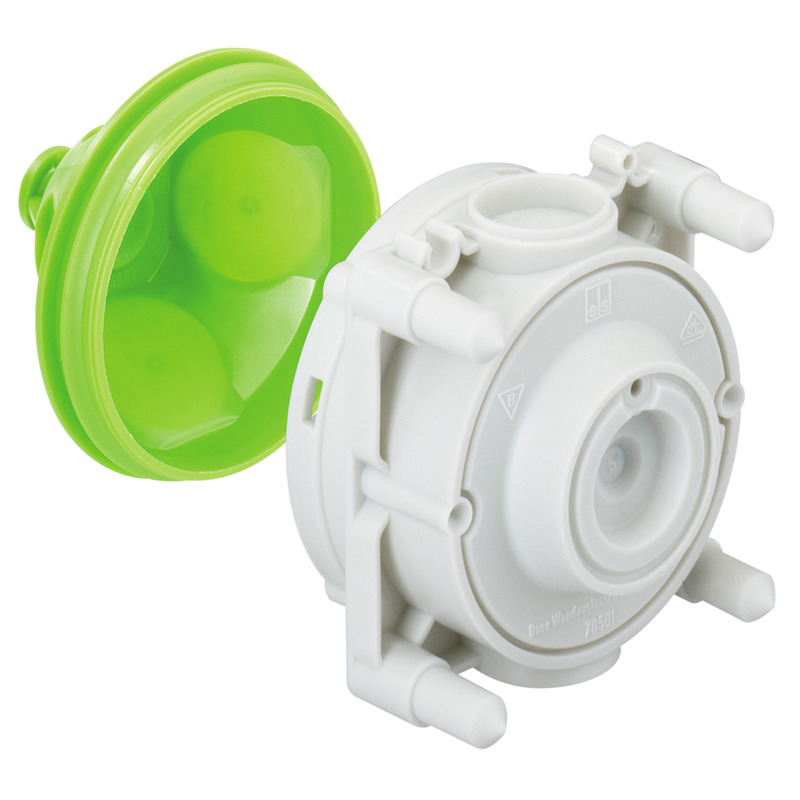

Ceiling luminaire junction box

U 71 DAD

Productnumber: 97154801 | Dimensions: 71 x 71 x 106 mm

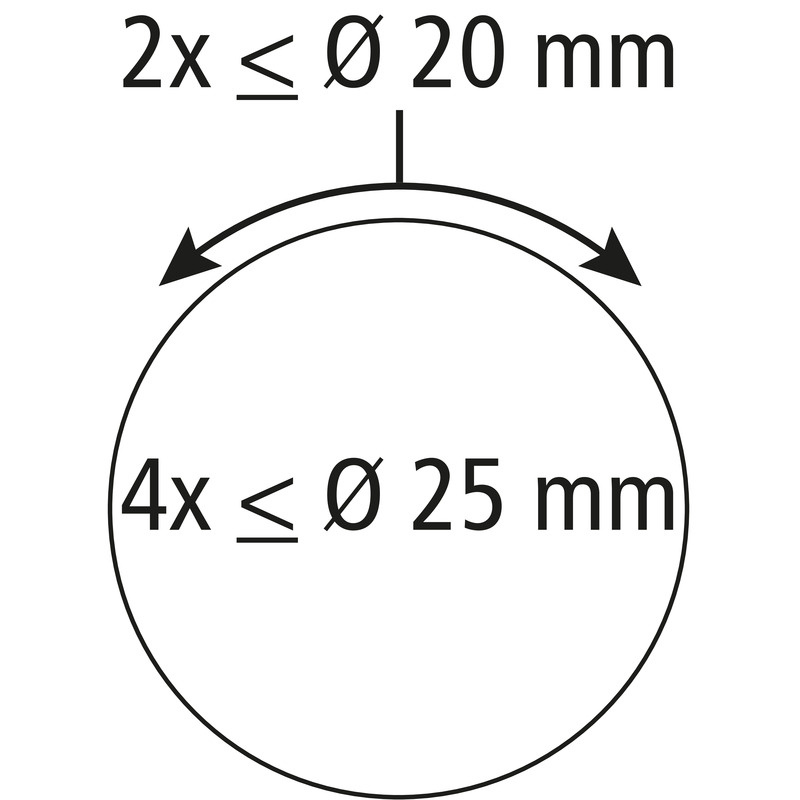

Ceiling luminaire junction box, combinable, 35 mm outlet, 2-part, suitable for opposing formwork, 89 mm high, rearward dome with M5 threaded bushing (load capacity 10 kg) to accomodate a ceiling hook, protection class IP30, rated insulation voltage: 400V AC, Halogen free, Number of 45° insertions: 4

adhesive fixing or nail installation, membrane for perforation, sealing range M16 - M25, support spar compatible

electrical characteristics

Rated insulation voltage AC	400 V
Type of protection	IP30
Suitable for	Concrete construction
UL Type Rating	not specified

Colours

Cover colour	other

Dimensions

Width	71 mm
Length	71 mm
Height	106 mm
Weight	0.043 kg

Material characteristics

Halogen free	yes
Flammability class according with UL94	HB
Glow-wire flammability according to EN 60695-2-11	650 °C

mechanical properties

Type of fastening	adhesive fixing or nail installation

Ambient conditions

max. relative humidity 25°C	- %
max. relative humidity 40°C	50 %
Min. ambient temperature	-25 °C
Max. ambient temperature	40 °C
24h ambient temperature	35 °C

Sales Information

EAN	4013902879274
Packing Unit Code	C62
ETIM Class	EC002601
Custom tariff number	39269097

Material

Base unit material	Polypropylene
Cover material	Polypropylene

Download Data Sheet

Download Data Sheet

Dimensioned drawing

Dimensional drawing	pdf (147 KB)
Dimensional drawing	dxf (2 MB)
Dimensional drawing	dwg (498 KB)
Dimensional drawing	jpg (1 MB)

Certificate

CE Declaration DE/EN/FR	pdf (47 KB)
CE Declaration DE/EN/PL	pdf (226 KB)
UKCA Declaration EN	pdf (49 KB)

Accessories

sealing plate WAD VD

Productnumber: 97056201

2-part, sealing cover white, 35 mm Ø, outlet cover

Sealing plate for junction boxes, flame resistant, white
