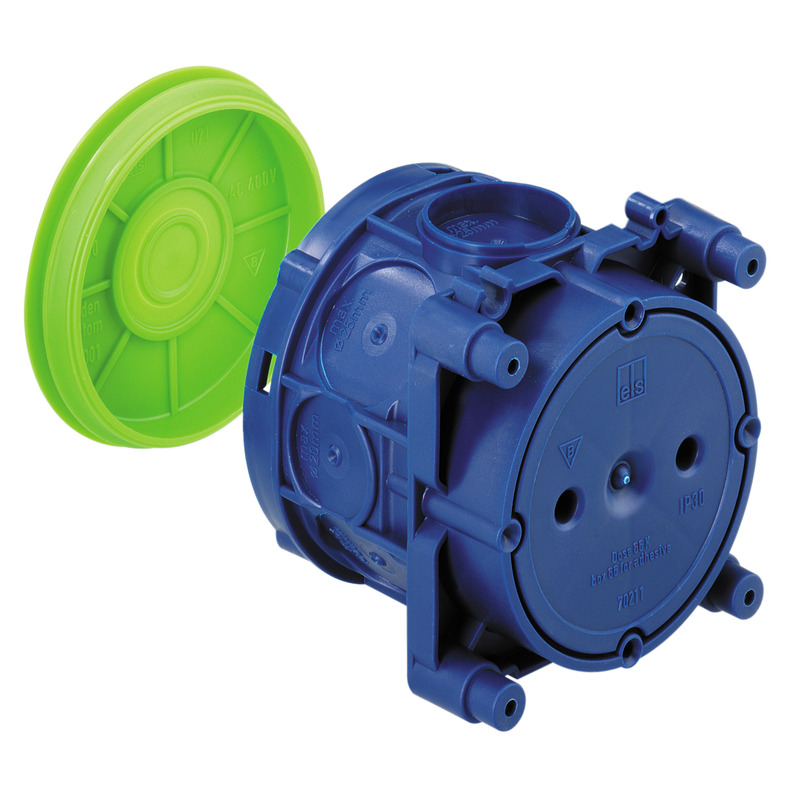

Branch socket

U 71 K GVD-2

Productnumber: 97176501 | Dimensions: 71 x 71 x 68 mm

Branch socket, 4 screw bosses with 60 mm screw spacing, combinable with normal 71 mm spacing, fully insulated cable transition, suitable for all types of formwork and opposing formwork, protection class IP30, rated insulation voltage: 400V AC, certified by VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)), Halogen free

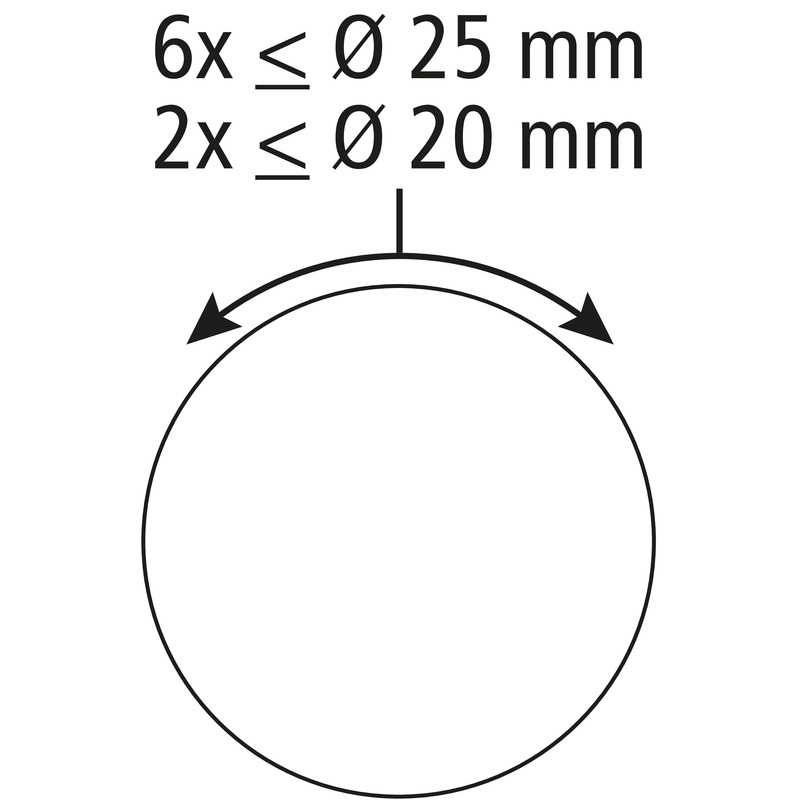

2-piece, with enlarged terminal compartment , adhesive fixing or nail installation, membrane for perforation, sealing range M16 - M25, support spar compatible

electrical characteristics

Rated insulation voltage AC	400 V
Type of protection	IP30
Suitable for	Concrete construction
UL Type Rating	not specified

Colours

Cover colour	other

Dimensions

Width	71 mm
Length	71 mm
Height	68 mm
Weight	0.04 kg

Material characteristics

Halogen free	yes
Flammability class according with UL94	HB
Glow-wire flammability according to EN 60695-2-11	650 °C

mechanical properties

Type of fastening	adhesive fixing or nail installation

Ambient conditions

max. relative humidity 25°C	- %
max. relative humidity 40°C	50 %
Min. ambient temperature	-25 °C
Max. ambient temperature	40 °C
24h ambient temperature	35 °C

Sales Information

EAN	4013902190140
Packing Unit Code	C62
ETIM Class	EC002601
Custom tariff number	39269097

Material

Base unit material	Polypropylene
Cover material	Polypropylene

Certificates

Test mark	VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22))

Download Data Sheet

Download Data Sheet

Dimensioned drawing

Dimensional drawing	pdf (209 KB)
Dimensional drawing	dxf (4 MB)
Dimensional drawing	dwg (764 KB)
Dimensional drawing	jpg (1 MB)

Certificate

CE Declaration DE/EN/FR	pdf (63 KB)
UKCA Declaration EN	pdf (50 KB)
CE Declaration DE/EN/PL	pdf (75 KB)
VDE Certificate DE/EN	pdf (592 KB)

Accessories

This article is archived!

IBT Accessories KR

Productnumber: 97924801

adhesive black, as a non-damaging fixing, when using blank and flange,...

Fixings for plastic/steel formwork

Watchlist

U 71 K GVD-2

electrical characteristics

Colours

Dimensions

Material characteristics

mechanical properties

Ambient conditions

Sales Information

Material

Certificates

Download Data Sheet

Dimensioned drawing

Certificate

Accessories

adhesive black, as a non-damaging fixing, when using blank and flange,...

with fixing screws

through opening: M16-32, drill hole: 16.5-32.5 mm

for type HW 035 / HW 050 / HW 065, screw spacing 60 mm

for long-ridged pipes M20

for long-ridged pipes M25

for long-ridged pipes M32

for long-ridged pipes M40

(suitable for series U 71)

without punch set

with 18 mm punch set for pipe M20

with 23 mm punch set for pipe M25

with fixing screws

3.1 x 10 mm

3.1 x 18 mm

3.1 x 25 mm

with M5 threaded bushing to take a ceiling hook, converts every U71...

expansion range 9 - 25 mm Ø

(for U 71 receptacle 97104502)

for a spacing 71 mm

for a spacing 80 and 85 mm

for a spacing 90 mm

for a spacing 105 mm

spreader nail, aluminium 40 mm, with plastic plug for fixing the boxes...

aluminium nail, 40 mm, long-ridged

aluminium nail, 40 mm, smooth

weld on screw M6 x 10 mm, price economic, secure fixing of the box,...

height 25 mm for nail fixing

height 25 mm for exposed concrete, minimum visibility of the feet

height 21 mm for adhesive fixing

height 21 mm for magnet fixing, magnet hole has to be plastered later

CAD-Data

Your request

BIM-Data

Your request

Tender text

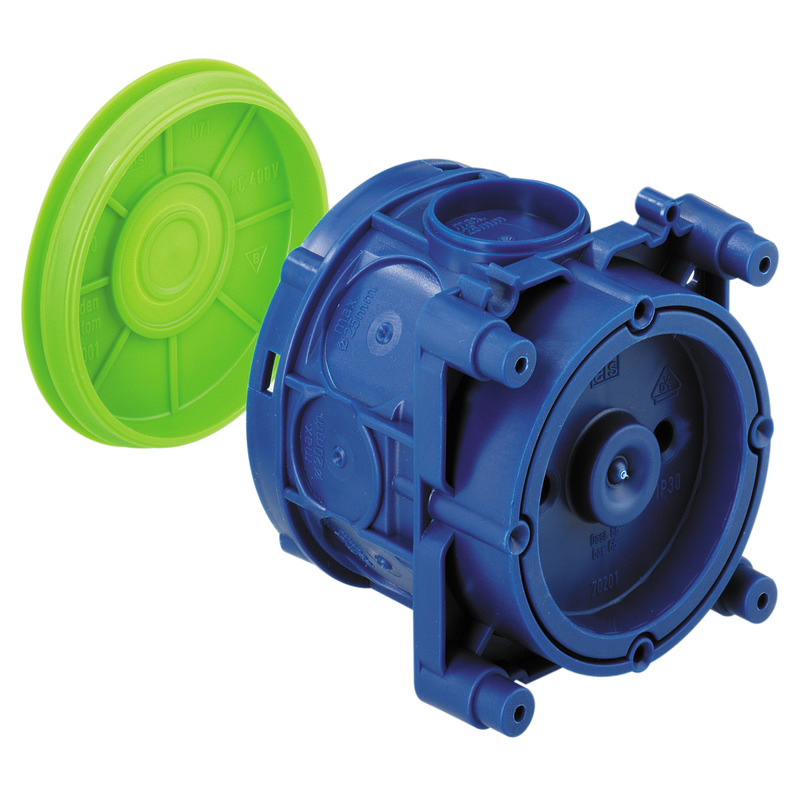

Similar products
