Deep box
Productnumber: 97294501 | Dimensions: 71 x 71 x 49 mm
Deep box, as top enclosure for all U 71 boxes when using large conduits up to M32, screw spacing 60 mm, provides additional installation space of 49mm in depth, protection class IP00, rated insulation voltage: 400V AC, Halogen free

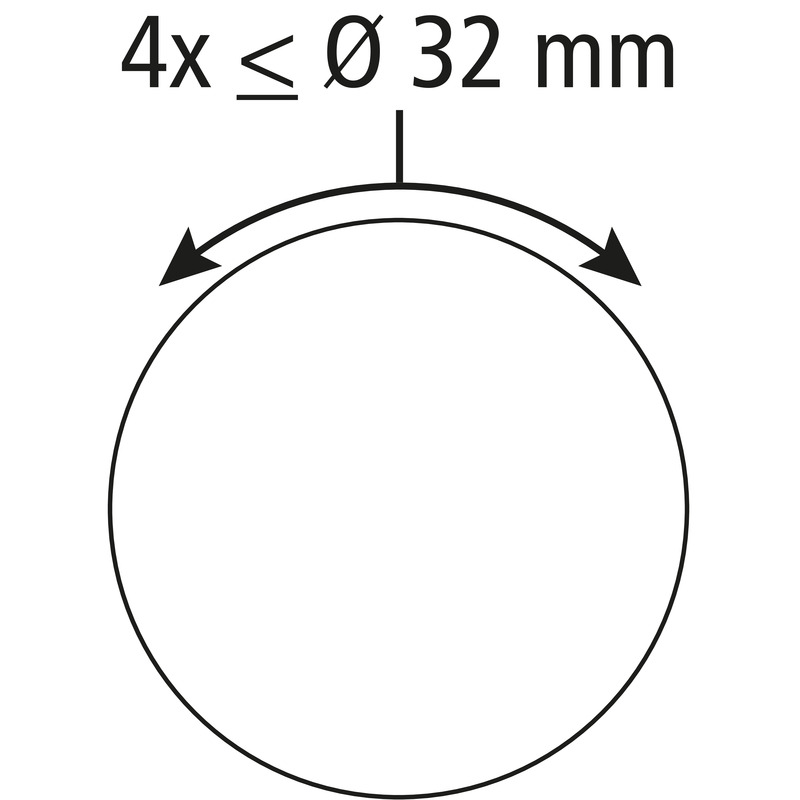

attachable, membrane for perforation, sealing range M16 - M32
| Rated insulation voltage AC | 400 V |
|---|---|
| Type of protection | IP00 |
| Suitable for | Concrete construction |
| UL Type Rating | not specified |
| Cover colour | other |
|---|
| Width | 71 mm |
|---|---|
| Length | 71 mm |
| Height | 49 mm |
| Weight | 0.028 kg |
| Halogen free | yes |
|---|---|
| Flammability class according with UL94 | HB |
| Glow-wire flammability according to EN 60695-2-11 | 650 °C |
| Type of fastening | attachable |
|---|
| max. relative humidity 25°C | - % |
|---|---|
| max. relative humidity 40°C | 50 % |
| Min. ambient temperature | -25 °C |
| Max. ambient temperature | 40 °C |
| 24h ambient temperature | 35 °C |
| EAN | 4013902190065 |
|---|---|
| Packing Unit Code | C62 |
| ETIM Class | EC002601 |
| Custom tariff number | 39269097 |
| Base unit material | Polypropylene |
|---|---|
| Cover material | Polypropylene |
