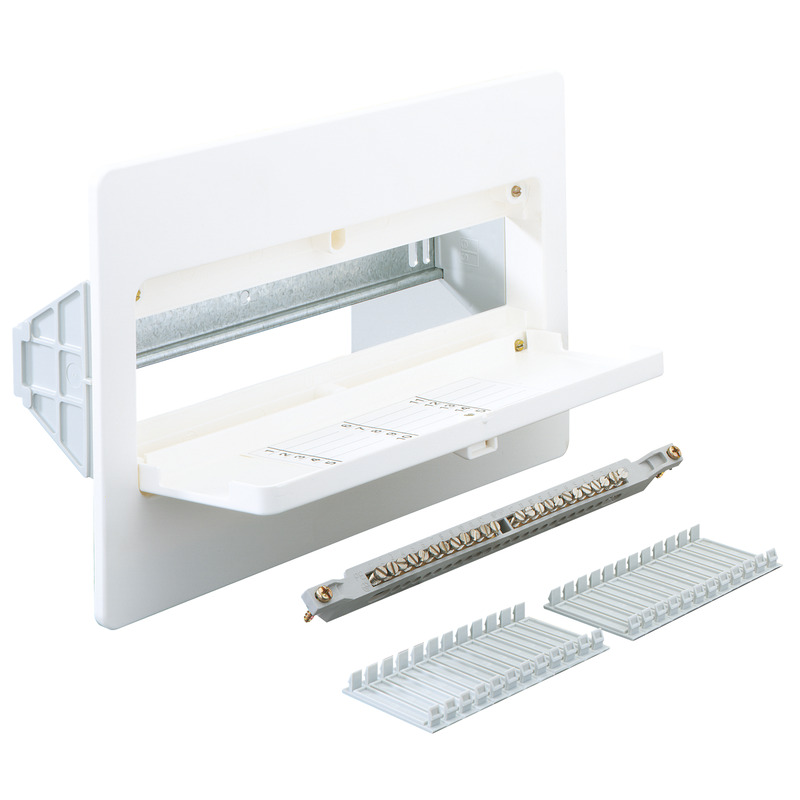

Distributor kit
Productnumber: 98600001 | Dimensions: 311 x 202 x 87 mm
Distributor kit, 15 distribution units, plastic frame and door, white, with spring latch, 35 mm DIN standard rail, PE/N terminals, masking off strips and labelling strips for K4 EK mounting boxes, rated insulation voltage: 400V AC, Halogen free
1-row
| Rated insulation voltage AC | 400 V |
|---|---|
| Suitable for | Concrete construction |
| Width | 311 mm |
|---|---|
| Length | 202 mm |
| Height | 87 mm |
| Weight | 0.53 kg |
| Halogen free | yes |
|---|---|
| Flammability class according with UL94 | HB |
| Glow-wire flammability according to EN 60695-2-11 | 650 °C |
| max. relative humidity 25°C | - % |
|---|---|
| max. relative humidity 40°C | 50 % |
| Min. ambient temperature | -25 °C |
| Max. ambient temperature | 40 °C |
| 24h ambient temperature | 35 °C |
| EAN | 4013902200153 |
|---|---|
| Packing Unit Code | C62 |
| ETIM Class | EC002287 |
| Custom tariff number | 85389099 |
| Base unit material | Polypropylene |
|---|---|
| Cover material | Polypropylene |
