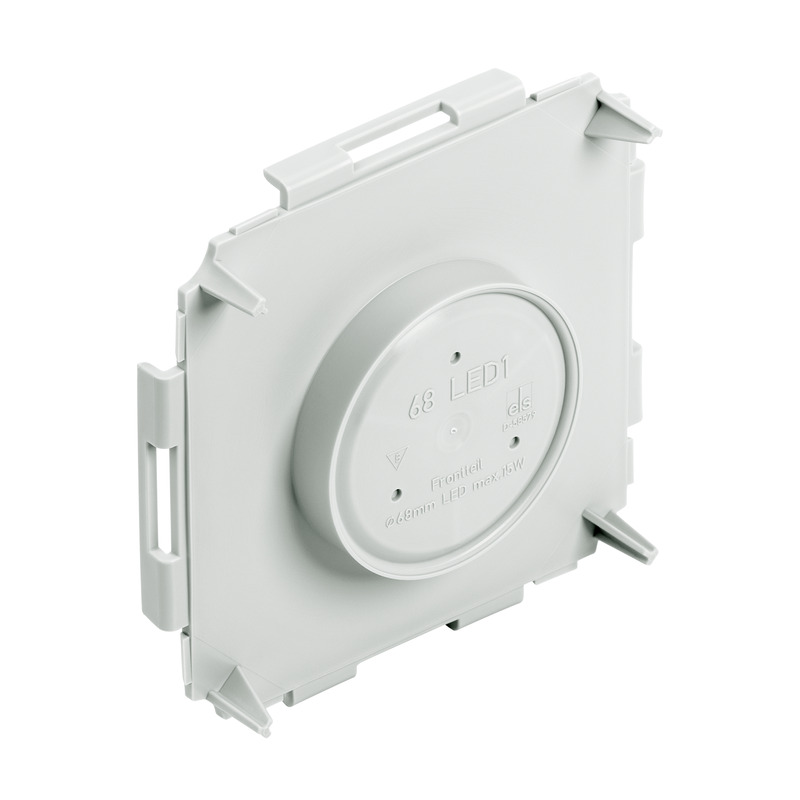

FT68R

Productnumber: 98206801 | Dimensions: 145 x 145 x 27 mm

Front part, for use in combination with IBTLED 1-O installation box in site-cast concrete, protection class IP30, rated insulation voltage: 400V AC, Halogen free

Internal diameter 68 mm, diameter of external aperture edge min. 74 mm, adhesive fixing or nail installation

electrical characteristics

Rated insulation voltage AC	400 V
Type of protection	IP30
Suitable for	Concrete construction

Colours

Cover colour	grey

Dimensions

Width	145 mm
Length	145 mm
Height	27 mm
Weight	0.069 kg

Material characteristics

Halogen free	yes
Flammability class according with UL94	HB
Glow-wire flammability according to EN 60695-2-11	650 °C

mechanical properties

Type of fastening	adhesive fixing or nail installation
Type of accessory	Universal front piece

Sales Information

EAN	4013902607839
Packing Unit Code	C62
ETIM Class	EC002472
Custom tariff number	39269097

Download Data Sheet

Download Data Sheet

Dimensioned drawing

Dimensional drawing	dwg (2 MB)
Dimensional drawing	dxf (8 MB)
Dimensional drawing	pdf (731 KB)

Certificate

CE Declaration DE/EN/FR	pdf (219 KB)
CE Declaration DE/EN/PL	pdf (221 KB)

Tender text

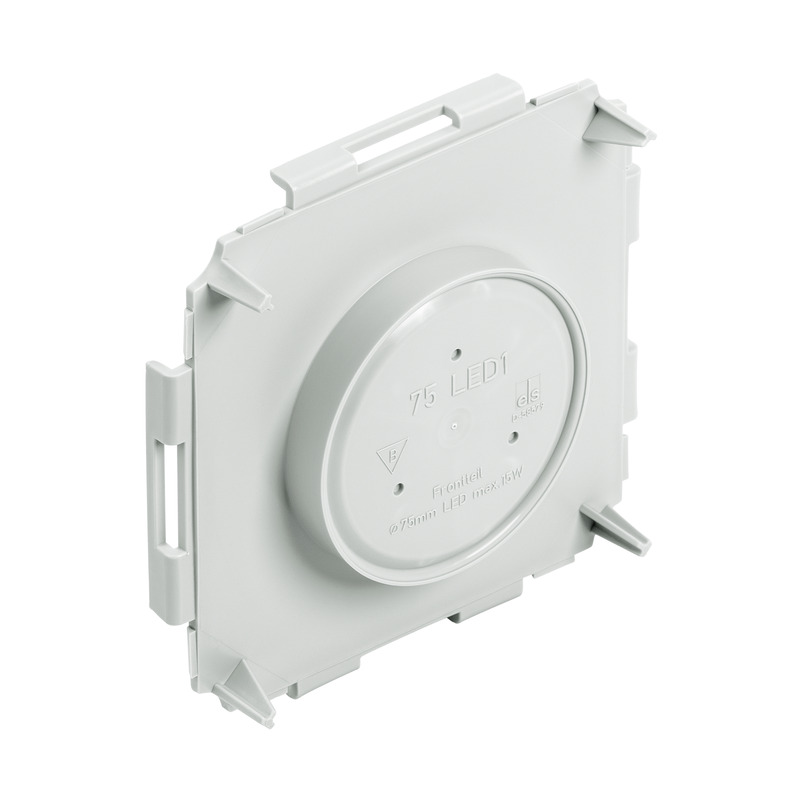

Internal diameter 75 mm, diameter of external aperture edge min. 81...

Front part, for use in combination with IBTLED 1-O installation box in site-cast concrete,...

Watchlist

Details

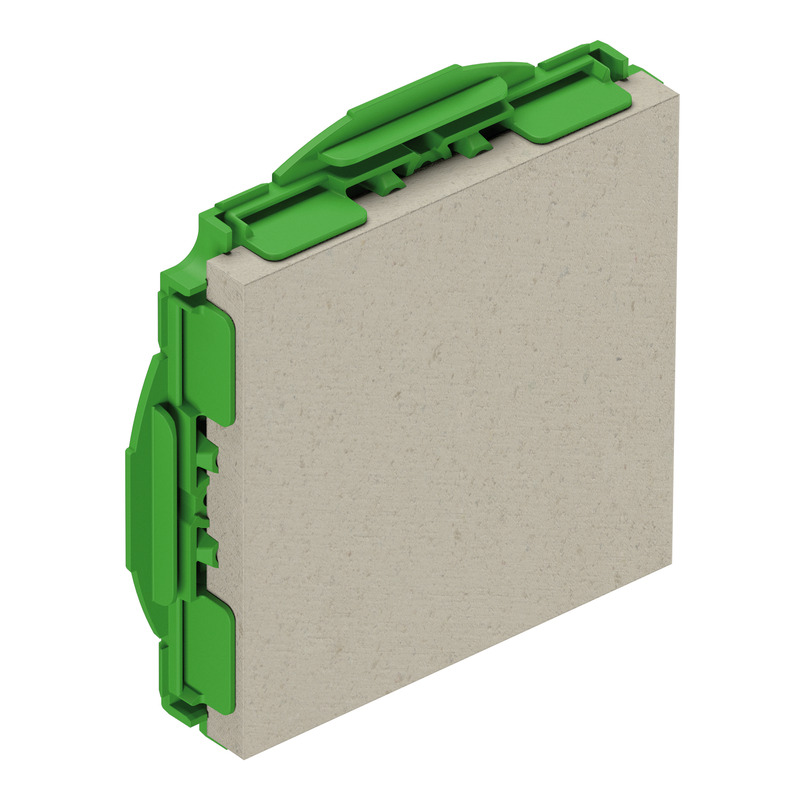

Front part FTF1
