Junction box

WKE 4 - 3/3 x 6² 1SB

Productnumber: 86911101 | Dimensions: 150 x 150 x 85 mm

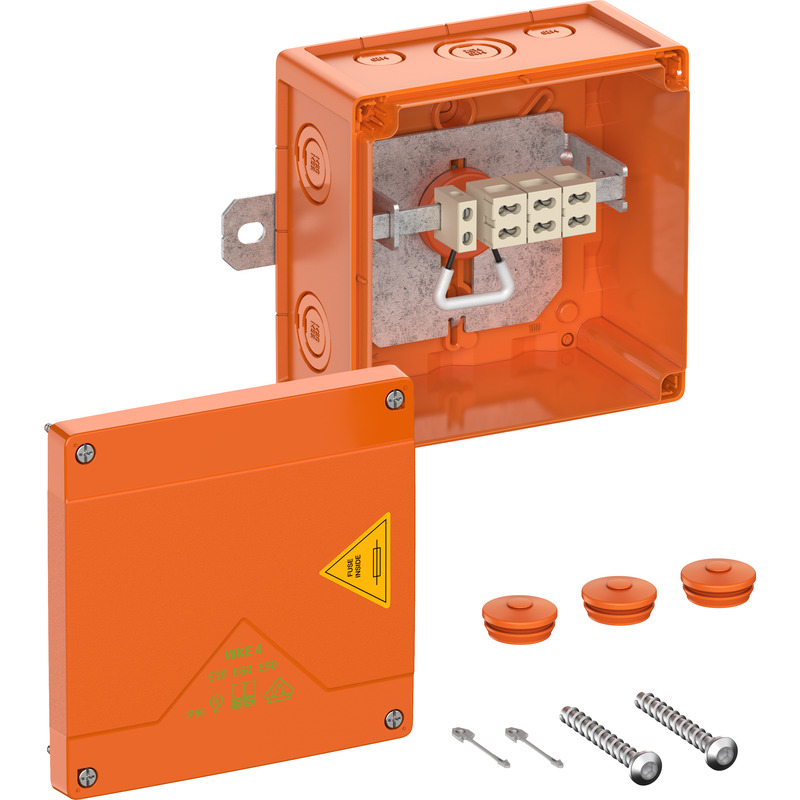

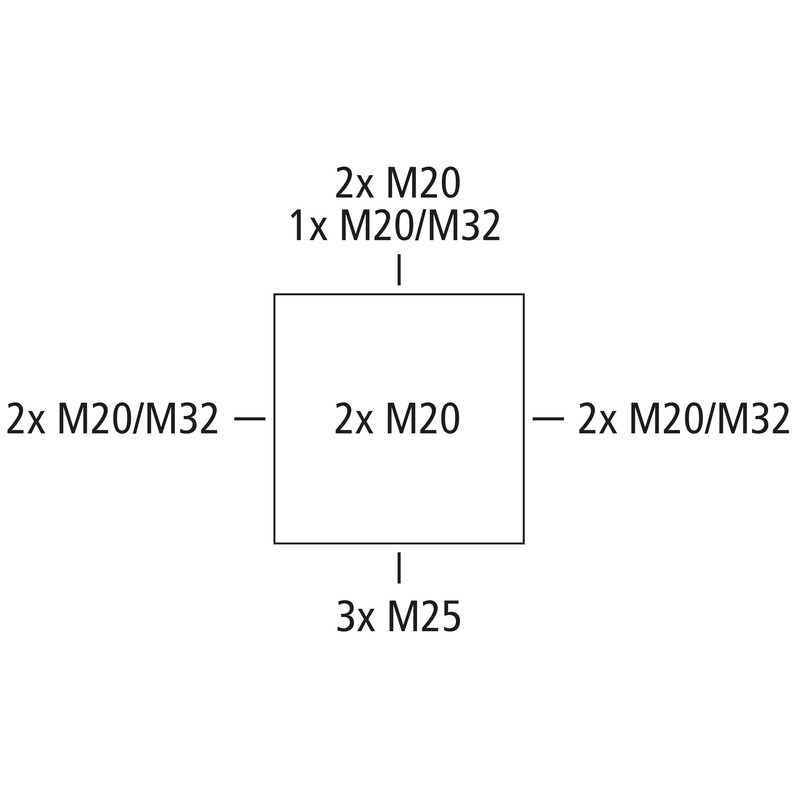

Junction box, protection class IP66, U_i=450 V AC, certified by UL-EU (EN 62208), UL-EU (EN 61439-1/-2), knockouts, M20/M25/M32, (2 rear, 12 side), external fixing lugs, with E30 - E 90 electrical functional integrity according to DIN 4102 Part 12. Halogen-free enclosure made of special thermoplastic, terminals made of high-temperature-resistant special ceramic, universally positionable terminal holder

orange, connection box, 3-pole, 0.5 - 6 mm², junction box 3-pole 0.5 - 6 mm², fuse in branch 1 x 2A (internal, 1 x WKE BS F2A, 86300101) number of clampable wires per terminal point: 4 x 0.5² / 2 x 0.75² / 3 x 1² / 3 x 1.5² / 1 x 2.5² / 1 x 4² / 1 x 6²

Accessories supplied:
Cover retainer, screw anchors, 3 double membrane seals M25 IP66 sealing range 9 - 17 mm

electrical characteristics

Rated insulation voltage AC	450 V
Rated insulation voltage DC	450 V
Min. conductor cross section	0,5 mm²
max. wire cross section (wire branching)	6 mm²
Min. conductor cross section	0,5 mm²
Max. conductor cross section	6 mm²
Protection class	II
Type of protection	IP66
secured junction	yes
Circuit integrity class	E30/E60/E90
Number of poles (T-piece)	3
Number of poles (feed-through)	3
UL Type Rating	other
Number of fuses in T-piece	1

Colours

Base unit colour	orange
Cover colour	orange

Additional features

Range of application	Fused T-piece

Dimensions

Width	150 mm
Length	150 mm
Height	85 mm
Inner length	137 mm
Inner width	137 mm
Inner height	67 mm
Weight	0.711 kg

Material characteristics

UV-resistant	yes
Halogen free	yes
Flammability class according with UL94	V0
Glow-wire flammability according to EN 60695-2-11	960 °C

mechanical properties

Type of fastening	Wall/ceiling mounting
Impact strength	IK08
Sealable	yes
Fastening	external fixing lugs

Ambient conditions

max. relative humidity 25°C	95 %
max. relative humidity 40°C	50 %
Min. ambient temperature	-35 °C
Max. ambient temperature	40 °C
24h ambient temperature	35 °C
Installation location	protected outdoor areas

Sales Information

EAN	4013902631452
Packing Unit Code	C62
ETIM Class	EC002600
Custom tariff number	85369095

Material

Base unit material	Polycarbonate
Cover material	Polycarbonate
Sealing material	Polyurethane
Cover screw material	Stainless steel V2A

Certificates

Test mark	UL-EU (EN 62208)
Test mark	UL-EU (EN 61439-1/-2)
