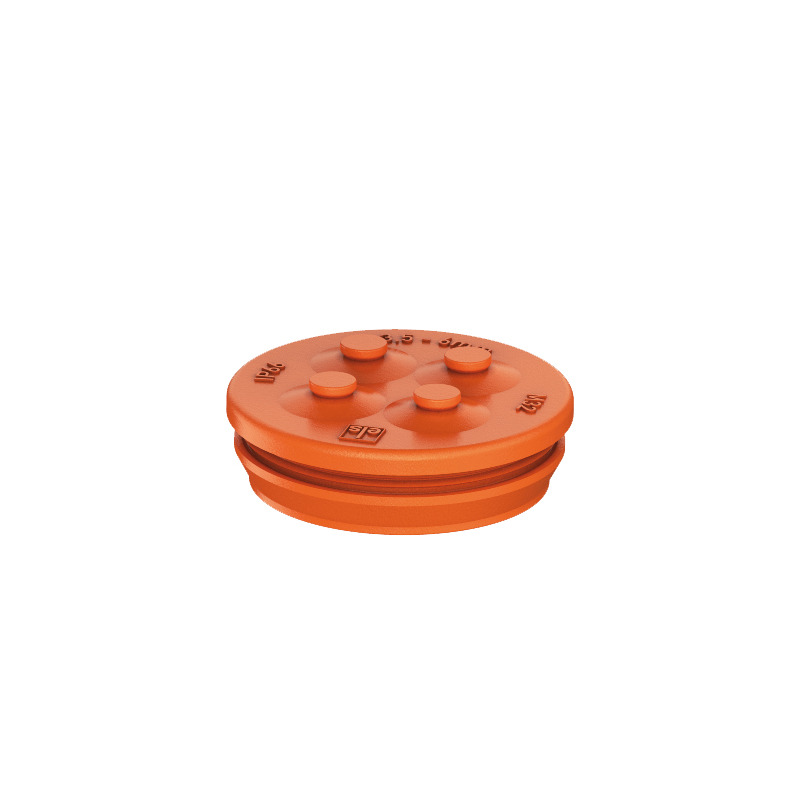

Double-membrane seals
Productnumber: 26063301 | Dimensions: 36,7 x 12,9 x 36,7 mm
Double membrane seals, IP66, with two sealing membranes, closed, max. four cable insertions for control lines, thermoplastic elastomer (TPE), orange, for wall thicknesses 1.5 - 4.5 mm
Sealing range 3.5 - 6 mm per entry
| Type of protection | IP66 |
|---|
| Accessory colour | reinorange |
|---|
| Width | 36.7 mm |
|---|---|
| Length | 12.9 mm |
| Height | 36.7 mm |
| Nominal size | M32 |
| Weight | 0.007 kg |
| Halogen free | yes |
|---|
| for wall thickness max | 4.5 mm |
|---|---|
| for sealing range min | 3.5 mm |
| for sealing range max | 6 mm |
| for wall thickness min | 1.5 mm |
| Installation location | protected outdoor areas |
|---|
| EAN | 4013902632749 |
|---|---|
| Packing Unit Code | C62 |
| ETIM Class | EC000451 |
| Custom tariff number | 39269097 |
