Außenscharnierset GAS (07031001) Accessories: Spelsberg

External hinge set

GAS

Productnumber: 07031001 | Dimensions: 40 x 30 x 60,5 mm

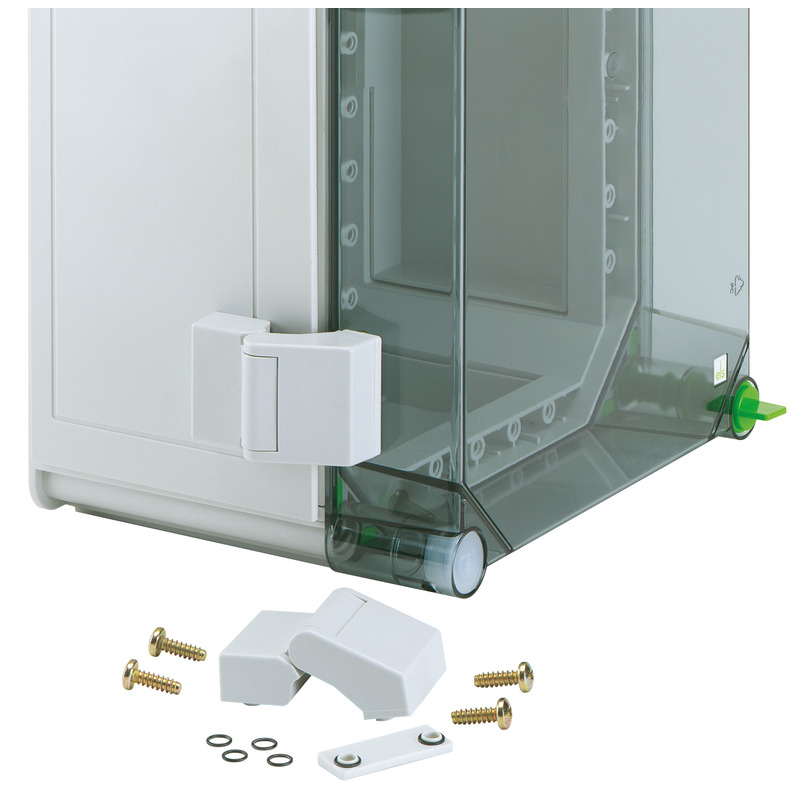

External hinge, for retrofitting the enclosure cover to a hinged door, for GTi housing, The assembly is performed on the exterior of the flange

Set = 2 pcs.

Dimensions

Width 40 mm
Length 30 mm
Height 60.5 mm
Weight 0.0724 kg

Material characteristics

Flammability class according with UL94 V2
Glow-wire flammability according to EN 60695-2-11 750 °C

Ambient conditions

Installation location protected outdoor areas

Sales Information

EAN 4013902050628
Packing Unit Code C62
ETIM Class EC001167
Custom tariff number 39269097
