Montageplatte GMI 5 (07101501) Accessories: Spelsberg

Mounting plate

GMI 5

Productnumber: 07101501 | Dimensions: 380 x 580 x 5 mm

Assembly plate in melamine-clad insulating material, 5 mm thick, with mounting kit, grey

Dimensions

Width 380 mm
Length 580 mm
Height 5 mm
Weight 1.628 kg

Sales Information

EAN 4013902050871
Packing Unit Code C62
ETIM Class EC000213
Custom tariff number 39219041

Download Data Sheet

Download Data Sheet

Dimensioned drawing

Dimensional drawing pdf (35 KB)
Dimensional drawing dwg (58 KB)
Dimensional drawing dxf (240 KB)
Dimensional drawing jpg (491 KB)

CAD-Data

CAD-Data Download 3D-CAD-Data

Your request

Your information

Companydata

CAD-Format

Tender text

Similar products

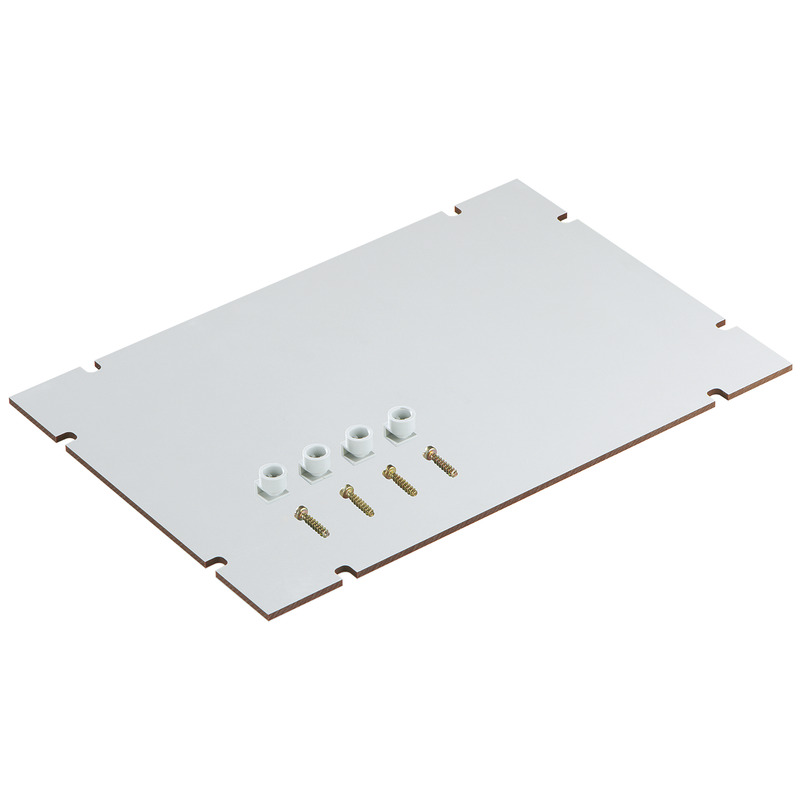

Mounting plate GMI 1

  • Dimensions : 160 x 260 x 5 mm
  • Productnumber: 07101101



Assembly plate in melamine-clad insulating material, 5 mm thick, with mounting kit, grey



Mounting plate GMI 2

  • Dimensions : 260 x 260 x 5 mm
  • Productnumber: 07101201



Assembly plate in melamine-clad insulating material, 5 mm thick, with mounting kit, grey



Mounting plate GMI 4

  • Dimensions : 260 x 580 x 5 mm
  • Productnumber: 07101401



Assembly plate in melamine-clad insulating material, 5 mm thick, with mounting kit, grey



Mounting plate GMI 3

  • Dimensions : 260 x 380 x 5 mm
  • Productnumber: 07101301



Assembly plate in melamine-clad insulating material, 5 mm thick, with mounting kit, grey
