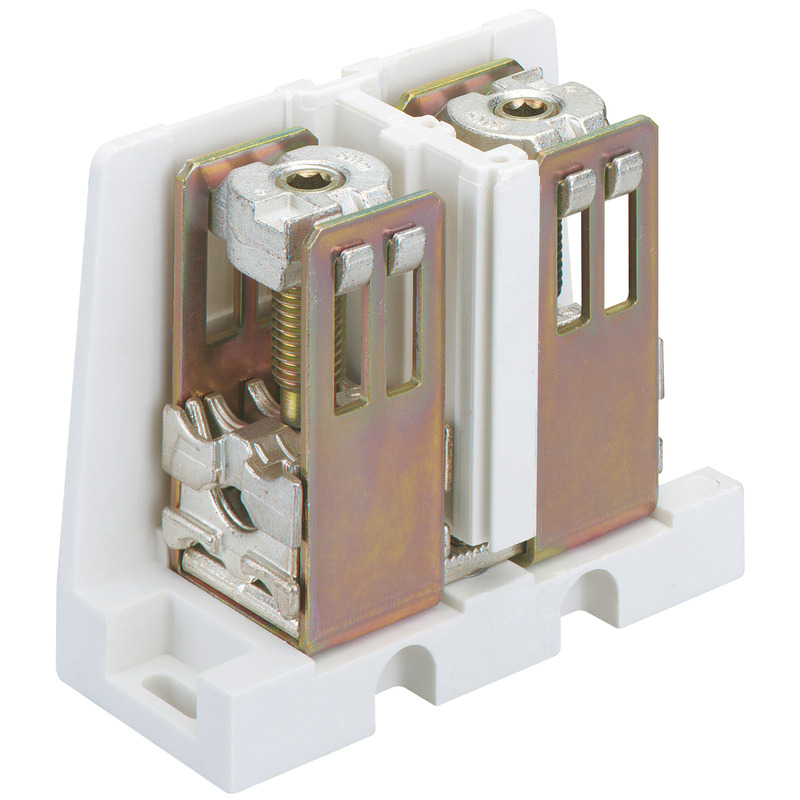

Terminal
Productnumber: 07614001 | Dimensions: 55 x 115 x 120 mm
Connecting terminal, 1-pole, stackable, for one or more-wired leads and for laminated flat copper
400 A, for CU conductors 1x (50-240)re/rm/se/sm, 2x (25-120)re/rm/se/sm, for AL conductors 1x (50-240)re/rm/se/sm, 1x (95-195)sm, 2x (25-120)re/se, 2x (50-95)sm, for laminated flat copper 16 x 10 mm
| Rated operating voltage AC | 690 V |
|---|---|
| Rated operating voltage DC | 750 V |
| Rated current | 400 A |
| Number of poles | 1 |
| shockproof | No |
| Connection 1: Connection type | Screws |
| Connection 1: Strip length | 30 mm |
| Connection 1: Clamping points per pole | 2 |
| Connection 1: Suitable for Cu conductors | 1 |
| Connection 1: Suitable for Al conductors | 1 |
| Connection 1: Connectable conductor cross-section, single-wire (min) | 25 mm² |
| Connection 1: Connectable conductor cross-section, single-wire (max) | 50 mm² |
| Connection 1: Connectable conductor cross-section, stranded (min) | 25 mm² |
| Connection 1:Connectable conductor cross-section, stranded (max) | 240 mm² |
| Connection 2: Connection type | Screws |
| Connection 2: Stripping length | 30 mm |
| Connection 2: Clamping points per pole | 2 |
| Connection 2: Suitable for Cu conductors | 1 |
| Connection 2: Suitable for Al conductors | 1 |
| Connection 2: Connectable conductor cross-section, single-wire (min) | 25 mm² |
| Connection 2: Connectable conductor cross-section, single-wire (max) | 50 mm² |
| Connection 2: Connectable conductor cross-section, stranded (min) | 25 mm² |
| Connection 2: Connectable conductor cross-section, stranded (max) | 120 mm² |
| Width | 55 mm |
|---|---|
| Length | 115 mm |
| Height | 120 mm |
| Weight | 0.951 kg |
| Glow-wire flammability according to EN 60695-2-11 | 960 °C |
|---|
| Connection 1: Tightening moment | 40 Nm |
|---|---|
| Connection 2: Tightening torque | 40 Nm |
| EAN | 4013902340859 |
|---|---|
| Packing Unit Code | CT |
| ETIM Class | EC000897 |
| Custom tariff number | 85369010 |
| Insulating body material | Thermoplastic |
|---|
