Busbar enclosures
Productnumber: 04025401 | Dimensions: 320 x 320 x 179 mm

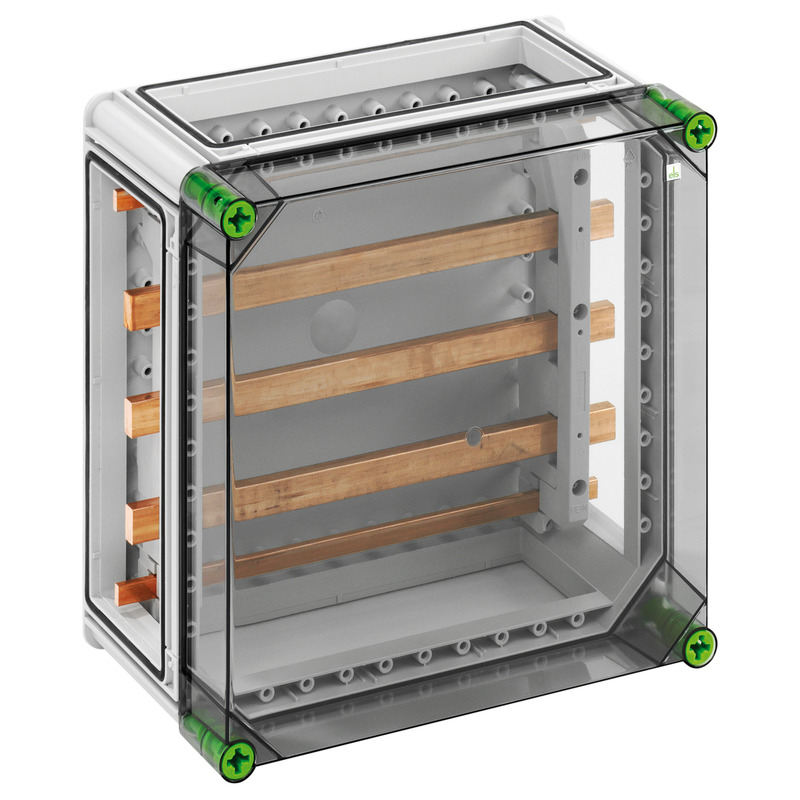

Busbar housing, 5-pole, 400 A, L1...L3: 20 x 10 mm, with copper rails, N: 20 x 10 mm, PE: 12 x 10 mm, without terminals, for individual fitting, 3 x enclosure connectors (GGV)
with transparent cover
| Rated operating voltage AC | 690 V |
|---|---|
| Rated insulation voltage AC | 690 V |
| Rated insulation voltage DC | 1000 V |
| Protection class | II |
| Type of protection | IP65 |
| with rail system | yes |
| UL Type Rating | 3R |
| Width | 320 mm |
|---|---|
| Length | 320 mm |
| Height | 179 mm |
| Weight | 4.72 kg |
| UV-resistant | yes |
|---|---|
| Halogen free | yes |
| Glow-wire flammability according to EN 60695-2-11 | 960 °C |
| Type of fastening | Surface mounted |
|---|---|
| Impact strength | IK08 |
| Cover screw torque | 2.5 Nm |
| Stackable | yes |
| max. relative humidity 25°C | 95 % |
|---|---|
| max. relative humidity 40°C | 50 % |
| Min. ambient temperature | -25 °C |
| Max. ambient temperature | 40 °C |
| 24h ambient temperature | 35 °C |
| Installation location | protected outdoor areas |
| EAN | 4013902051786 |
|---|---|
| Packing Unit Code | CT |
| ETIM Class | EC002274 |
| Custom tariff number | 85389099 |
| Base unit material | Polycarbonate |
|---|---|
| Cover material | Polycarbonate |
| Sealing material | Polyurethane |
| Cover screw material | Polyamide, glass-fibre reinforced |
