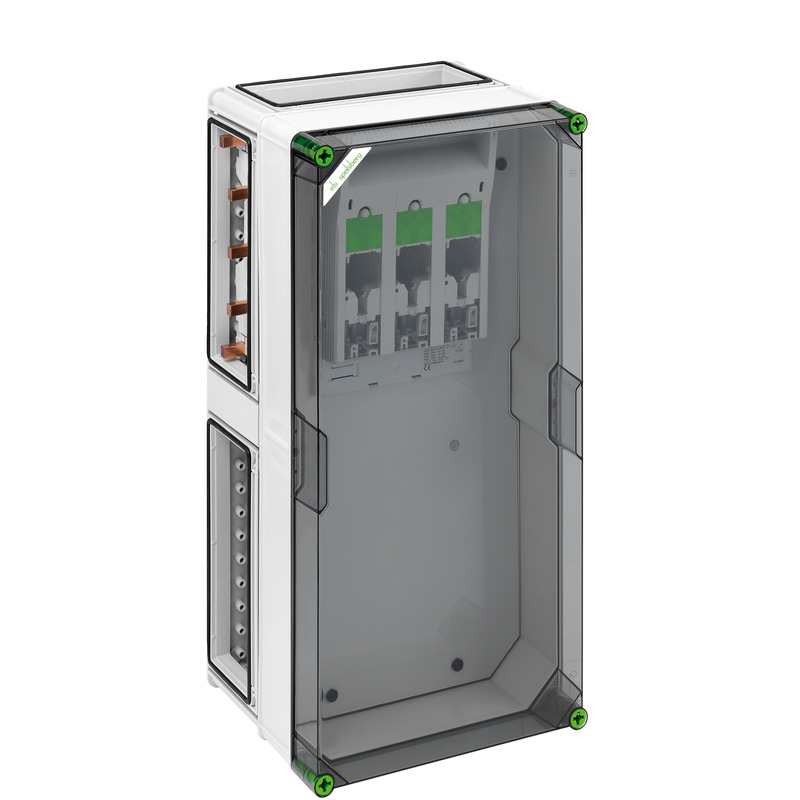

NH fuse enclosure
Productnumber: 04611501 | Dimensions: 640 x 640 x 254 mm
busbar enclosure, equipped with 1 x NH 1 fuse switch disconnector enclosure, Screw connection M10, bottom side output, 5-pole busbar, N terminal 16 - 120 mm², PE terminal 16 - 120 mm², 4 x enclosure connectors (GGV)
busbar system 400 A, with transparent cover
| Rated operating voltage AC | 690 V |
|---|---|
| Protection class | II |
| Type of protection | IP65 |
| Rated current | 400 A |
| UL Type Rating | 3R |
| Width | 640 mm |
|---|---|
| Length | 640 mm |
| Height | 254 mm |
| Weight | 10.346 kg |
| UV-resistant | yes |
|---|---|
| Halogen free | yes |
| Glow-wire flammability according to EN 60695-2-11 | 960 °C |
| Impact strength | IK08 |
|---|---|
| Cover screw torque | 2.5 Nm |
| Stackable | yes |
| max. relative humidity 25°C | 95 % |
|---|---|
| max. relative humidity 40°C | 50 % |
| Min. ambient temperature | -25 °C |
| Max. ambient temperature | 40 °C |
| 24h ambient temperature | 35 °C |
| Installation location | protected outdoor areas |
| EAN | 4013902052257 |
|---|---|
| Packing Unit Code | CT |
| ETIM Class | EC000249 |
| Custom tariff number | 85369095 |
| Base unit material | Polycarbonate |
|---|---|
| Cover material | Polycarbonate, glass-fibre reinforced |
| Sealing material | Polyurethane |
| Cover screw material | Polyamide, glass-fibre reinforced |
