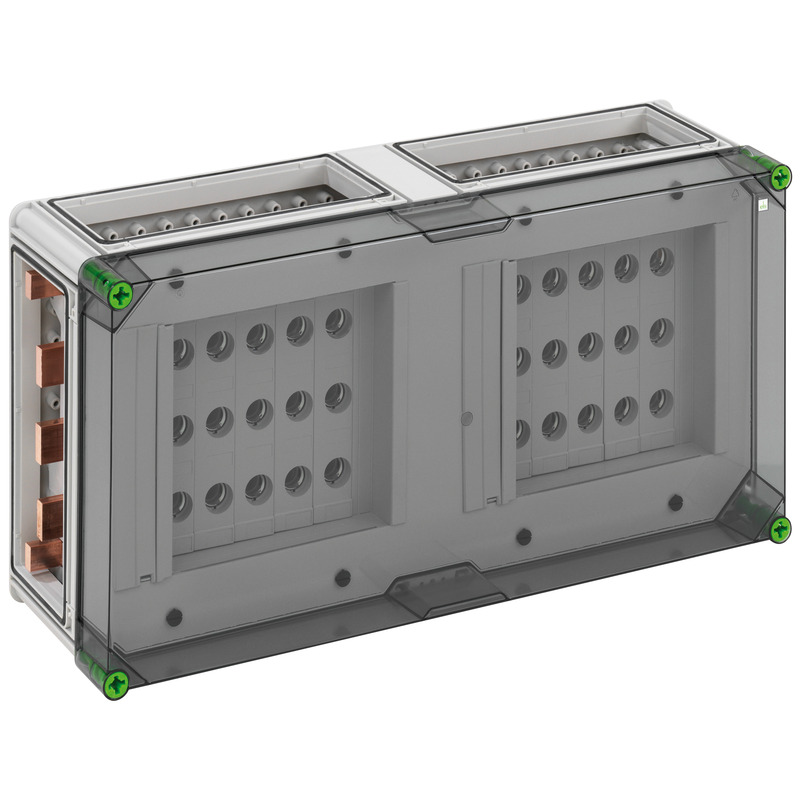

NEOZED® fuse enclosure
Productnumber: 05541086 | Dimensions: 640 x 320 x 179 mm
NEOZED® fuse enclosure, 10 x 3-pole D02 bus-mounting fuse base, E 18 thread, Rated current 63 A, Screw connection 1.5 - 25 mm², on 5-pole busbar, with 5 busbar terminals 4 - 35 mm², N terminal 1.5 - 16 mm², PE terminal 1.5 - 16 mm², 4 x enclosure connectors (GGV)
on busbar system 630 A, with transparent cover
| Rated operating voltage AC | 400 V |
|---|---|
| Protection class | II |
| Type of protection | IP65 |
| Rated current | 630 A |
| UL Type Rating | 3R |
| Width | 640 mm |
|---|---|
| Length | 320 mm |
| Height | 179 mm |
| Weight | 13.042 kg |
| UV-resistant | yes |
|---|---|
| Halogen free | yes |
| Glow-wire flammability according to EN 60695-2-11 | 960 °C |
| Impact strength | IK08 |
|---|---|
| Cover screw torque | 2.5 Nm |
| Stackable | yes |
| max. relative humidity 25°C | 95 % |
|---|---|
| max. relative humidity 40°C | 50 % |
| Min. ambient temperature | -25 °C |
| Max. ambient temperature | 40 °C |
| 24h ambient temperature | 35 °C |
| Installation location | protected outdoor areas |
| EAN | 4013902858217 |
|---|---|
| Packing Unit Code | CT |
| ETIM Class | EC000100 |
| Custom tariff number | 85369095 |
| Base unit material | Polycarbonate |
|---|---|
| Cover material | Polycarbonate, glass-fibre reinforced |
| Sealing material | Polyurethane |
| Cover screw material | Polyamide, glass-fibre reinforced |
