Rahmenklemme f. NH1-Trenner KRK NH 1 (07674101) Busbar housing with operating equipment: Spelsberg

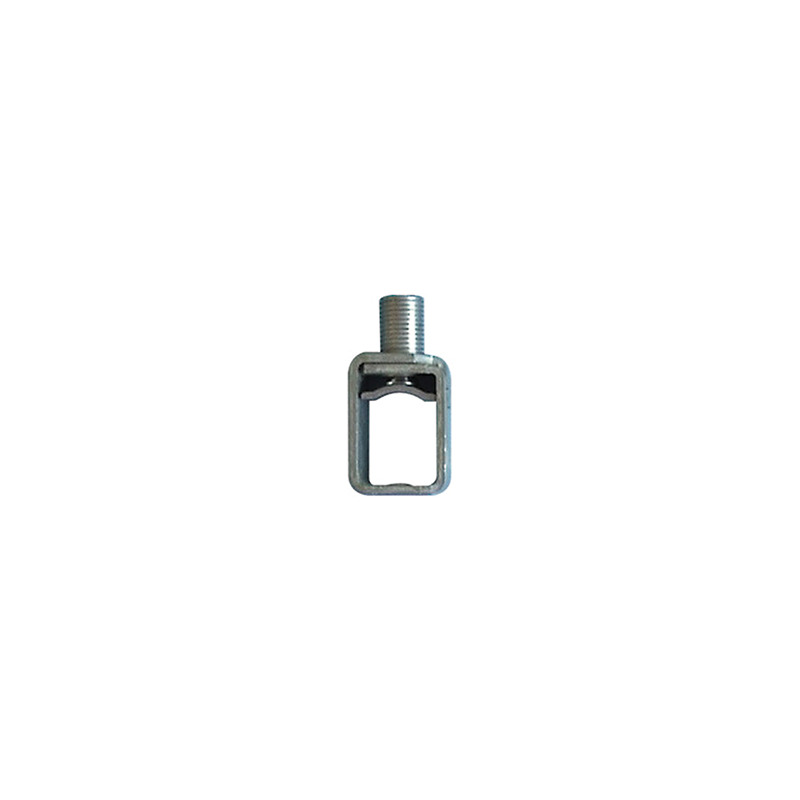

Frame clamp for NH1 isolator

KRK NH 1

Productnumber: 07674101 | Dimensions: 18,1 x 28,5 x 40 mm

Frame clamps, for NH fuse base, for NH fuse switch disconnector, for PE/N terminals, for aluminium and copper conductors

for AL/CU conductor 1 x (10-70), See technical appendix for aluminium conductor, Set = 3 pcs.

electrical characteristics

shockproof No
Connection 1: Connection type Screws
Connection 1: Clamping points per pole 1
Connection 1: Suitable for Cu conductors 1
Connection 1: Suitable for Al conductors 1
Connection 1: Connectable conductor cross-section, single-wire (min) 35 mm²
Connection 1: Connectable conductor cross-section, single-wire (max) 150 mm²
Connection 1: Connectable conductor cross-section, stranded (min) 35 mm²
Connection 1:Connectable conductor cross-section, stranded (max) 150 mm²

Dimensions

Width 18.1 mm
Length 28.5 mm
Height 40 mm
Weight 0.209 kg

mechanical properties

Connection 1: Tightening moment 12 Nm

Sales Information

EAN 4013902566907
Packing Unit Code C62
ETIM Class EC002498
Custom tariff number 85369010
