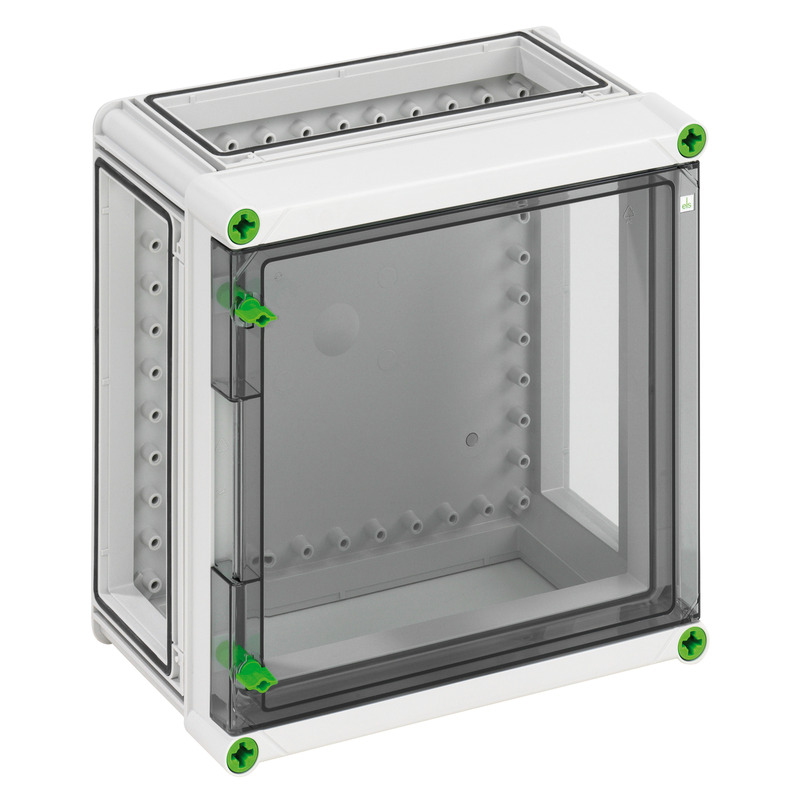

Empty Enclosure, 3 x enclosure connectors (GGV)
with transparent hinged door
Empty enclosure
GTi 2-KT-t
Productnumber: 01100201 | Dimensions: 320 x 320 x 179 mm
electrical characteristics
| Rated insulation voltage AC | 690 V |
|---|---|
| Rated insulation voltage DC | 1000 V |
| Protection class | II |
| Type of protection | IP65 |
| UL Type Rating | 3R |
Colours
| Base unit colour | grey |
|---|
Dimensions
| Width | 320 mm |
|---|---|
| Length | 320 mm |
| Height | 179 mm |
| Inner height | 157 mm |
| Weight | 2 kg |
Material characteristics
| UV-resistant | yes |
|---|---|
| Halogen free | yes |
| Flammability class according with UL94 | V2 |
| Glow-wire flammability according to EN 60695-2-11 | 960 °C |
mechanical properties
| Type of fastening | Surface mounted |
|---|---|
| Impact strength | IK08 |
| Cover screw torque | 2.5 Nm |
| Stackable | yes |
Ambient conditions
| max. relative humidity 25°C | 95 % |
|---|---|
| max. relative humidity 40°C | 50 % |
| Min. ambient temperature | -35 °C |
| Max. ambient temperature | 80 °C |
| 24h ambient temperature | 60 °C |
| Installation location | protected outdoor areas |
Sales Information
| EAN | 4013902050352 |
|---|---|
| Packing Unit Code | CT |
| ETIM Class | EC000058 |
| Custom tariff number | 85389099 |
Material
| Base unit material | Polycarbonate |
|---|---|
| Cover material | Polycarbonate |
| Sealing material | Polyurethane |
| Cover screw material | Polyamide, glass-fibre reinforced |

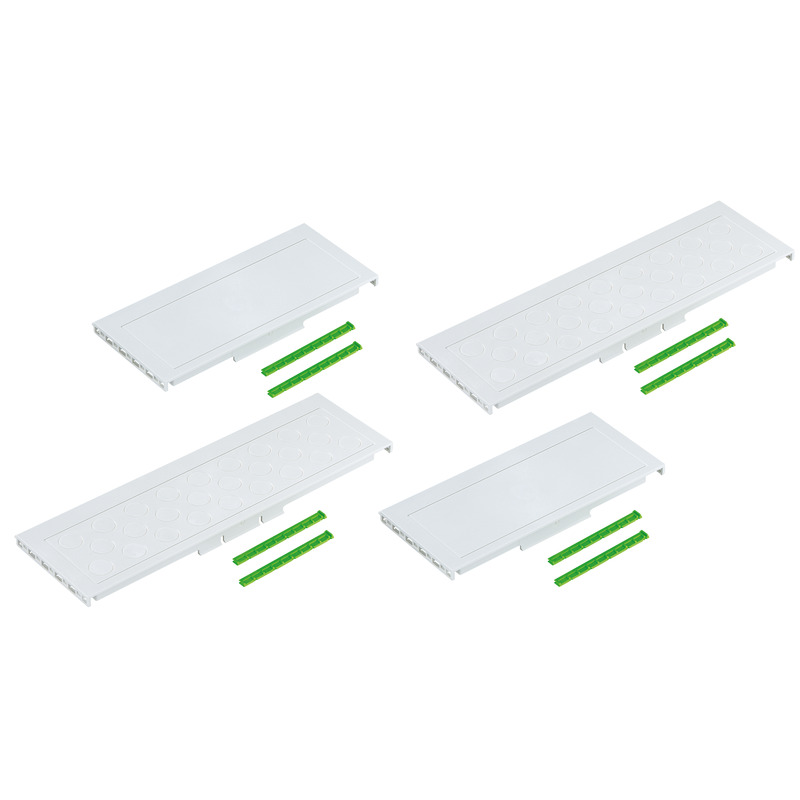

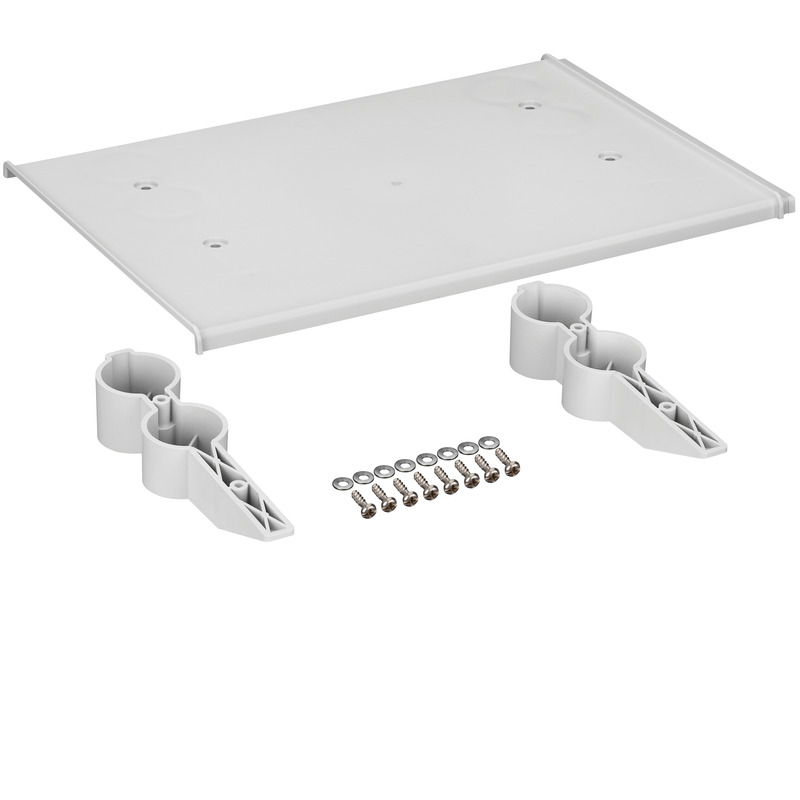

Accessories
CAD-Data
| CAD-Data | Download 3D-CAD-Data |
|---|
Tender text
Log in to mySpelsberg to download tender texts. mySpelsberg Login

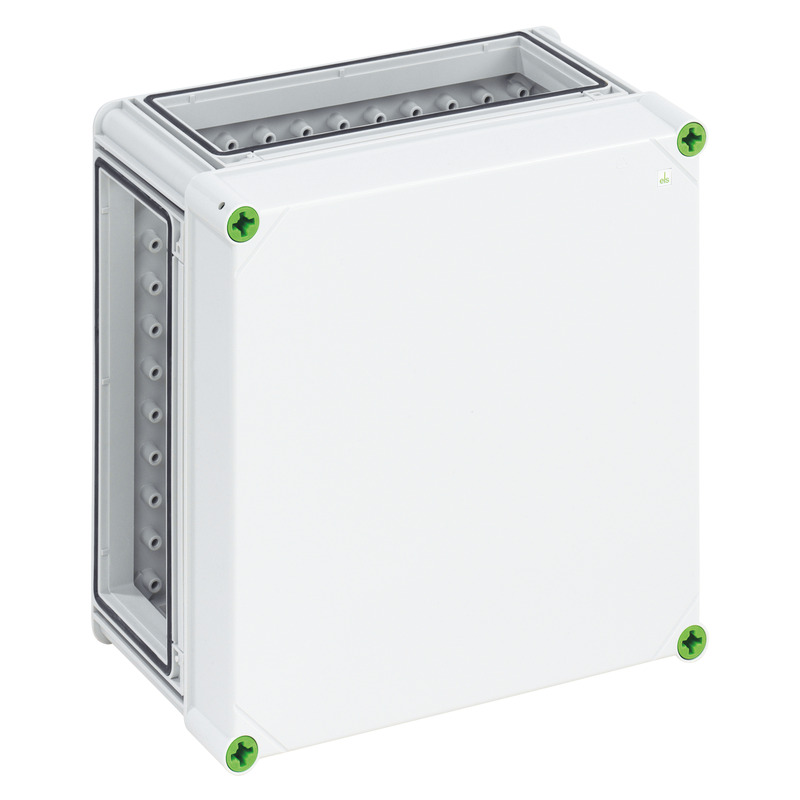

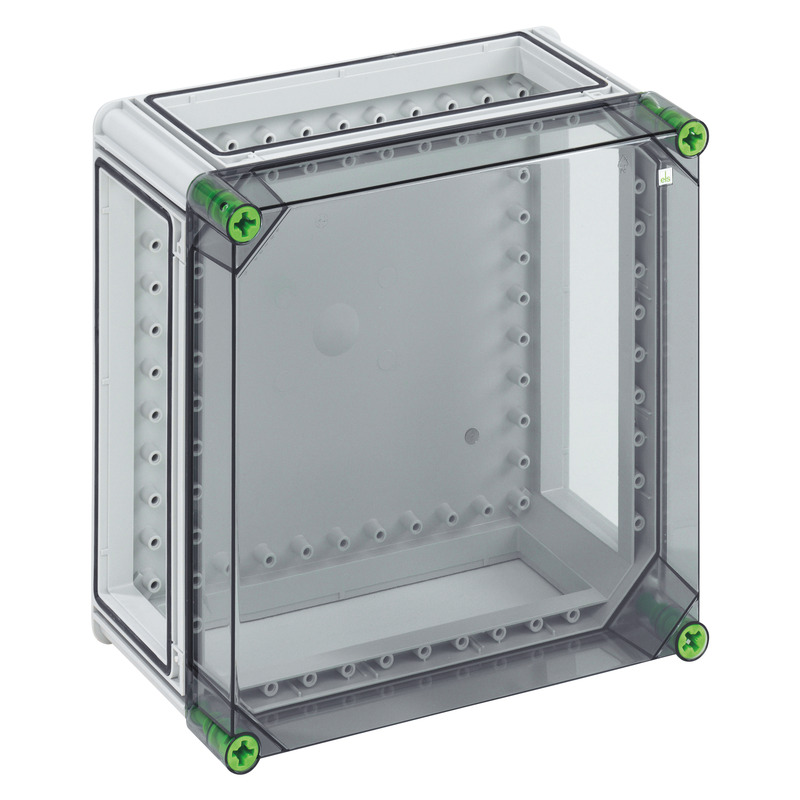

Similar products
