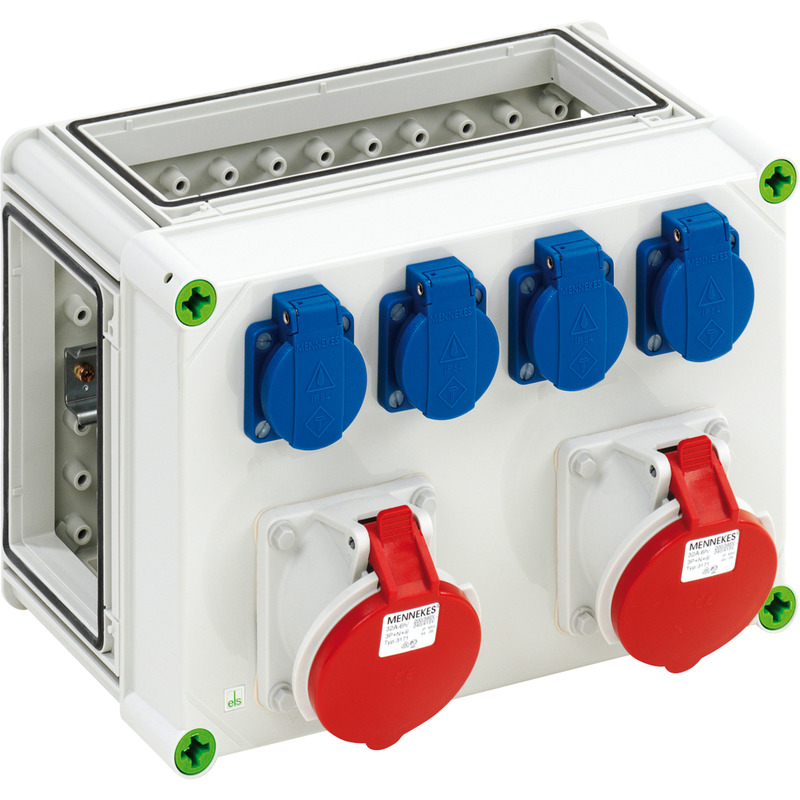

Socket housing with standard rail, sockets pre-wired, 3 x enclosure connectors (GGV)
Socket enclosure
GTV 491
Productnumber: 01049101 | Dimensions: 320 x 220 x 179 mm
Built-in devices
| SCHUKO® plug socket (on front), 230V | 4 |
|---|---|
| CEE plug socket outlet (on front) 32A, 400V | 2 |
electrical characteristics
| Rated operating voltage AC | 400 V |
|---|---|
| Rated insulation voltage AC | 690 V |
| Rated insulation voltage DC | 1000 V |
| Protection class | II |
| Type of protection | IP44 |
Dimensions
| Width | 320 mm |
|---|---|
| Length | 220 mm |
| Height | 179 mm |
| Weight | 2.7 kg |
Material characteristics
| UV-resistant | yes |
|---|---|
| Halogen free | yes |
| Flammability class according with UL94 | V2 |
| Glow-wire flammability according to EN 60695-2-11 | 960 °C |
mechanical properties
| Impact strength | IK08 |
|---|---|
| Cover screw torque | 2.5 Nm |
| Stackable | yes |
Ambient conditions
| max. relative humidity 25°C | 95 % |
|---|---|
| max. relative humidity 40°C | 50 % |
| Min. ambient temperature | -25 °C |
| Max. ambient temperature | 40 °C |
| 24h ambient temperature | 35 °C |
| Installation location | protected outdoor areas |
Sales Information
| EAN | 4013902055081 |
|---|---|
| Packing Unit Code | CT |
| ETIM Class | EC000379 |
| Custom tariff number | 85369095 |
Material
| Base unit material | Polycarbonate |
|---|---|
| Cover material | Polycarbonate |
| Sealing material | Polyurethane |
| Cover screw material | Polyamide, glass-fibre reinforced |
Accessories
Tender text
Log in to mySpelsberg to download tender texts. mySpelsberg Login

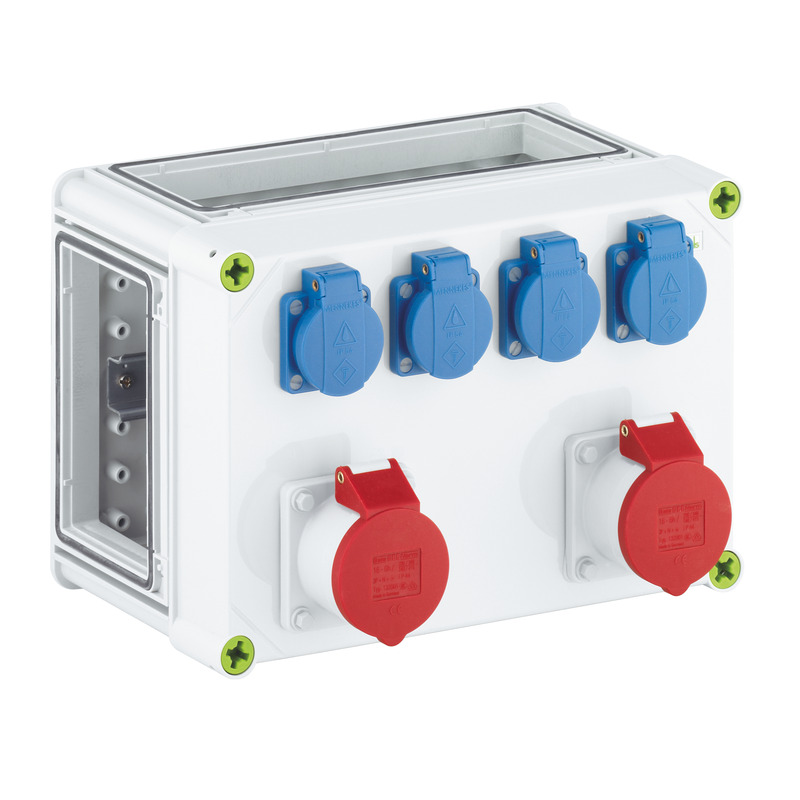

Similar products
