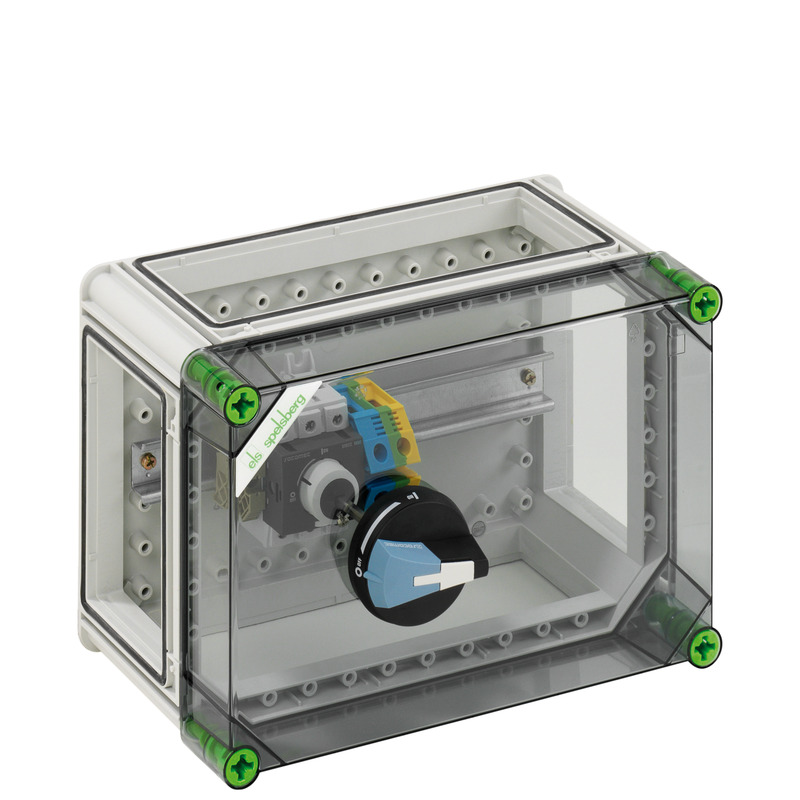

Switch disconnector enclosure with external actuation, lockable, 1 x load disconnector switch 80A, 3-pole switching, Cage-type terminal 2.5 - 35 mm², for CU conductors, PE/N terminal 35 mm², 3 x enclosure connectors (GGV)
with transparent cover
Empty enclosure for switchgear
Productnumber: 03210801 | Dimensions: 320 x 220 x 179 mm
Switch disconnector enclosure with external actuation, lockable, 1 x load disconnector switch 80A, 3-pole switching, Cage-type terminal 2.5 - 35 mm², for CU conductors, PE/N terminal 35 mm², 3 x enclosure connectors (GGV)
with transparent cover
Rated operating voltage AC | 690 V |
---|---|
Rated operating voltage DC | 400 V |
Rated insulation voltage AC | 690 V |
Rated insulation voltage DC | 1000 V |
Protection class | II |
Type of protection | IP65 |
Rated current | 80 A |
UL Type Rating | 3R |
Width | 320 mm |
---|---|
Length | 220 mm |
Height | 179 mm |
Weight | 2.7643 kg |
UV-resistant | yes |
---|---|
Halogen free | yes |
Flammability class according with UL94 | V2 |
Glow-wire flammability according to EN 60695-2-11 | 960 °C |
Impact strength | IK08 |
---|---|
Cover screw torque | 2.5 Nm |
Stackable | yes |
max. relative humidity 25°C | 95 % |
---|---|
max. relative humidity 40°C | 50 % |
Min. ambient temperature | -25 °C |
Max. ambient temperature | 40 °C |
24h ambient temperature | 35 °C |
Installation location | protected outdoor areas |
EAN | 4013902051588 |
---|---|
Packing Unit Code | CT |
ETIM Class | EC000249 |
Custom tariff number | 85369095 |
Base unit material | Polycarbonate |
---|---|
Cover material | Polycarbonate |
Sealing material | Polyurethane |
Cover screw material | Polyamide, glass-fibre reinforced |
