GTE 440

Productnumber: 03244001 | Dimensions: 320 x 640 x 179 mm

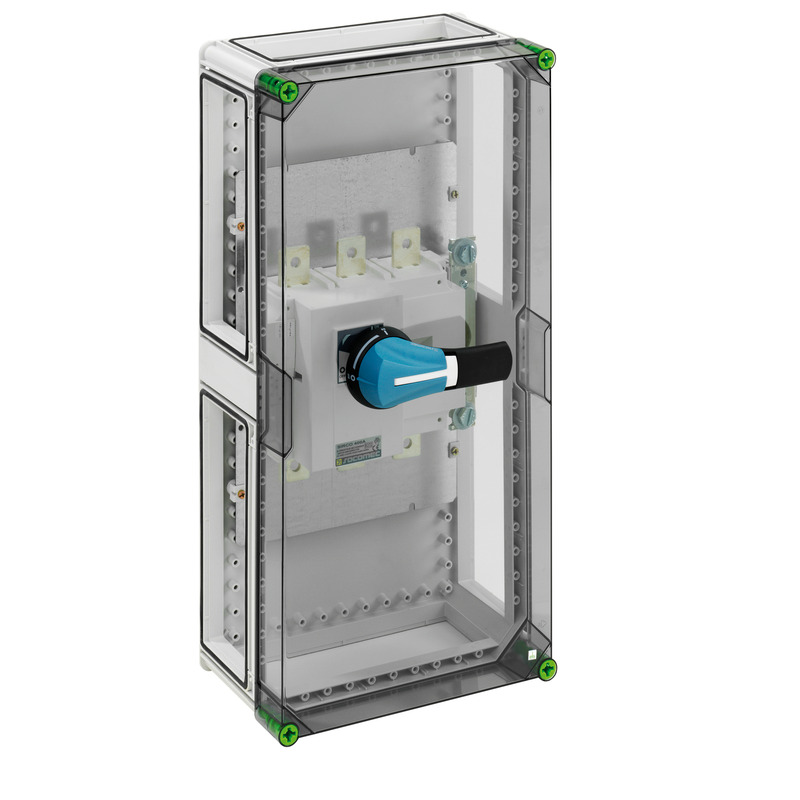

Switch disconnector enclosure with external actuation, lockable, 1 x load disconnector switch 400A, 3-pole switching, Screw connection M10, PE/N terminal M12, 4 x enclosure connectors (GGV)

with transparent cover

electrical characteristics

Rated operating voltage AC	690 V
Rated operating voltage DC	500 V
Rated insulation voltage AC	690 V
Rated insulation voltage DC	1000 V
Protection class	II
Type of protection	IP65
Rated current	440 A
UL Type Rating	3R

Dimensions

Width	320 mm
Length	640 mm
Height	179 mm
Weight	9.338 kg

Material characteristics

UV-resistant	yes
Halogen free	yes
Flammability class according with UL94	V2
Glow-wire flammability according to EN 60695-2-11	960 °C

mechanical properties

Impact strength	IK08
Cover screw torque	2.5 Nm
Stackable	yes

Ambient conditions

max. relative humidity 25°C	95 %
max. relative humidity 40°C	50 %
Min. ambient temperature	-25 °C
Max. ambient temperature	40 °C
24h ambient temperature	35 °C
Installation location	protected outdoor areas

Sales Information

EAN	4013902051625
Packing Unit Code	CT
ETIM Class	EC000249
Custom tariff number	85369095

Material

Base unit material	Polycarbonate
Cover material	Polycarbonate
Sealing material	Polyurethane
Cover screw material	Polyamide, glass-fibre reinforced

Download Data Sheet

Download Data Sheet

Dimensioned drawing

Dimensional drawing	jpg (1 MB)
Dimensional drawing	pdf (359 KB)
Dimensional drawing	jpg (1 MB)
Dimensional drawing	pdf (315 KB)
Dimensional drawing	dxf (3 MB)
Dimensional drawing	dwg (572 KB)
