AKi 3-th

AKi 3-th

Empty enclosure

AKi 3-th

Productnumber: 74790301 | Dimensions: 300 x 450 x 209 mm

Empty enclosure, protection class IP65, Polycarbonate, U_i=690V AC, U_i=1000V DC, internal fixing points, for installations in industrial environments and protected outdoor areas

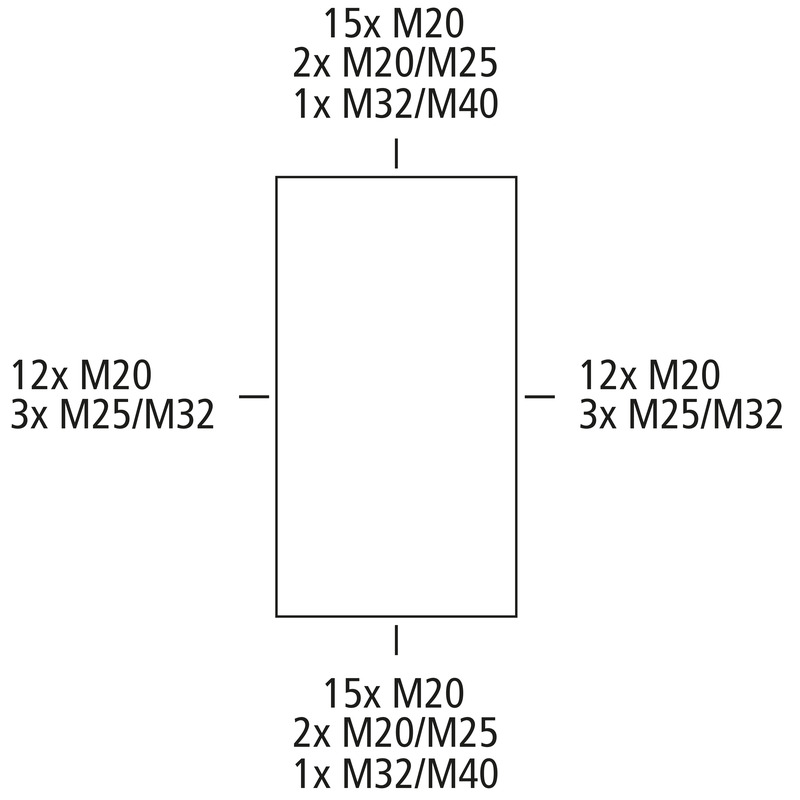

Box: Polycarbonate, Lid: Polycarbonate, transparent, knockouts, M20/M25/M32/M40, (66 side)

Accessories supplied:
10 Double-membrane seal IP66 M20 sealing range 7 - 12 mm, 2 Double-membrane seals IP66 M25 sealing range 9 - 16 mm, 2 Double-membrane seal M32 sealing range 14 - 21 mm, 1 Double-membrane seal IP66 M40 sealing range 19 - 28 mm

electrical characteristics

Rated insulation voltage AC	690 V
Rated insulation voltage DC	1000 V
Protection class	II
Type of protection	IP65
UL Type Rating	not specified

Colours

Cover colour	transparent

Dimensions

Width	300 mm
Length	450 mm
Height	209 mm
Weight	2.635 kg

Material characteristics

UV-resistant	yes
Halogen free	yes
Flammability class according with UL94	V2
Glow-wire flammability according to EN 60695-2-11	960 °C

mechanical properties

Type of fastening	Wall/ceiling mounting
Impact strength	IK08
Sealable	yes
Cover screw torque	1.2 Nm
Stackable	yes
Type of top part	Cover
Fastening	internal fixing points

Ambient conditions

max. relative humidity 25°C	95 %
max. relative humidity 40°C	50 %
Min. ambient temperature	-35 °C
Max. ambient temperature	80 °C
24h ambient temperature	60 °C
Installation location	protected outdoor areas

Sales Information

EAN	4013902885114
Packing Unit Code	CT
ETIM Class	EC000261
Custom tariff number	85389099

Material

Base unit material	Polycarbonate
Cover material	Polycarbonate
Sealing material	Polyurethane
Cover screw material	Polyamide, glass-fibre reinforced

Download Data Sheet

Download Data Sheet

Dimensioned drawing

Dimensional drawing	dwg (2 MB)
Dimensional drawing	jpg (1 MB)
Dimensional drawing	pdf (770 KB)
Dimensional drawing	dxf (10 MB)

Certificate

CE Declaration DE/EN/FR	pdf (81 KB)
CE Declaration DE/EN/PL	pdf (87 KB)
UKCA Declaration EN	pdf (49 KB)
