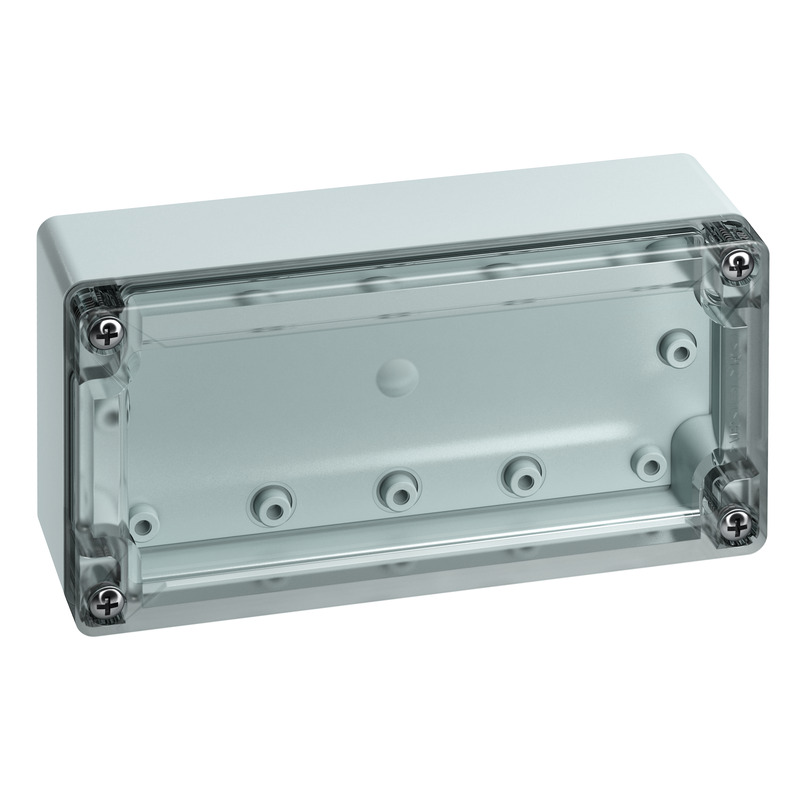

Empty enclosure
Productnumber: 10100601 | Dimensions: 162 x 82 x 55 mm
Empty enclosure, protection class IP66/IP67, ABS, Ui=690V AC, Ui=1000V DC, internal fixing points, for standard installations indoors, with quick release
Box: ABS, grey, Lid: Polycarbonate, transparent, smooth sidewalls
Accessories supplied:
Cover retainer, 4 fastening screws for accessories
| Rated insulation voltage AC | 690 V |
|---|---|
| Rated insulation voltage DC | 1000 V |
| Protection class | II |
| Type of protection | IP66/IP67 |
| UL Type Rating | not specified |
| Base unit colour | grey |
|---|---|
| Cover colour | transparent |
| Width | 162 mm |
|---|---|
| Length | 82 mm |
| Height | 55 mm |
| Weight | 0.205 kg |
| UV-resistant | no |
|---|---|
| Halogen free | yes |
| Flammability class according with UL94 | HB |
| Glow-wire flammability according to EN 60695-2-11 | 650 °C |
| Type of fastening | Wall/ceiling mounting |
|---|---|
| Impact strength | IK07 |
| Stackable | yes |
| Type of top part | Cover |
| Fastening | internal fixing points |
| max. relative humidity 25°C | 95 % |
|---|---|
| max. relative humidity 40°C | 50 % |
| Min. ambient temperature | -25 °C |
| Max. ambient temperature | 40 °C |
| 24h ambient temperature | 35 °C |
| Installation location | Indoors |
| EAN | 4013902813803 |
|---|---|
| Packing Unit Code | C62 |
| ETIM Class | EC000261 |
| Custom tariff number | 85389099 |
| Base unit material | ABS |
|---|---|
| Cover material | Polycarbonate |
| Sealing material | Polyurethane |
| Cover screw material | Stainless steel V2A |
| CAD-Data | Download 3D-CAD-Data |
|---|
