Normschiene NS 35-104 (19810701) Plain, with mounting cams: Spelsberg

Standard rail

NS 35-104

Productnumber: 19810701 | Dimensions: 35 x 104 x 7,5 mm

Standard rail acc. to DIN EN 60715, 35 x 7.5mm

for TG 1208, length 104 mm

electrical characteristics

Suitable for Concrete construction

Dimensions

Width 35 mm
Length 104 mm
Height 7.5 mm
Weight 0.0366 kg

Sales Information

EAN 4013902814671
Packing Unit Code C62
ETIM Class EC001285
Custom tariff number 73089098

Download Data Sheet

Download Data Sheet

Dimensioned drawing

Dimensional drawing pdf (34 KB)
Dimensional drawing dxf (107 KB)
Dimensional drawing dwg (47 KB)
Dimensional drawing jpg (635 KB)

CAD-Data

CAD-Data Download 3D-CAD-Data

Your request

Your information

Companydata

CAD-Format

Tender text

Similar products

Standard rail NS 35-66

  • Dimensions : 35 x 66 x 7,5 mm
  • Productnumber: 19806801

for TG 88, length 66 mm



Standard rail acc. to DIN EN 60715, 35 x 7.5mm



Standard rail NS 35-108

  • Dimensions : 35 x 108 x 7,5 mm
  • Productnumber: 19811001

for TG 1212, length 108 mm



Standard rail acc. to DIN EN 60715, 35 x 7.5mm



Standard rail NS 35-144/2

  • Dimensions : 35 x 144 x 7,5 mm
  • Productnumber: 19814601

for TG 1608 and TG 1612, length 144 mm



Standard rail acc. to DIN EN 60715, 35 x 7.5mm



Standard rail NS 35-184

  • Dimensions : 35 x 184 x 7,5 mm
  • Productnumber: 19818601

for TG 2012, length 184 mm



Standard rail acc. to DIN EN 60715, 35 x 7.5mm



Standard rail NS 35-168

  • Dimensions : 35 x 168 x 7,5 mm
  • Productnumber: 19817001

for TG 2015, length 168 mm



Standard rail acc. to DIN EN 60715, 35 x 7.5mm



Standard rail NS 35-220

  • Dimensions : 35 x 220 x 7,5 mm
  • Productnumber: 19822201

for TG 2516, length 220 mm



Standard rail acc. to DIN EN 60715, 35 x 7.5mm

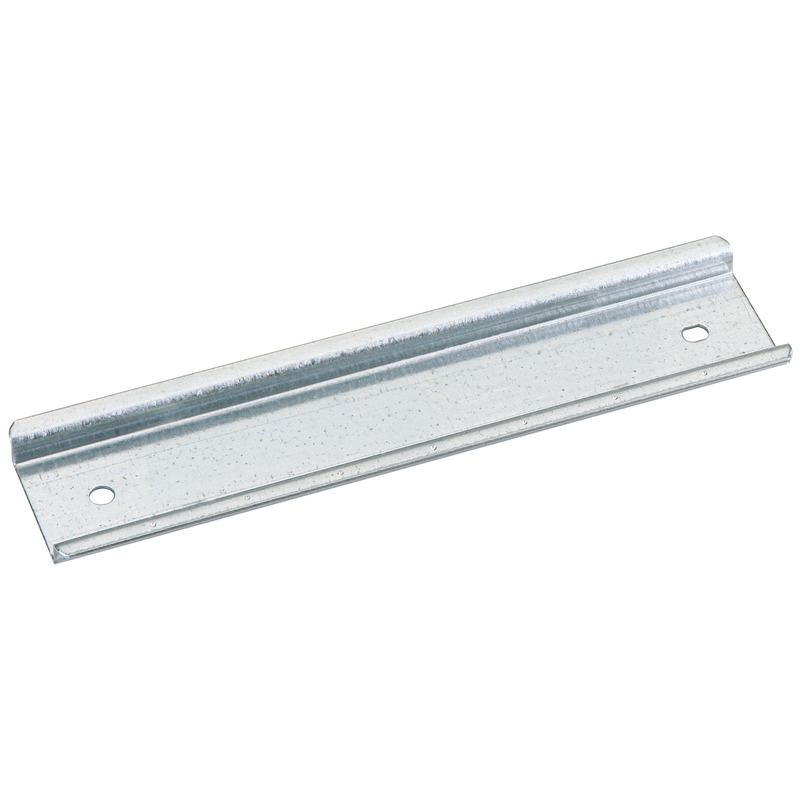

Standard rail NS 35-283,5
