TKS AP-9

Adapter frame

TKS AP-9

Productnumber: 14400901 | Dimensions: 24,6 x 58,6 x 16,5 mm

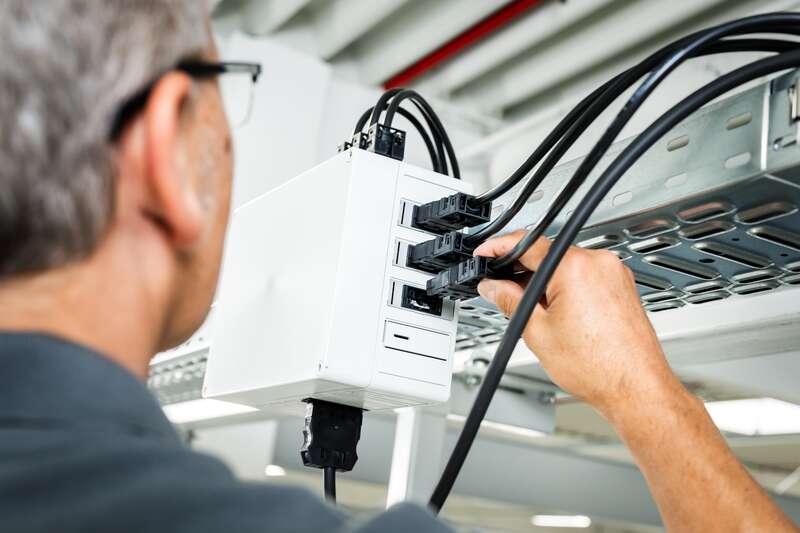

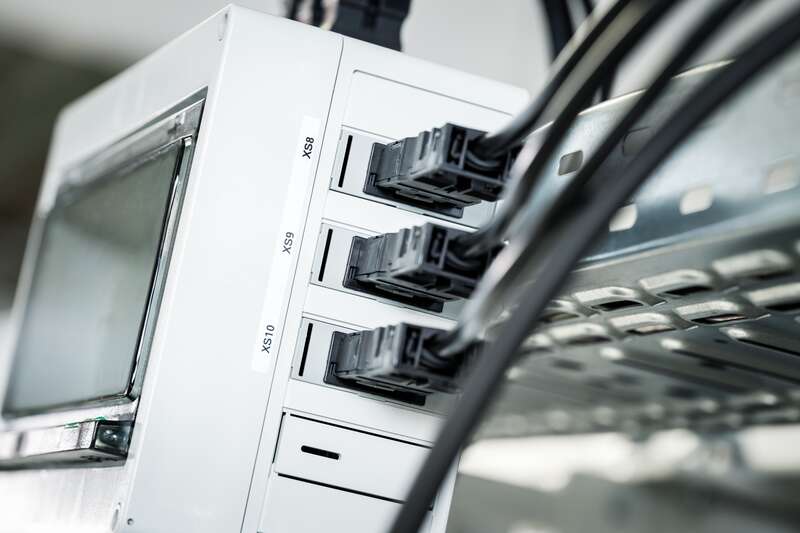

Adapter frame for mounting WINSTA® plug connectors in TKS empty enclosures, set = 10 pcs.k.

For Typ WINSTA® KNX type plug connectors

Colours

Accessory colour traffic grey

Dimensions

Width 24.6 mm
Length 58.6 mm
Height 16.5 mm
Weight 0.0023 kg

Material characteristics

Halogen free yes
Flammability class according with UL94 V0
Glow-wire flammability according to EN 60695-2-11 850 °C

Ambient conditions

Min. ambient temperature -35 °C
Max. ambient temperature 85 °C
Installation location Indoors

Sales Information

EAN 4013902695713
Packing Unit Code C62
ETIM Class EC002863
Custom tariff number 85389099

Material

Accessory material Polyamide 6, glass-fibre reinforced

Download Data Sheet

Download Data Sheet

Installation instructions

Assembly instruction DE/EN pdf (284 KB)

Dimensioned drawing

Dimensional drawing pdf (313 KB)
Dimensional drawing dwg (361 KB)
Dimensional drawing dxf (2 MB)

Tender text
