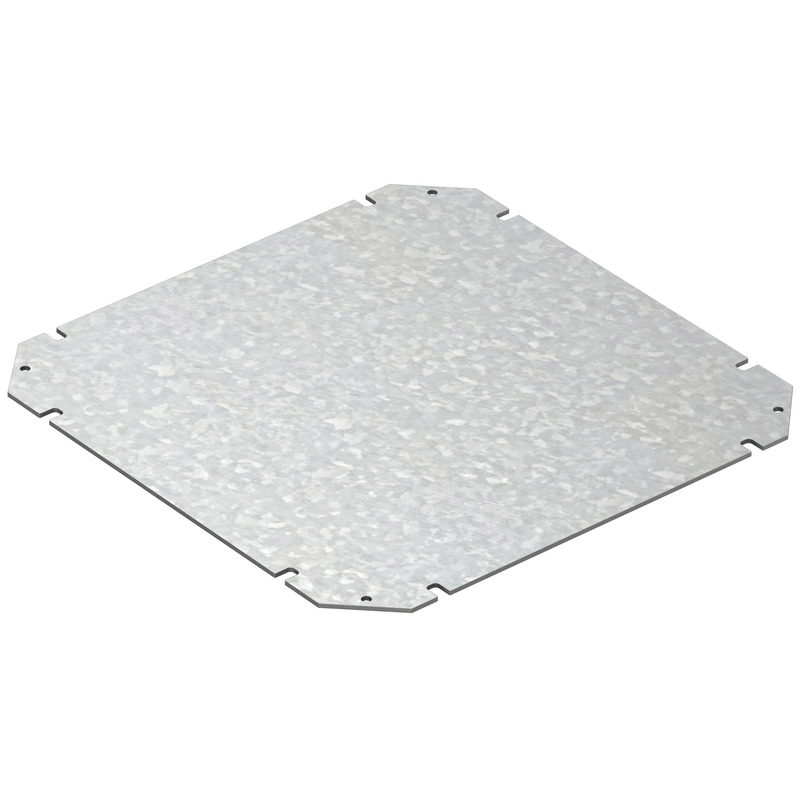

GEOS MPS-3030

Mounting plate

GEOS MPS-3030

Productnumber: 72001301 | Dimensions: 250 x 250 x 2 mm

Mounting plate made of galvanized steel, incl. fixing screws, for bottom mounting, optional mounting with mounting holder at various heights possible

for GEOS-L/S 3030-18 to 22

Dimensions

Width 250 mm
Length 250 mm
Height 2 mm
Weight 0.97 kg

Sales Information

EAN 4013902614103
Packing Unit Code C62
ETIM Class EC000213
Custom tariff number 73089059

Download Data Sheet

Download Data Sheet

Handbook

Product manual EN pdf (13 MB)
Product manual DE pdf (9 MB)

Dimensioned drawing

Dimensional drawing pdf (43 KB)
Dimensional drawing dxf (235 KB)
Dimensional drawing dwg (56 KB)
Dimensional drawing jpg (581 KB)

Certificate

CE Declaration DE/EN/PL pdf (75 KB)
CE Declaration DE/EN/FR pdf (62 KB)
UKCA Declaration EN pdf (50 KB)

CAD-Data

CAD-Data Download 3D-CAD-Data

Your request

Your information
Companydata
CAD-Format

Tender text

Similar products

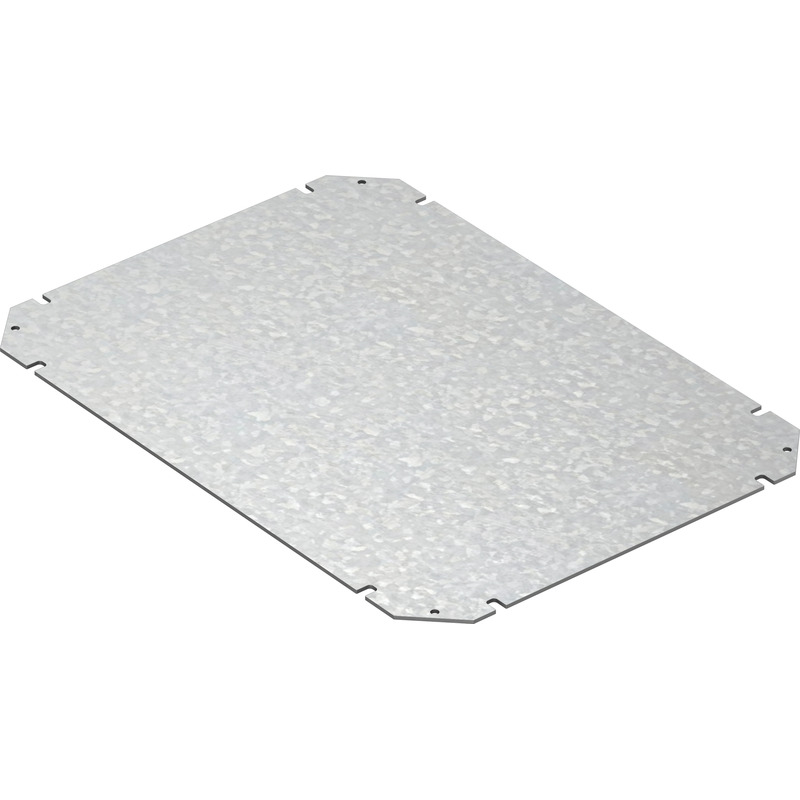

Mounting plate - GEOS MPS-3040

Mounting plate GEOS MPS-3040

  • Dimensions : 250 x 350 x 2 mm
  • Productnumber: 72001401

for GEOS-L/S 3040-18 to 22, GEOS-S 4030-18 to 22



Mounting plate made of galvanized steel, incl. fixing screws, for bottom mounting, optional mounting...



Watchlist
Details

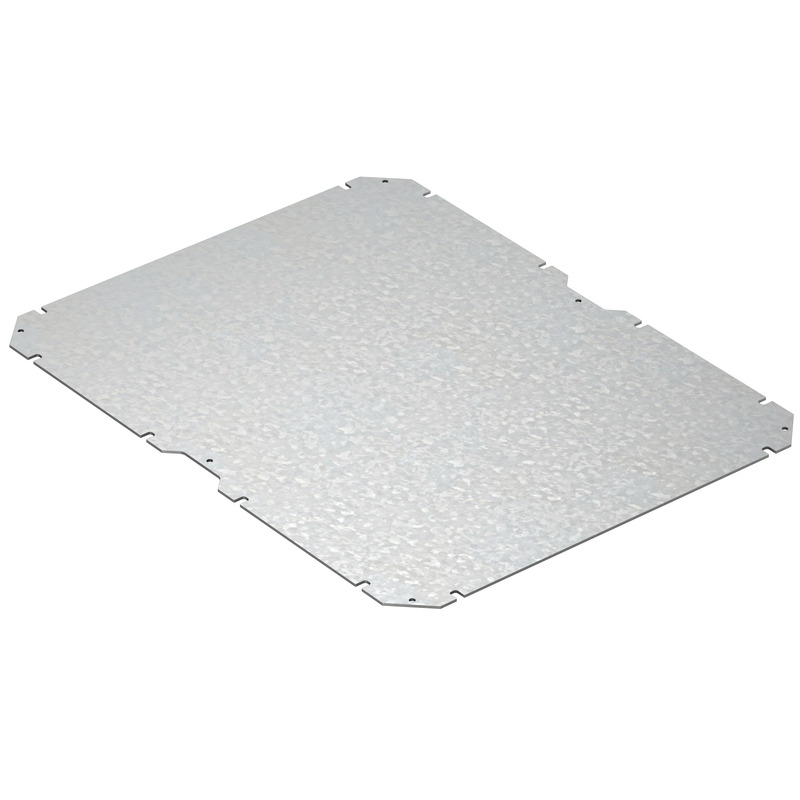

Mounting plate - GEOS MPS-4050
