Außenbefestigungslasche GEOS ABL-10 (72002001) Up to 40 x 50 cm, flexible: Spelsberg

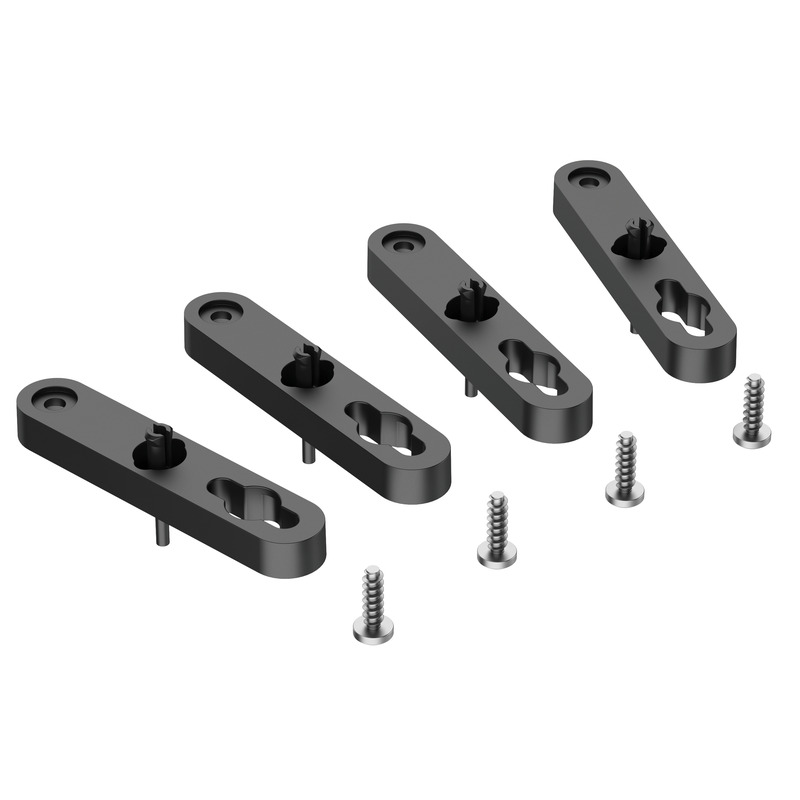

External fixing lug

GEOS ABL-10

Productnumber: 72002001 | Dimensions: 20 x 94 x 10 mm

Plastic outside fastening lip set, possible mounting angle of 0°, 45° or 90°, black, set = 4 pcs.

Wall distance 10 mm

Dimensions

Width 20 mm
Length 94 mm
Height 10 mm
Weight 0.07 kg

Ambient conditions

Installation location unprotected outdoor areas

Sales Information

EAN 4013902614196
Packing Unit Code C62
ETIM Class EC002498
Custom tariff number 39269097

Certificates

Test mark UL (UL 50 & CSA 22.2 No. 94.1-15, UL 50E & CSA C22.2 No. 94.2-15)

Download Data Sheet

Download Data Sheet

Handbook

Product manual EN pdf (13 MB)
Product manual DE pdf (9 MB)

Installation instructions

Assembly instruction DE/EN/FR pdf (58 KB)

Dimensioned drawing

Dimensional drawing pdf (326 KB)
Dimensional drawing dxf (4 MB)
Dimensional drawing dwg (560 KB)
Dimensional drawing jpg (1 MB)

Certificate

CE Declaration DE/EN/FR pdf (62 KB)
UKCA Declaration EN pdf (50 KB)
CE Declaration DE/EN/PL pdf (75 KB)

CAD-Data

CAD-Data Download 3D-CAD-Data

Your request

Your information

Companydata

CAD-Format

Tender text

Similar products

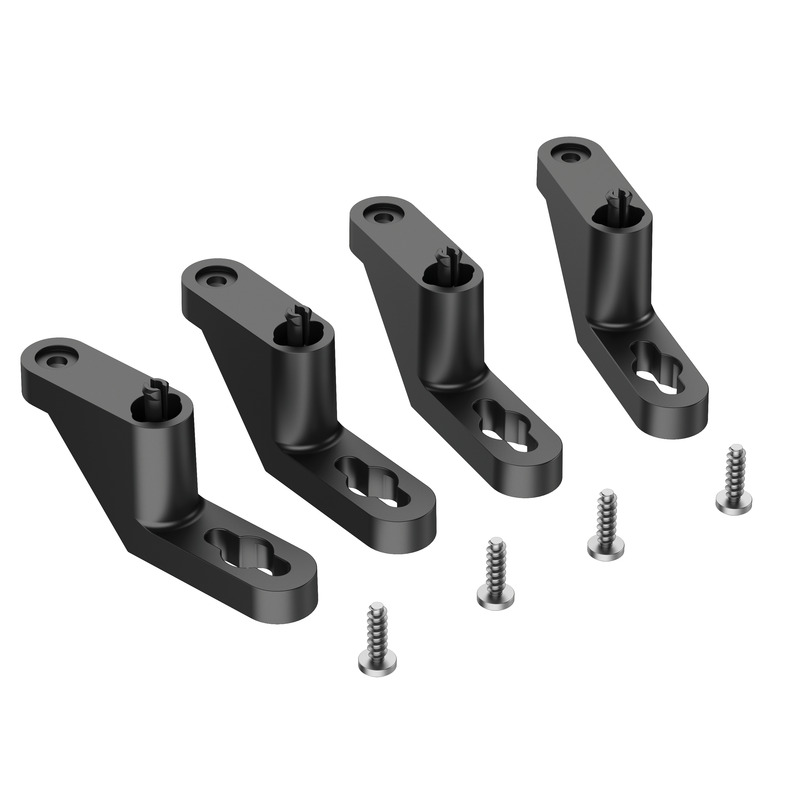

External fixing lug GEOS ABL-40

  • Dimensions : 20 x 95 x 40 mm
  • Productnumber: 72002101

Wall distance 40 mm



Plastic outside fastening lip set, possible mounting angle of 0°, 45° or 90°, black, set = 4 pcs.
