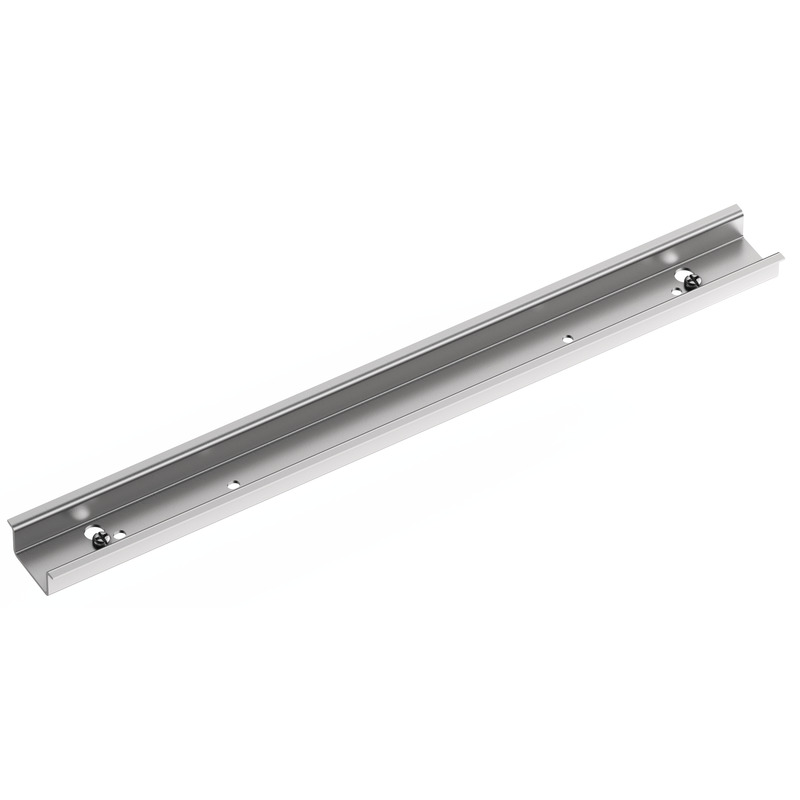

GEOS NS35/15-327

Standard rail

GEOS NS35/15-327

Productnumber: 72003901 | Dimensions: 35 x 327 x 15 mm

Standard rail in accordance to DIN EN 60715, width 35 mm at heights 7.5 and 15 mm, incl. fastening screws, for floor-mounting, GEOS 4050 (middle position), mounting using mounting holder in different heights not possible

Length 327 mm, Height 15 mm

Dimensions

Width 35 mm
Length 327 mm
Height 15 mm
Weight 0.224 kg

mechanical properties

Type of accessory other

Sales Information

EAN 4013902640317
Packing Unit Code C62
ETIM Class EC001285
Custom tariff number 73089098

Download Data Sheet

Download Data Sheet

Handbook

Product manual EN pdf (13 MB)
Product manual DE pdf (9 MB)

Dimensioned drawing

Dimensional drawing dxf (173 KB)
Dimensional drawing jpg (577 KB)
Dimensional drawing pdf (35 KB)
Dimensional drawing dwg (48 KB)

Certificate

UKCA Declaration EN pdf (51 KB)
CE Declaration DE pdf (129 KB)
UKCA Declaration EN pdf (50 KB)
CE Declaration PL pdf (132 KB)
CE Declaration DE/EN/FR pdf (62 KB)
CE Declaration DE/EN/PL pdf (75 KB)

CAD-Data

CAD-Data Download 3D-CAD-Data

Your request

Your information
Companydata
CAD-Format

Tender text

Similar products

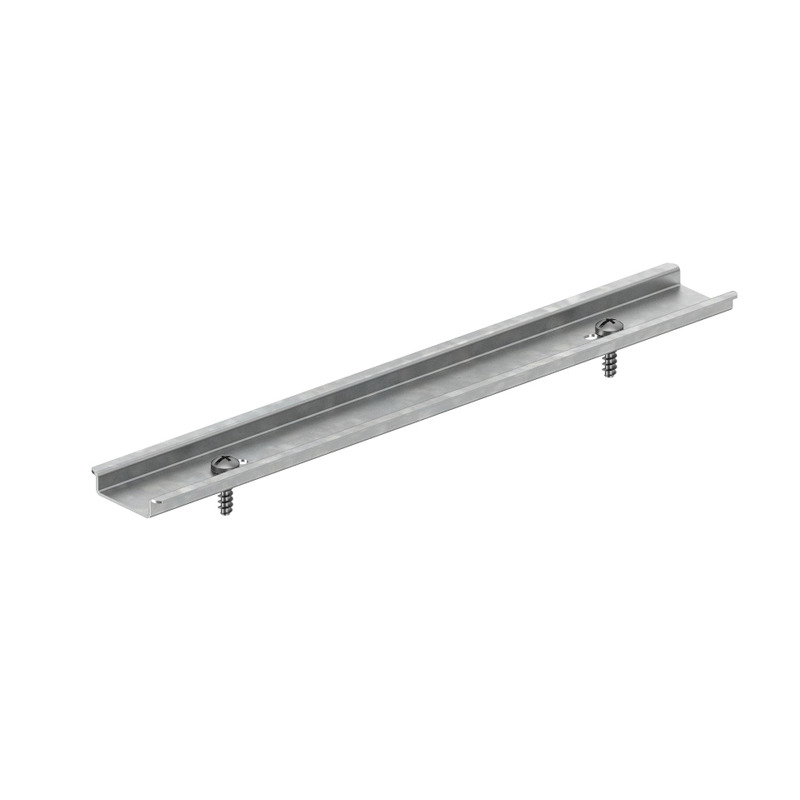

Standard rail - GEOS NS35-327

Standard rail GEOS NS35-327

  • Dimensions : 35 x 327 x 7,5 mm
  • Productnumber: 72003401

Length 327 mm, Height 7.5 mm



Standard rail in accordance to DIN EN 60715, width 35 mm at heights 7.5 and 15 mm, incl. fastening...
