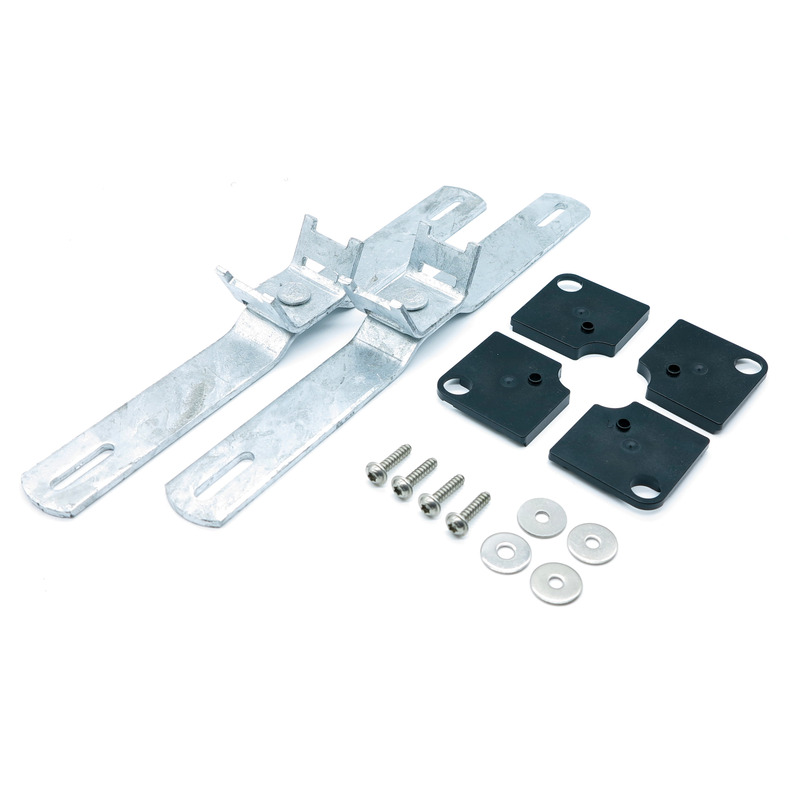

Mast clamp set

GEOS MSS-30

Productnumber: 72005001 | Dimensions: 35 x 300 x 40,5 mm

Mast clamp set made of hot-dip galvanized steel, set = 2 pieces

mounting on the 300mm enclosure side

Dimensions

Width	35 mm
Length	300 mm
Height	40.5 mm
Weight	0.815 kg

Material characteristics

Flammability class according with UL94	V0
Glow-wire flammability according to EN 60695-2-11	875 °C

Ambient conditions

Installation location	unprotected outdoor areas

Sales Information

EAN	4013902625611
Packing Unit Code	C62
ETIM Class	EC002498
Custom tariff number	85389099

Download Data Sheet

Download Data Sheet

Handbook

Product manual DE	pdf (9 MB)
Product manual EN	pdf (13 MB)

Installation instructions

Assembly instruction DE/EN/FR	pdf (60 KB)

Dimensioned drawing

Dimensional drawing	pdf (105 KB)
Dimensional drawing	dxf (922 KB)
Dimensional drawing	dwg (217 KB)
Dimensional drawing	jpg (859 KB)

Certificate

UKCA Declaration EN	pdf (50 KB)
CE Declaration DE/EN/FR	pdf (62 KB)
CE Declaration DE/EN/PL	pdf (75 KB)

Accessories

Screw clamp set SRS 60-90

Dimensions : 375 x 235 x 20 mm
Productnumber: 72004001

for mast diameters from 60 to 90mm

Screw clamp set made of stainless steel V2A, in conjunction with mast clamp set GEOS MSS, set = 2...

Watchlist

Details

Screw clamp set SRS 90-150

Dimensions : 375 x 235 x 20 mm
Productnumber: 72004101

for mast diameters from 90 to 150mm

Screw clamp set made of stainless steel V2A, in conjunction with mast clamp set GEOS MSS, set = 2...

Watchlist

Details

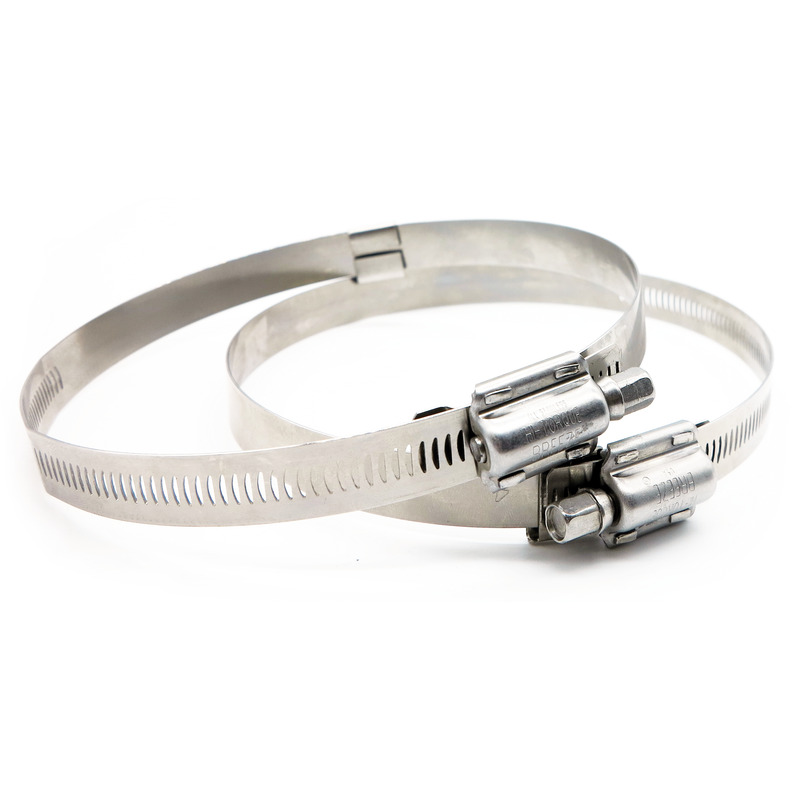

Screw clamp set SRS 150-210

Dimensions : 375 x 235 x 20 mm
Productnumber: 72004201

for mast diameters from 150 to 210mm

Screw clamp set made of stainless steel V2A, in conjunction with mast clamp set GEOS MSS, set = 2...

Watchlist

Details

Design plate GEOS DP-3040

Dimensions : 394 x 294 x 3 mm
Productnumber: 72013101

for covering the rear side of GEOS 3040 enclosure when using the GEOS...

Design plate made of V2A stainless steel, 1 piece

Watchlist

Details

Design plate GEOS DP-4050

Dimensions : 494 x 394 x 3 mm
Productnumber: 72013201

for covering the rear side of GEOS 4050 enclosure when using the GEOS...

Design plate made of V2A stainless steel, 1 piece

Watchlist

Details

CAD-Data

CAD-Data	Download 3D-CAD-Data

Tender text

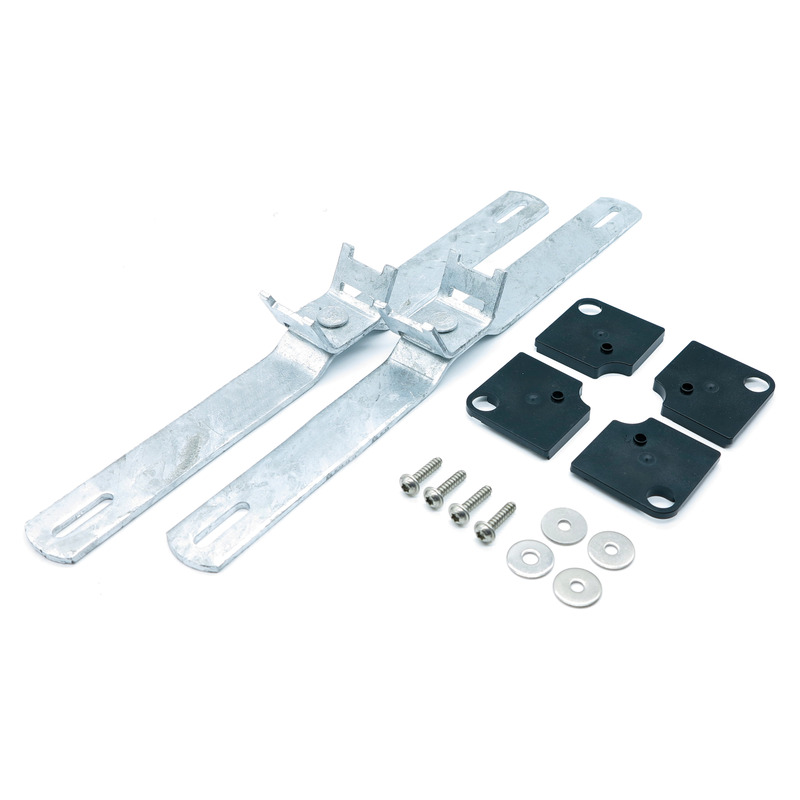

mounting on the 400mm enclosure side

Mast clamp set made of hot-dip galvanized steel, set = 2 pieces

Watchlist

Details

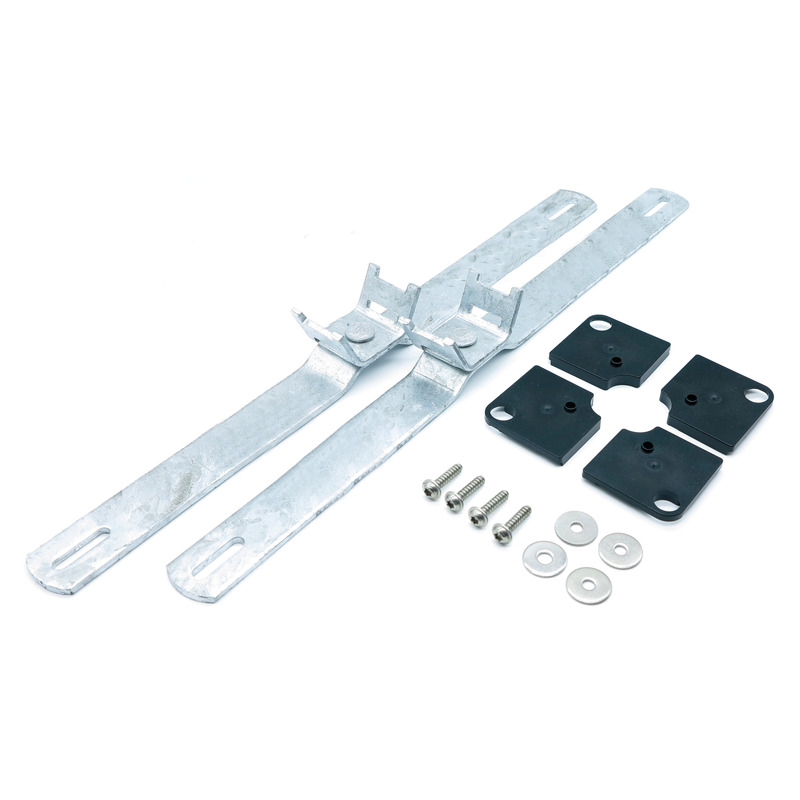

Mast clamp set GEOS MSS-50

Dimensions : 35 x 500 x 40,5 mm
Productnumber: 72005201

mounting on the 500mm enclosure side

Mast clamp set made of hot-dip galvanized steel, set = 2 pieces

Watchlist

Details
