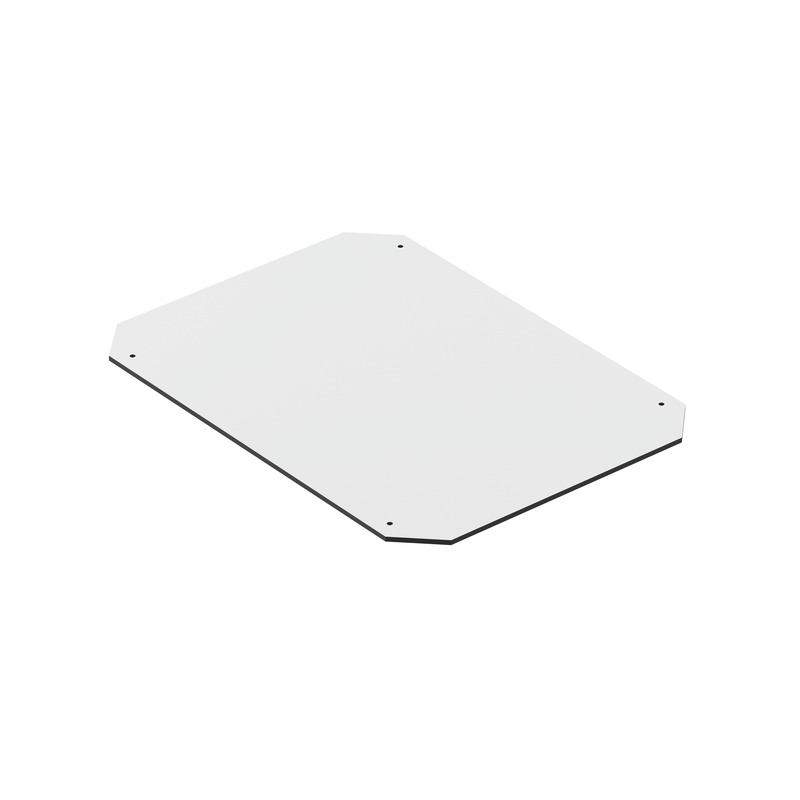

Mounting plate
Productnumber: 72101701 | Dimensions: 276 x 376 x 4 mm
Installation board made of insulating material for mounting on the inside of the cover of empty enclosures, incl. fixing screws, for individual use, e.g. for the installation of command and signalling devices, material thickness: 4 mm
for GEOS-L 3040-18 to 22
| Accessory colour | light grey |
|---|
| Width | 276 mm |
|---|---|
| Length | 376 mm |
| Height | 4 mm |
| Weight | 0.613 kg |
| Type of accessory | Cover |
|---|
| EAN | 4013902632466 |
|---|---|
| Packing Unit Code | C62 |
| ETIM Class | EC002498 |
| Custom tariff number | 39219041 |
| Accessory material | insulating material |
|---|
| CAD-Data | Download 3D-CAD-Data |
|---|
