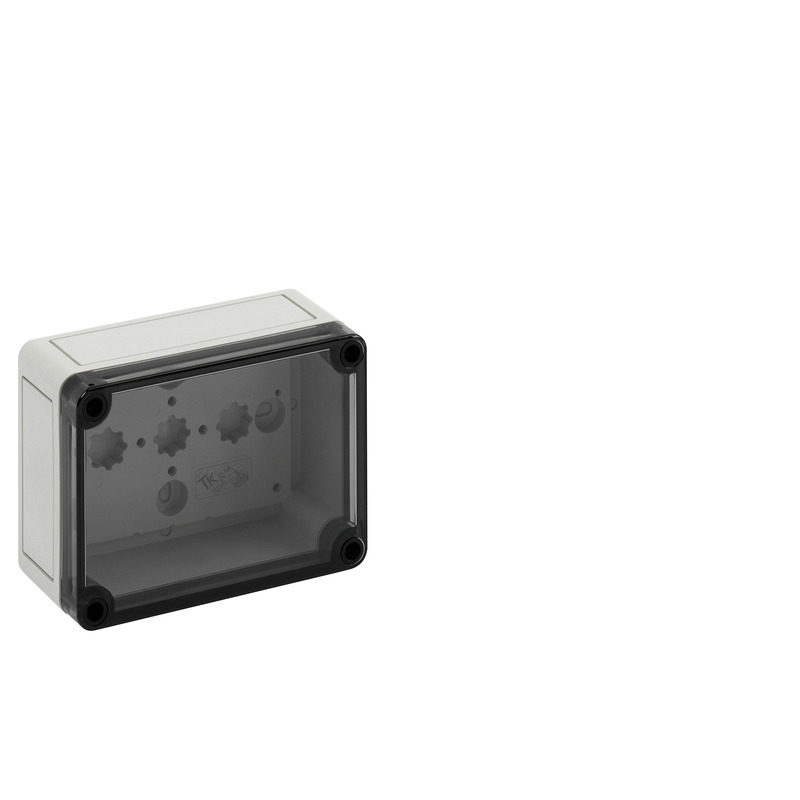

TK PS 1309-6-to

Empty enclosure

TK PS 1309-6-to

Productnumber: 11100901 | Dimensions: 130 x 94 x 57 mm

Empty enclosure, protection class IP66, Polystyrene, U_i=690V AC, U_i=1000V DC, internal fixing points, for standard indoor installations

Box: Polystyrene, grey, Lid: Polycarbonate, transparent, smooth sidewalls

To industrial product https://www.spelsberg.co.uk/p/13000901/

electrical characteristics

Rated insulation voltage AC	690 V
Rated insulation voltage DC	1000 V
Protection class	II
Type of protection	IP66
vented	no
UL Type Rating	not specified

Colours

Base unit colour	grey
Cover colour	transparent

Dimensions

Width	130 mm
Length	94 mm
Height	57 mm
Weight	0.164 kg

Material characteristics

UV-resistant	no
Halogen free	yes
Flammability class according with UL94	HB
Glow-wire flammability according to EN 60695-2-11	650 °C

mechanical properties

Type of fastening	Wall/ceiling mounting
Impact strength	IK07
Sealable	yes
Cover screw torque	1.2 Nm
Flange variant	no
Stackable	yes
Type of top part	Cover
Fastening	internal fixing points

Ambient conditions

max. relative humidity 25°C	95 %
max. relative humidity 40°C	50 %
Min. ambient temperature	-25 °C
Max. ambient temperature	40 °C
24h ambient temperature	35 °C
Installation location	Indoors

Sales Information

EAN	4013902150380
Packing Unit Code	C62
ETIM Class	EC000261
Custom tariff number	85389099

Material

Base unit material	Polystyrene
Cover material	Polycarbonate
Sealing material	Polyurethane
Cover screw material	Polyamide, glass-fibre reinforced

Download Data Sheet

Download Data Sheet

Dimensioned drawing

Dimensional drawing	dxf (540 KB)
Dimensional drawing	dwg (108 KB)
Dimensional drawing	jpg (875 KB)
Dimensional drawing	pdf (148 KB)

Certificate

CE Declaration DE/EN/FR	pdf (136 KB)
UKCA Declaration EN	pdf (165 KB)
CE Declaration DE/EN/PL	pdf (138 KB)

Accessories

new

Mast/pipe fixing set - MABF 65-1

Mast/pipe fixing set MABF 65-1

Dimensions : 38 x 65 x 15 mm
Productnumber: 89601001

for junction boxes Abox / Abox Pro from 2024 onwards of the types Abox...

Mast/pipe fixing set in stainless steel V2A with fastening screws and quick release clamp for...

Watchlist

External fixing lugs kit - TK ABL

External fixing lugs kit TK ABL

Dimensions : 100 x 30 x 20 mm
Productnumber: 19400101

Set = 4 pcs.

External fixing lugs set made of plastic, for all TK PS/PC, RK enclosures, from TK PS/PC 77

Watchlist

External hinge set - ASS-kl

External hinge set ASS-kl

Dimensions : 7,5 x 8,4 x 25 mm
Productnumber: 19000201

External hinge set small, TK PS/PC 77 bis TK PS/PC 1809

External hinge set for retrofitting the enclosure cover to hinged door, incl. 2 hinges, fixing...

Watchlist

Mounting material - HBA

Mounting material HBA

Dimensions : 12 x 12 x 15 mm
Productnumber: 19000101

Set = 4 pcs.

Manual activation attachment consisting of plastic for snapping onto the standard lid screw for TK...

Watchlist

Spacing kit - TK DST

Spacing kit TK DST

Dimensions : 8 x 8 x 8 mm
Productnumber: 19410001

grey, kit = 4 pieces

Spacer kit TK DST for creating a space between enclosure bottom and conductor or mounting plate 4...

Watchlist

Mounting plate - TK MPI-1309

Mounting plate TK MPI-1309

Dimensions : 110 x 74 x 2,5 mm
Productnumber: 19500901

TK PS / TK PC 1309

Assembly plate in melamine-clad insulating material, 2.5 mm thick, incl. fixing screws and spacers,...

Watchlist

Partition wall - TK TW-n

Partition wall TK TW-n

Dimensions : 2 x 87,8 x 49 mm
Productnumber: 19600901

for TK PS/PC 1309-6 and TK PS/PC 1809-6

Divider made of plastic, suitable for the separation of two electric circuits

Watchlist

Partition wall - TK TW-h

Partition wall TK TW-h

Dimensions : 2 x 87,8 x 73 mm
Productnumber: 19690901

for TK PS/PC 1309-8 and TK PS/PC 1809-8

Divider made of plastic, suitable for the separation of two electric circuits

Watchlist

Standard rail - TS 15-111

Standard rail TS 15-111

Dimensions : 15 x 111,0 x 5 mm
Productnumber: 19711101

for TK 1309, TK 1313, length 111 mm

Standard rail acc. to DIN EN 60715, 15 x 5, width 15 mm, incl. fixing screws

Watchlist

Standard rail - NS 35-81

Standard rail NS 35-81

Dimensions : 35 x 81,0 x 7,5 mm
Productnumber: 19808101

for TK 1111, TK 1309, TK 1313, TK 1809, TK 1811 and Abox/Abox-i 060,...

Standard rail acc. to DIN EN 60715, 35 x 7.5 mm, incl. fixing screws

Watchlist

Standard rail - NS 35-106

Standard rail NS 35-106

Dimensions : 35 x 106,0 x 7,5 mm
Productnumber: 19810601

for TK 1309, TK 1313 and Abox/Abox-i 100, length 106 mm

Standard rail acc. to DIN EN 60715, 35 x 7.5 mm, incl. fixing screws

Watchlist

new

Fastening parts kit - KTB 1

Fastening parts kit KTB 1

Dimensions : 17 x 30 x 14 mm
Productnumber: 89600901

Fixing element for mounting of enclosures on cable tray systems with elongated hole width of 7 mm...

Watchlist

CAD-Data

CAD-Data	Download 3D-CAD-Data

Tender text

Log in to mySpelsberg to download tender texts. mySpelsberg Login

Similar products

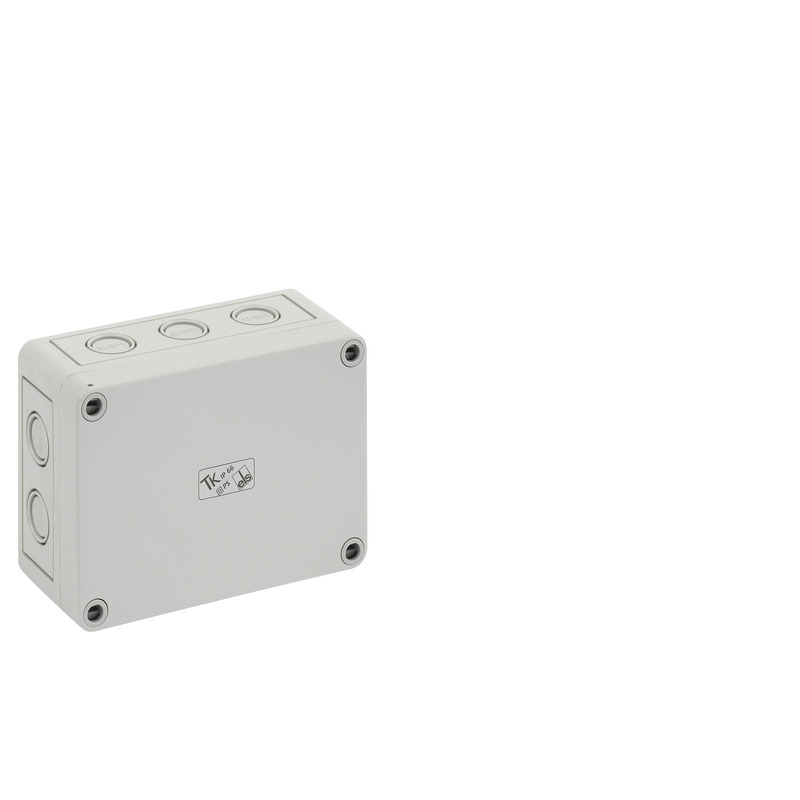

Empty enclosure - TK PS 1309-6-m

Empty enclosure TK PS 1309-6-m

Dimensions : 130 x 94 x 57 mm
Productnumber: 10540901

Box: Polystyrene, grey, Lid: Polystyrene, grey, knockouts, M16/M20,...

Empty enclosure, protection class IP66, Polystyrene, U_i=690V AC, U_i=1000V DC, internal fixing...

Watchlist

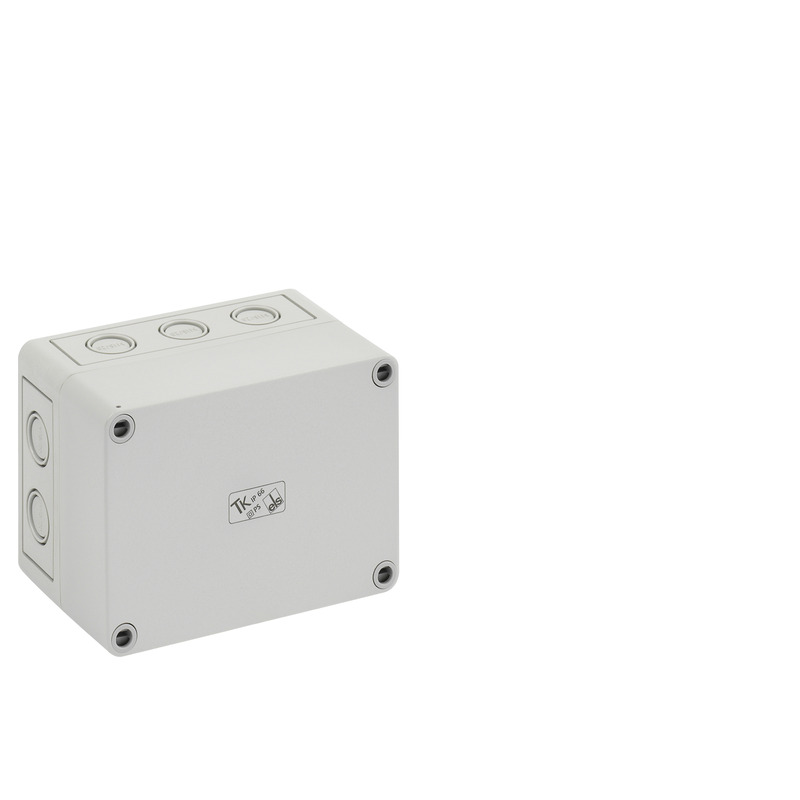

Empty enclosure - TK PS 1309-8-m

Empty enclosure TK PS 1309-8-m

Dimensions : 130 x 94 x 81 mm
Productnumber: 10590901

Box: Polystyrene, grey, Lid: Polystyrene, grey, knockouts, M16/M20,...

Empty enclosure, protection class IP66, Polystyrene, U_i=690V AC, U_i=1000V DC, internal fixing...

Watchlist

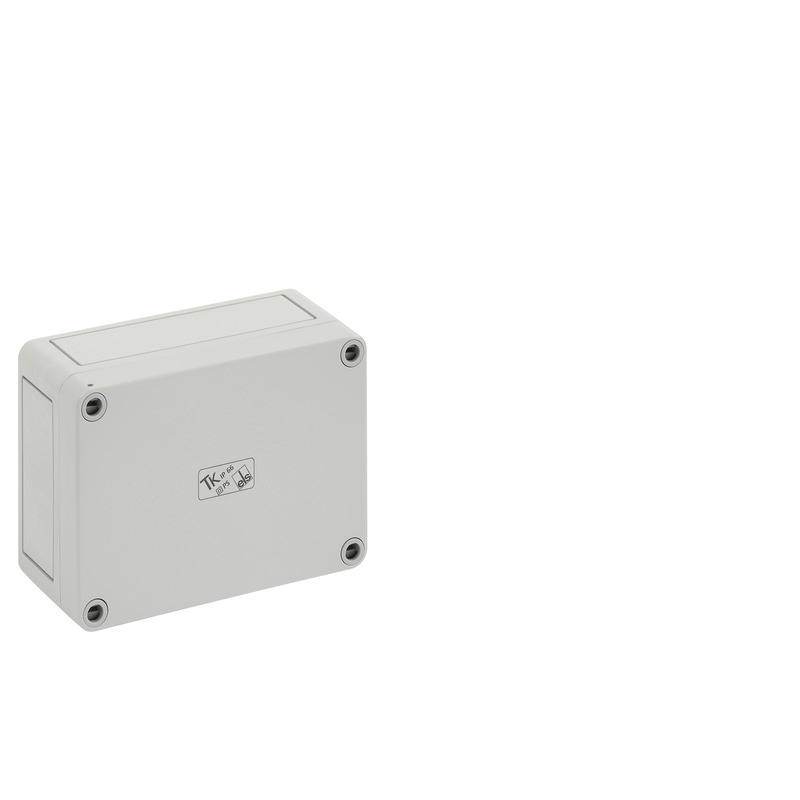

Empty enclosure - TK PS 1309-6-o

Empty enclosure TK PS 1309-6-o

Dimensions : 130 x 94 x 57 mm
Productnumber: 11040901

Box: Polystyrene, grey, Lid: Polystyrene, grey, smooth sidewalls

Empty enclosure, protection class IP66, Polystyrene, U_i=690V AC, U_i=1000V DC, internal fixing...

Watchlist

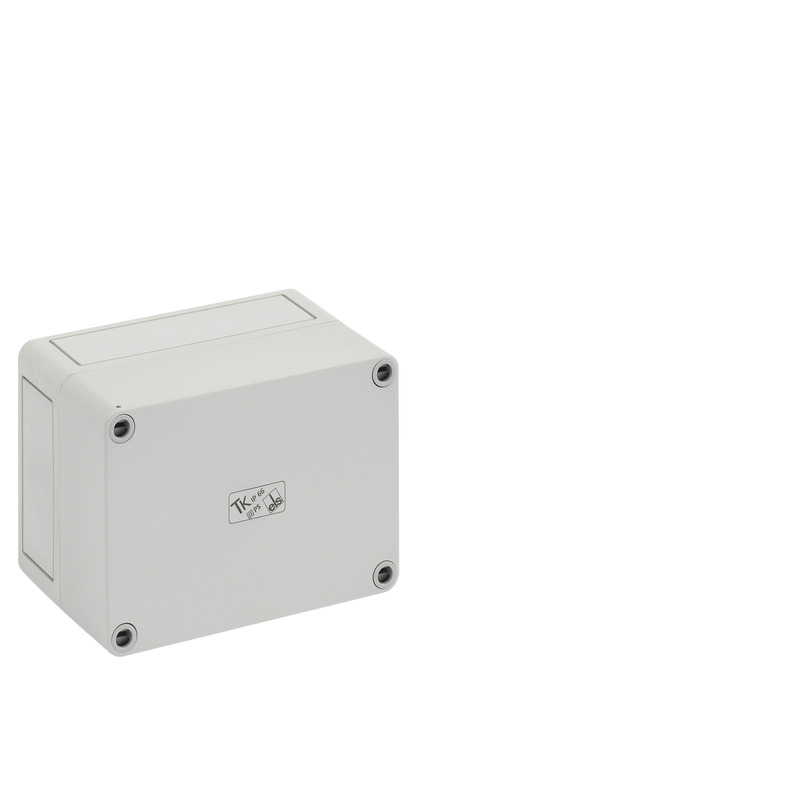

Empty enclosure - TK PS 1309-8-o

Empty enclosure TK PS 1309-8-o

Dimensions : 130 x 94 x 81 mm
Productnumber: 11090901

Box: Polystyrene, grey, Lid: Polystyrene, grey, smooth sidewalls

Empty enclosure, protection class IP66, Polystyrene, U_i=690V AC, U_i=1000V DC, internal fixing...

Watchlist

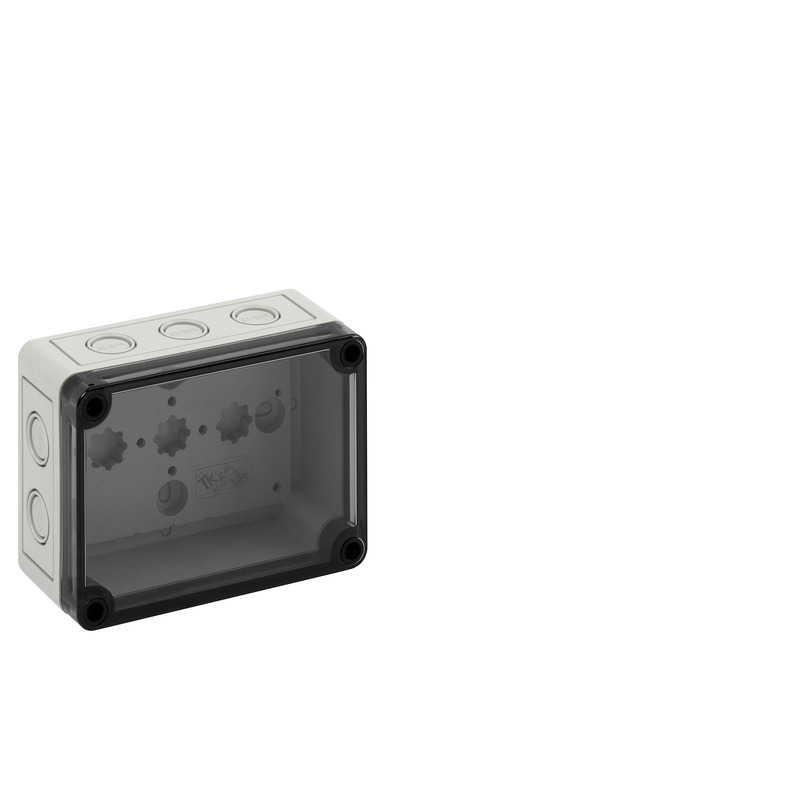

Empty enclosure - TK PS 1309-6-tm

Empty enclosure TK PS 1309-6-tm

Dimensions : 130 x 94 x 57 mm
Productnumber: 10600901

Box: Polystyrene, grey, Lid: Polycarbonate, transparent, knockouts,...

Empty enclosure, protection class IP66, Polystyrene, U_i=690V AC, U_i=1000V DC, internal fixing...

Watchlist

Empty enclosure - TK PS 1309-8-tm

Empty enclosure TK PS 1309-8-tm

Dimensions : 130 x 94 x 81 mm
Productnumber: 10650901

Box: Polystyrene, grey, Lid: Polycarbonate, transparent, knockouts,...

Empty enclosure, protection class IP66, Polystyrene, U_i=690V AC, U_i=1000V DC, internal fixing...

Watchlist

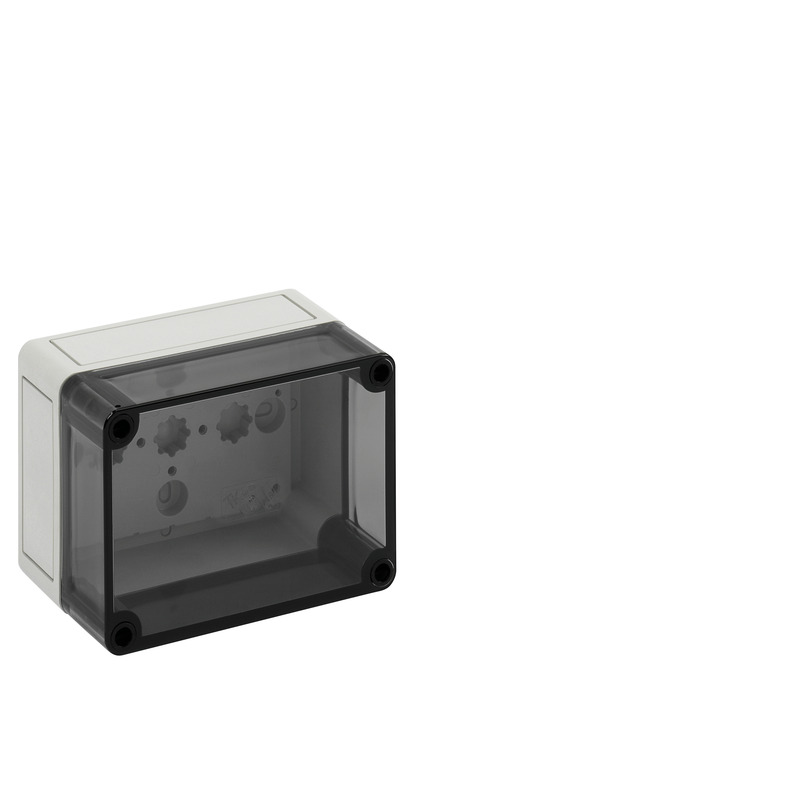

Empty enclosure - TK PS 1309-8-to
