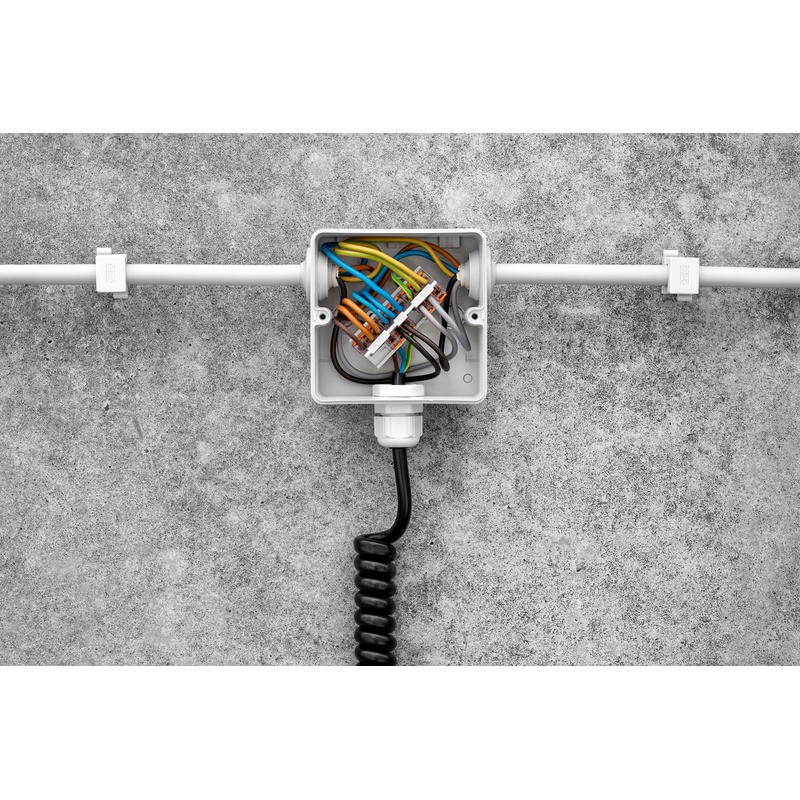

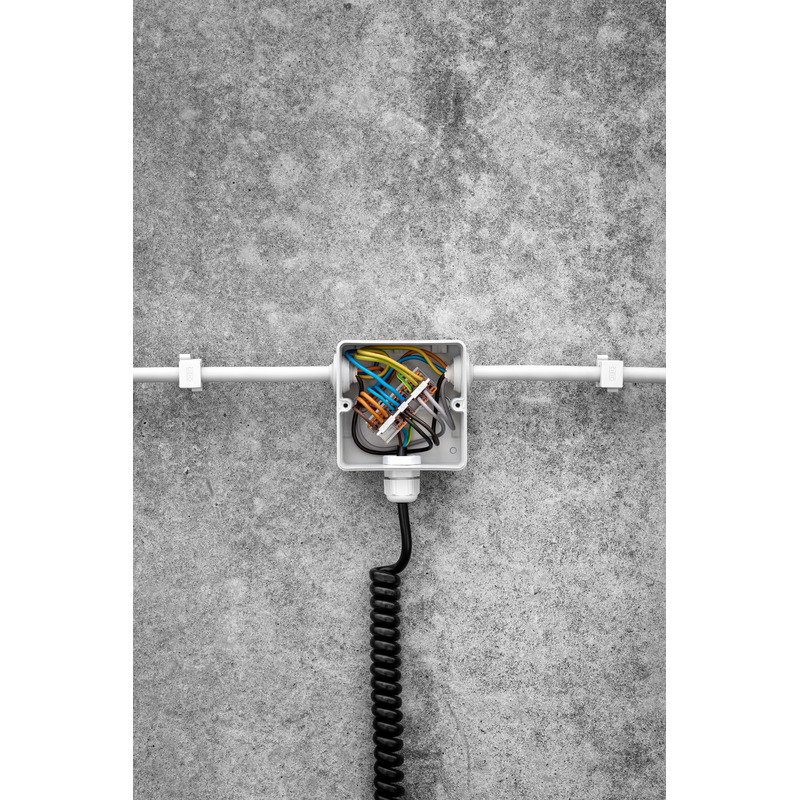

Terminal holder for WAGO terminals, series 221-41X
suitable for all junction boxes Abox / Abox -i 025/040 and Abox m / Abox-i m 025/040
Terminal holder
Abox 025/040 KLH-SL 0,2/4²
Productnumber: 84000201 | Dimensions: 56,4 x 23 x 28,5 mm
electrical characteristics
| Connection 1: Suitable for Cu conductors | 1 |
|---|
Dimensions
| Width | 56.4 mm |
|---|---|
| Length | 23 mm |
| Height | 28.5 mm |
| Weight | 0.0279 kg |
Material characteristics
| Flammability class according with UL94 | V2 |
|---|---|
| Glow-wire flammability according to EN 60695-2-11 | 960 °C |
mechanical properties
| Connection 1: Tightening moment | 2.5 Nm |
|---|
Sales Information
| EAN | 4013902651771 |
|---|---|
| Packing Unit Code | C62 |
| ETIM Class | EC002848 |
| Custom tariff number | 39269097 |
Material
| Insulating body material | Thermoplastic |
|---|
CAD-Data
| CAD-Data | Download 3D-CAD-Data |
|---|
