Junction box
Productnumber: 48042501 | Dimensions: 250 x 250 x 115 mm

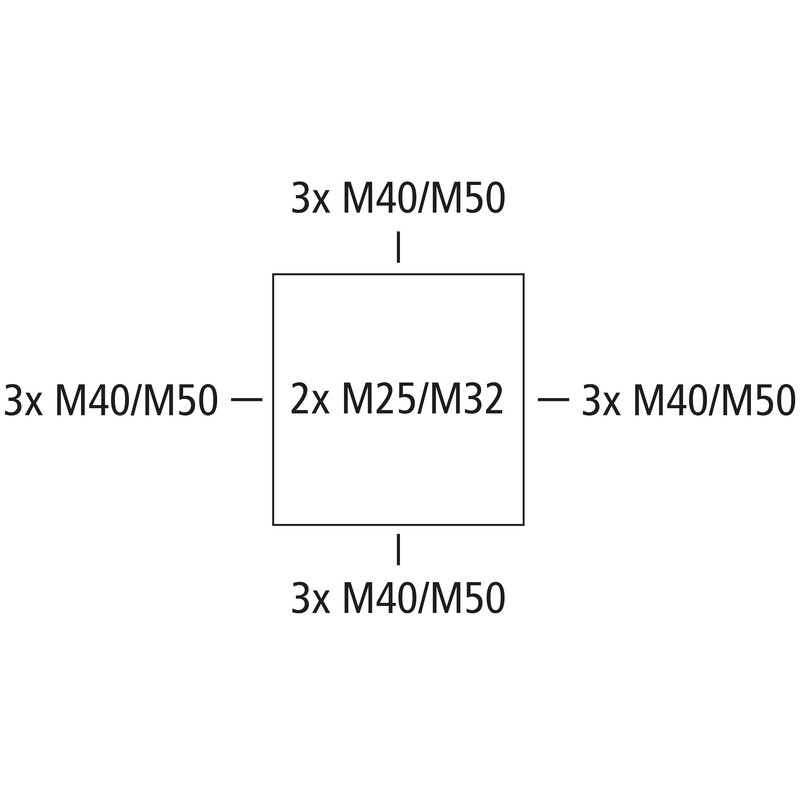

Junction box, protection class IP54/IP65, nominal cross-section 25 mm², Ui=690 V AC, knockouts, M20/M25/M32/M40/M50, (4 rear, 10 side), internal fixing points, with main line junction terminal for standard installations indoors
grey, with screw terminal 4-pole - 25 mm²

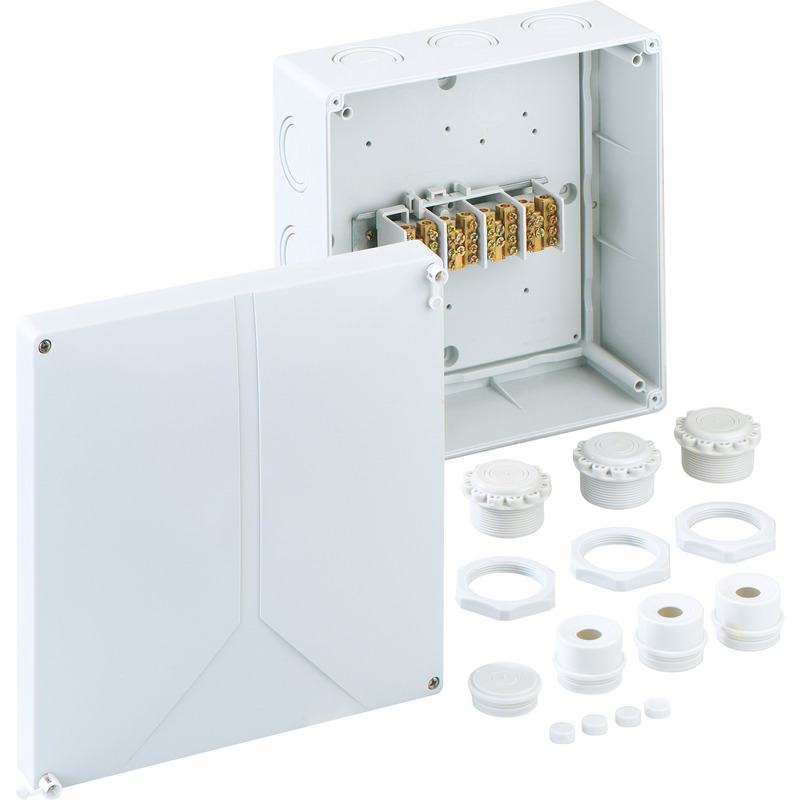

Accessories supplied:
3 attachment bushes IP54 M40 sealing range 17 - 30 mm, 1 sealing plug M40, 3 twist plugs with locknuts IP54 M50 sealing range 13 - 35 mm
| Rated insulation voltage AC | 690 V |
|---|---|
| Max. conductor cross section | 25 mm² |
| Protection class | II |
| Type of protection | IP54/IP65 |
| UL Type Rating | not specified |
| Base unit colour | grey |
|---|---|
| Cover colour | grey |
| Width | 250 mm |
|---|---|
| Length | 250 mm |
| Height | 115 mm |
| Weight | 1.375 kg |
| UV-resistant | no |
|---|---|
| Halogen free | yes |
| Flammability class according with UL94 | HB |
| Glow-wire flammability according to EN 60695-2-11 | 650 °C |
| Type of fastening | Wall/ceiling mounting |
|---|---|
| Impact strength | IK07 |
| Sealable | no |
| Fastening | internal fixing points |
| max. relative humidity 25°C | 95 % |
|---|---|
| max. relative humidity 40°C | 50 % |
| Min. ambient temperature | -25 °C |
| Max. ambient temperature | 40 °C |
| 24h ambient temperature | 35 °C |
| Installation location | Indoors |
| EAN | 4013902153527 |
|---|---|
| Packing Unit Code | C62 |
| ETIM Class | EC002600 |
| Custom tariff number | 85369095 |
| Base unit material | Polystyrene |
|---|---|
| Cover material | Polystyrene |
| Cover screw material | Stainless steel V2A |
| CAD-Data | Download 3D-CAD-Data |
|---|
