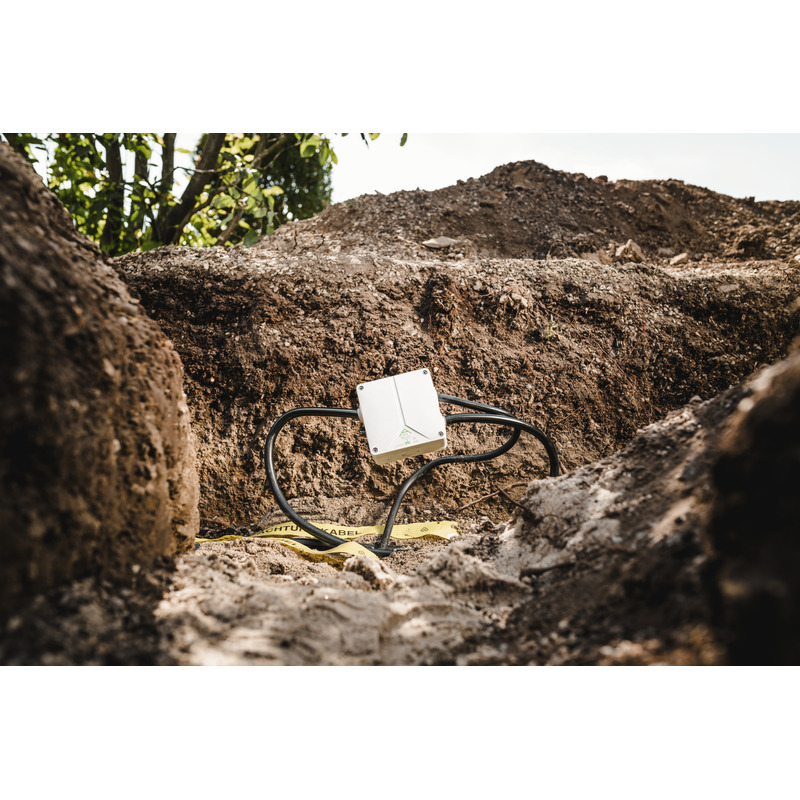

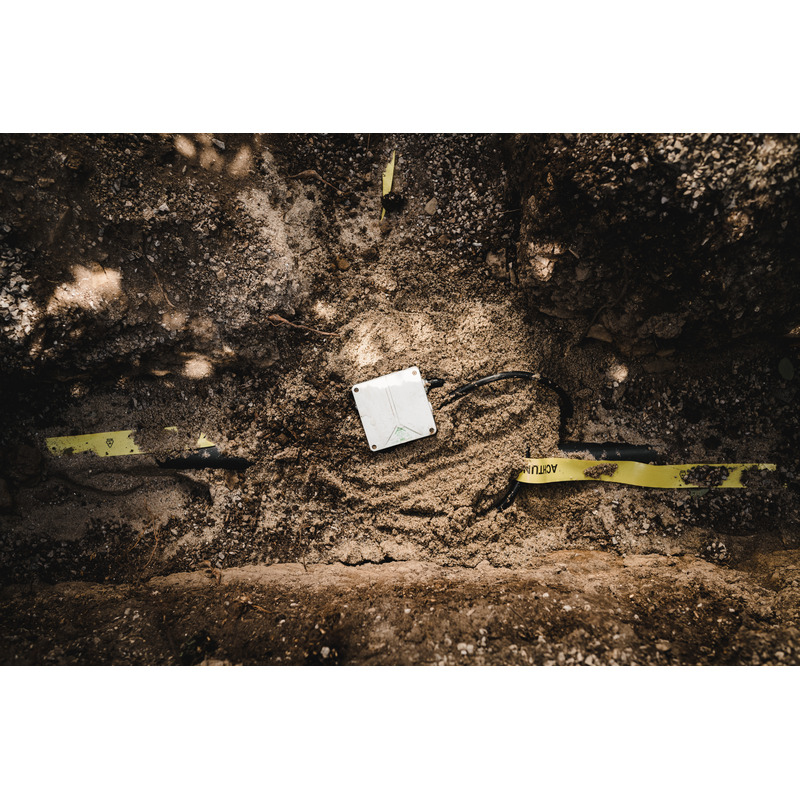

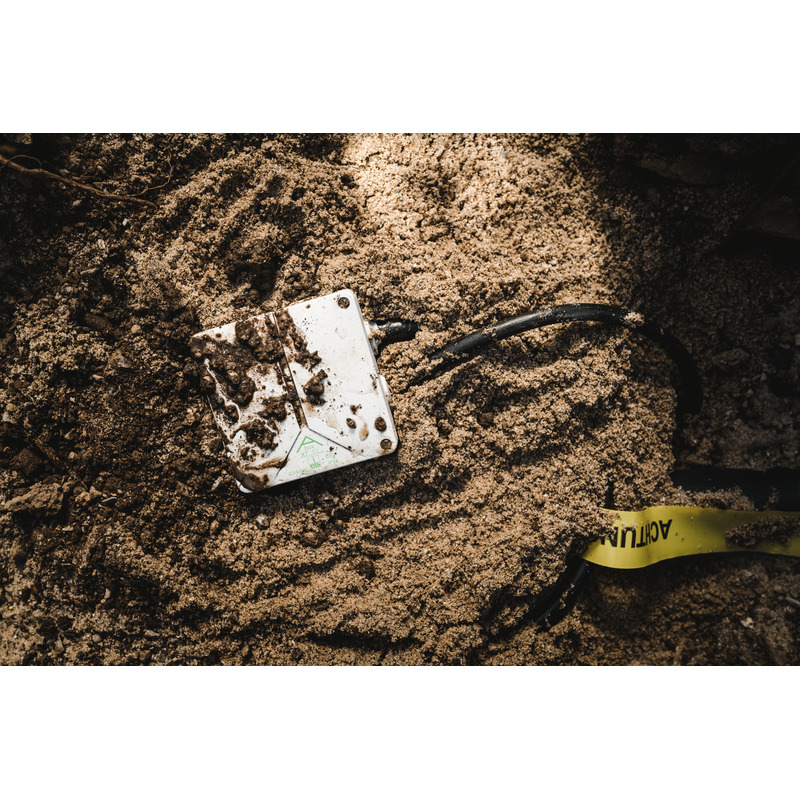

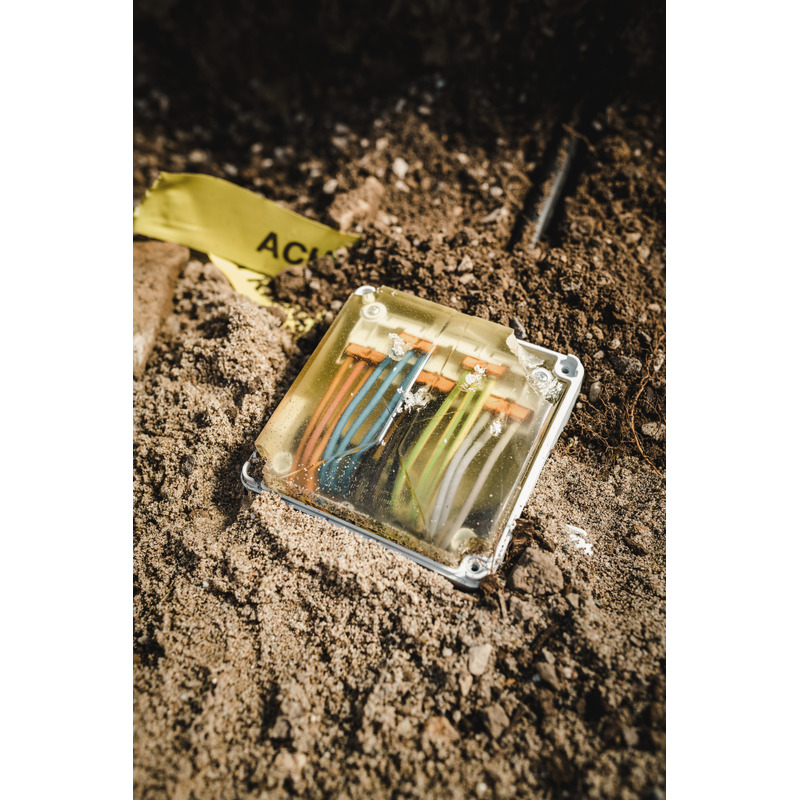

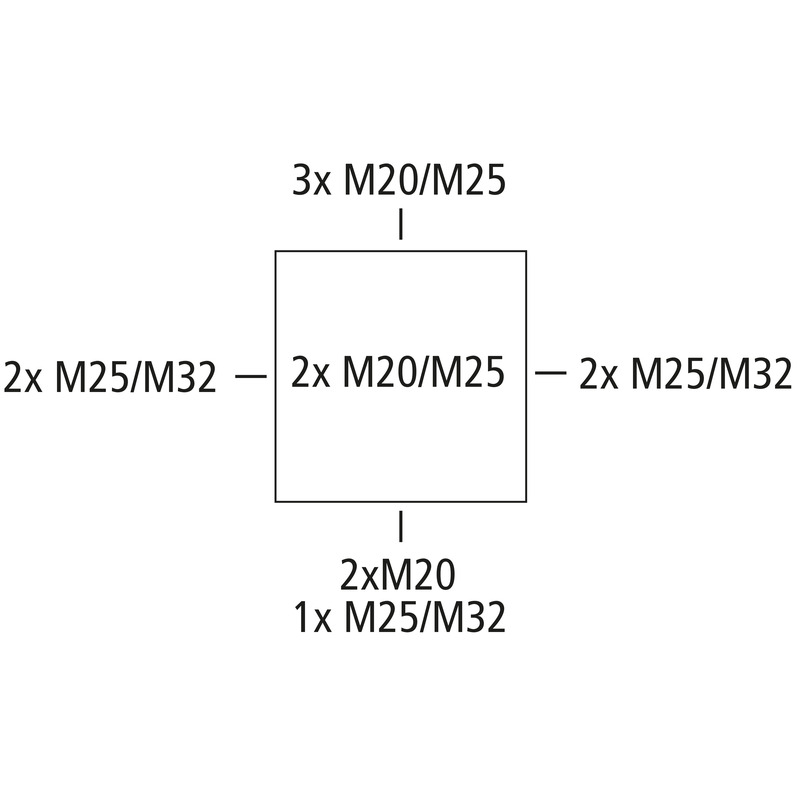

Junction box, protection class IP68, nominal cross-section 6 mm², Ui=450 V AC, certified by VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22) & DIN VDE V 0606-22-100), knockouts, M20/M25/M32, (2 rear, 10 side), internal fixing points, with screwless terminals for encapsulation, for assembly in flooded areas and in the ground without traffic loads,

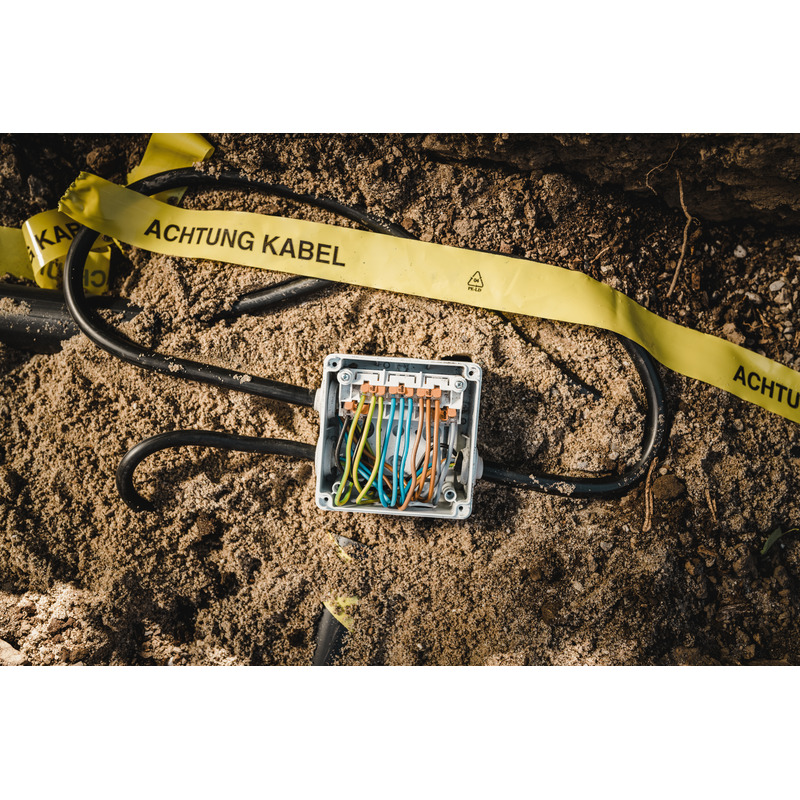

grey, with 5 raised, screwless 3-wire terminals, Wago 221-613 type, max. nominal cross-section according to DIN EN 60998: 6 mm², cross-sections able to be clamped per pole: 3 x 0.2 to 6 mm² rigid/flexible

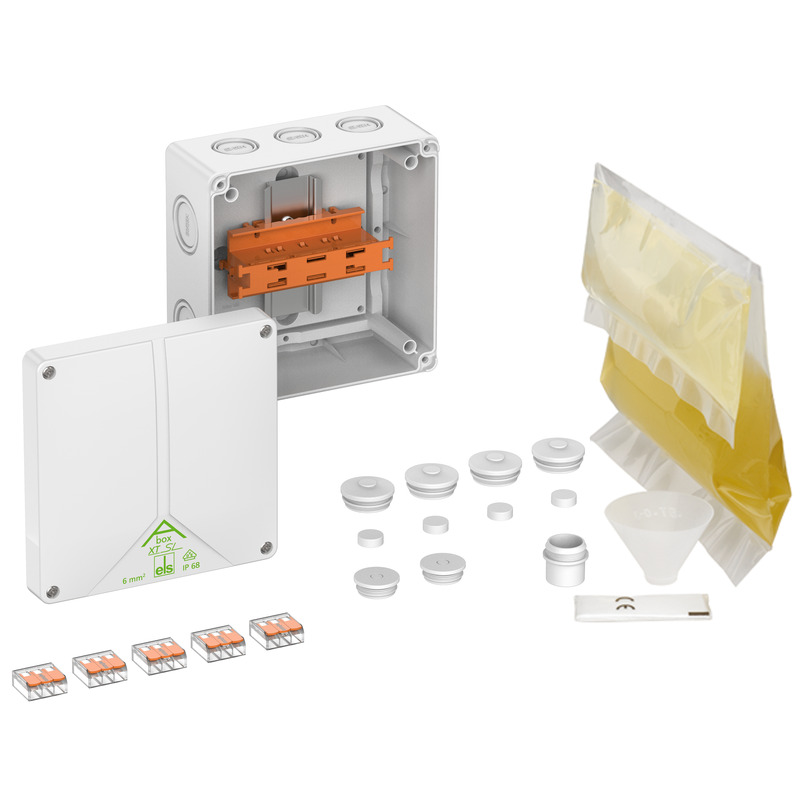

Accessories supplied:

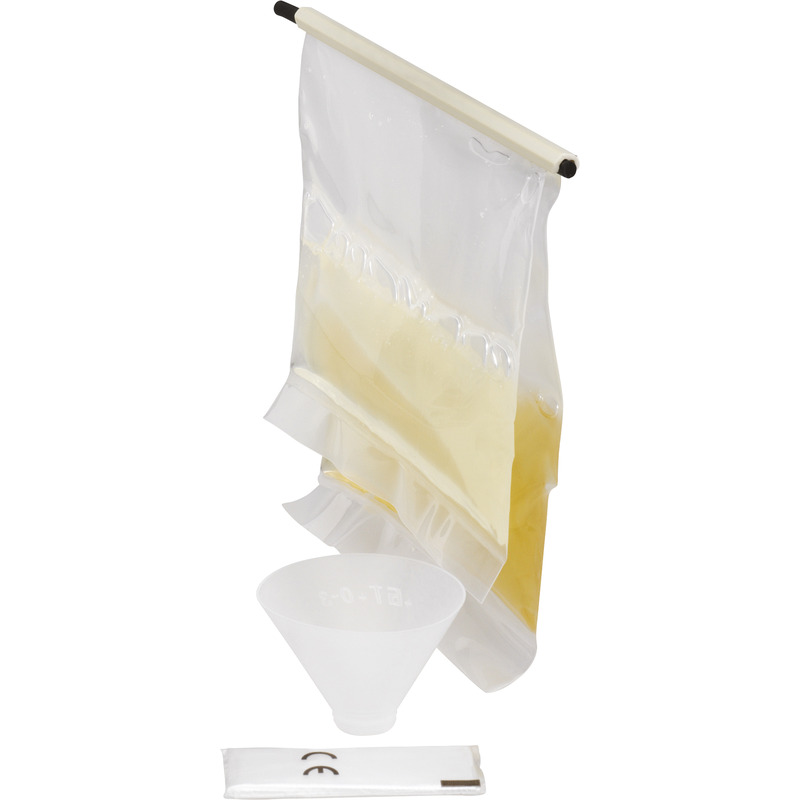

4 double membrane seals IP66 M32 sealing range 14 - 21 mm, 2 sealing plugs M20, 1 attachment bush M20, 1 cast resin bag GHB4 with filling funnel
